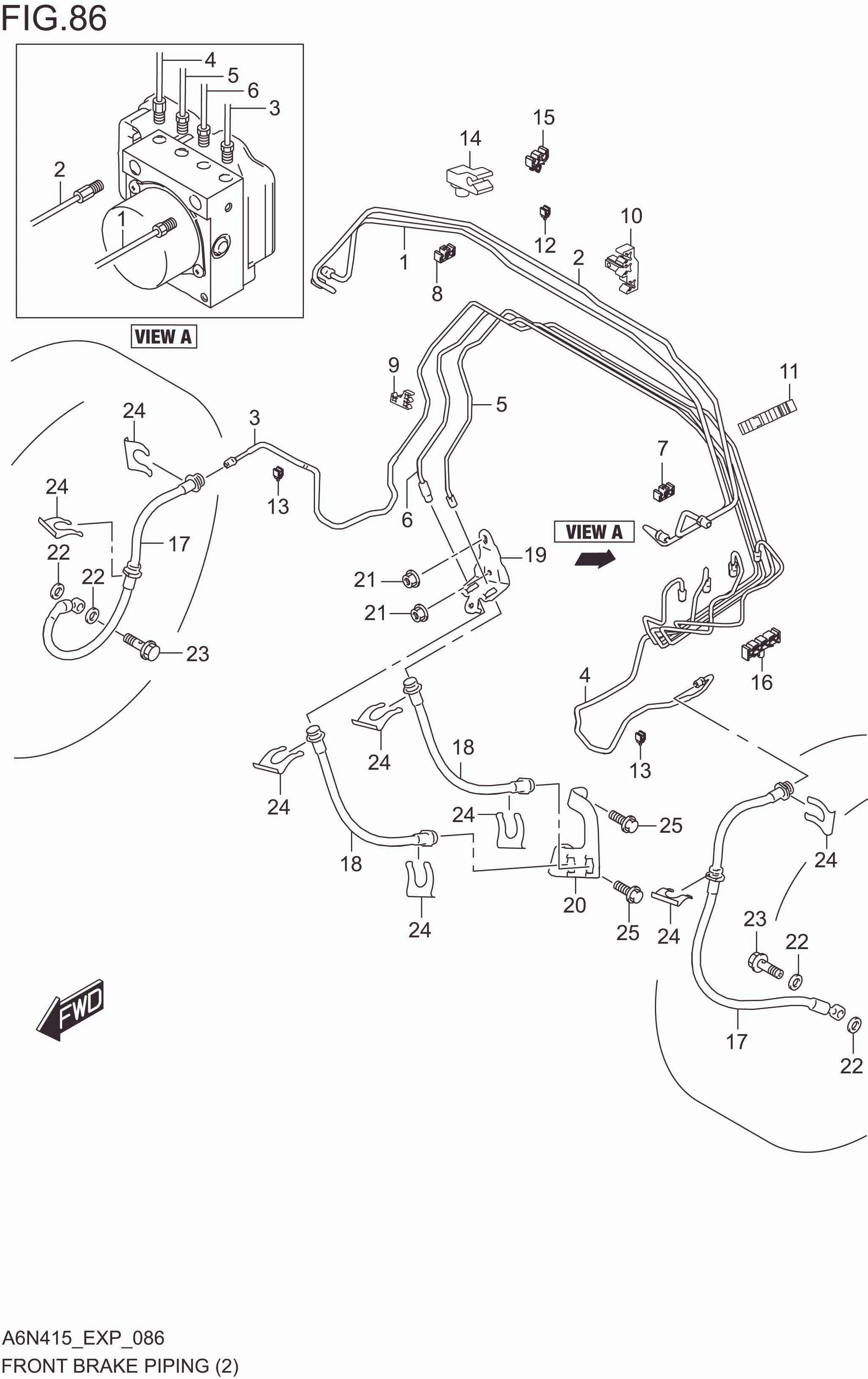

FIG. 086 FRONT BRAKE PIPING (RHD)

FIG. 086 FRONT BRAKE PIPING (RHD)
No No. Part Description Qty Price Per Pcs Remarks
1 51410M80T00-000 PIPE,MA PRI TO HU 1 Rp132.000
2 51420M80T00-000 PIPE,MA SEC TO HU 1 Rp132.000
3 51430M80T00-000 PIPE,HU TO FR BK HOSE RH 1 Rp150.000
4 51440M80T00-000 PIPE,HU TO FR BK HOSE LH 1 Rp91.500
5 51450M80T00-000 PIPE,HU TO HOSE RR RH 1 Rp130.500
6 51460M80T00-000 PIPE,HU TO HOSE RR LH 1 Rp156.500
7 51751M79M00-000 CLAMP,BK PIPE HU DOUBLE 1 Rp15.000
8 51751M80T00-000 CLAMP,BK PIPE DASH DOUBLE 1 Rp11.500
9 51751M80T10-000 CLAMP,BK PIPE DASH TRIPLE 1 Rp15.500
10 51751M80T20-000 CLAMP,BK PIPE DASH TRIPLE 1 Rp13.500
11 51751M80T30-000 CLAMP,BK PIPE DASH 5 1 Rp22.500
12 51761M60M20-000 CLAMP,BK PIPE FRAME SINGLE 1 Rp5.500
13 51761M78R01-000 CLAMP,BK PIPE FENDER 3 Rp3.000
14 51761M73T10-000 CLAMP,BK PIPE FRAME SINGLE 1 Rp4.500
15 51761M73T20-000 CLAMP,BK PIPE FRAME DOUBLE 1 Rp3.500
16 51761M80T00-000 CLAMP,BK PIPE DASH 4 1 Rp4.000
17 51540M80T00-000 HOSE,FR BRAKE FLEXIBLE 2 Rp243.500
18 51580M73T00-000 HOSE,BODY TO FRAME FLEX 2 Rp100.000
19 51710M73T00-000 BRACKET,HOSE BODY DASH 1 Rp22.000
20 51712M73T00-000 BRACKET,HOSE BODY FRAME 1 Rp29.500
21 09159M06123-000 NUT (M6) 2 Rp1.500
22 51562M55K00-000 WASHER (10X15X1.5) 4 Rp8.500
23 51561M55K00-000 BOLT,FR DISC FLEXIBLE HOSE 2 Rp8.500
24 09383M13005-000 E-RING 8 Rp7.000
25 02162-0616A-000 SCREW (6X16) 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
