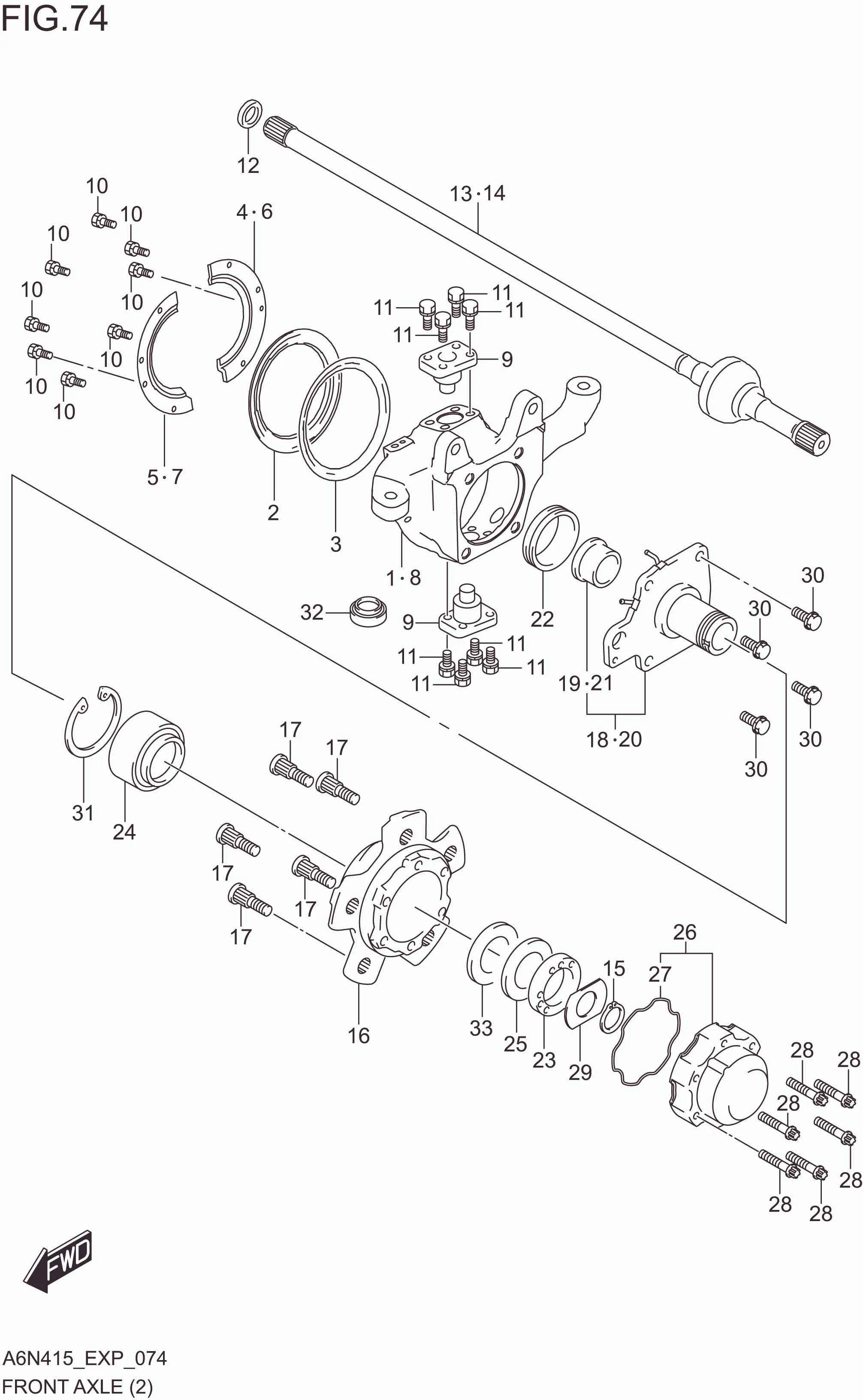

FIG. 074 FRONT AXLE(RHD)

FIG. 074 FRONT AXLE(RHD)
No No. Part Description Qty Price Per Pcs Remarks
1 45111M80T00-000 KNUCKLE,STEERING,RH 1 Rp1.099.000
2 45121-81A03-000 SEAL,KNUCKLE 2 Rp402.500
3 45122-81A01-000 RETAINER,KNUCKLE SEAL 2 Rp297.000
4 45123-77R00-000 COVER,KNUCKLE SEAL,RH 1 Rp190.000
5 45123-77R50-000 COVER,KNUCKLE SEAL,LH 1 Rp190.000
6 45123-77R50-000 COVER,KNUCKLE SEAL 1 Rp190.000
7 45123-77R00-000 COVER,KNUCKLE SEAL 1 Rp190.000
8 45151M80T00-000 KNUCKLE,STEERING,LH 1 Rp1.099.000
9 45610M80T00-000 PIN ASSY,KING 4 Rp235.000
10 45626-81A00-000 BOLT,KNUCKLE SEAL 16 Rp43.000
11 09117-08050-000 BOLT,KINGPIN 16 Rp17.500
12 43491M80T10-000 SEAL,FR AXLE SHAFT OIL 2 Rp50.500
13 44101M80T00-000 JOINT ASSY,FR AXLE SHAFT,RH 1 Rp2.985.500
14 44102M80T00-000 JOINT ASSY,FR AXLE SHAFT,LH 1 Rp2.985.500
15 44111M80T00-000 CIRCLIP,FR AXLE SHAFT 2 Rp4.500
16 43421M80T00-000 HUB,FRONT WHEEL 2 Rp546.500
17 43423M62S00-000 BOLT 10 Rp19.000
18 43440M80T00-000 SPINDLE,FR WHEEL,RH 1 Rp607.500
19 43445-60A01-000 .BUSHING,FR SPINDLE 1 Rp121.500
20 43440M80T10-000 SPINDLE,FR WHEEL,LH 1 Rp607.500
21 43445-60A01-000 .BUSHING,FR SPINDLE 1 Rp121.500
22 43446M80T00-000 SEAL,FR WHEEL SPINDLE 2 Rp60.500
23 43461-82CB0-000 NUT,FR WHEEL BEARING LOCK 2 Rp584.000
24 43462-80T00-000 BEARING,FR WHEEL 2 Rp993.500
25 43465-60A00-000 WASHER,FR WHEEL BEARING 2 Rp23.000
26 43810-76J02-000 HUB ASSY,AIR LOCKING 2 Rp4.771.500
27 43838-82CB1-000 .GASKET,AIR LOCKING HUB 2 Rp231.500
28 43811M80T00-000 BOLT,AIR LOCKING HUB 12 Rp14.500
29 44182-82CB0-000 WASHER,FR SPINDLE THRUST 2 Rp48.500
30 09117-10057-000 BOLT (10X25) 8 Rp32.500
31 46861M60G00-000 CIRCLIP 2 Rp16.500
32 45630M80T00-000 BEARING,KINGPIN 1 Rp233.000
33 43431M80T00-000 SEAL,FR WHEEL BRG 2 Rp82.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
