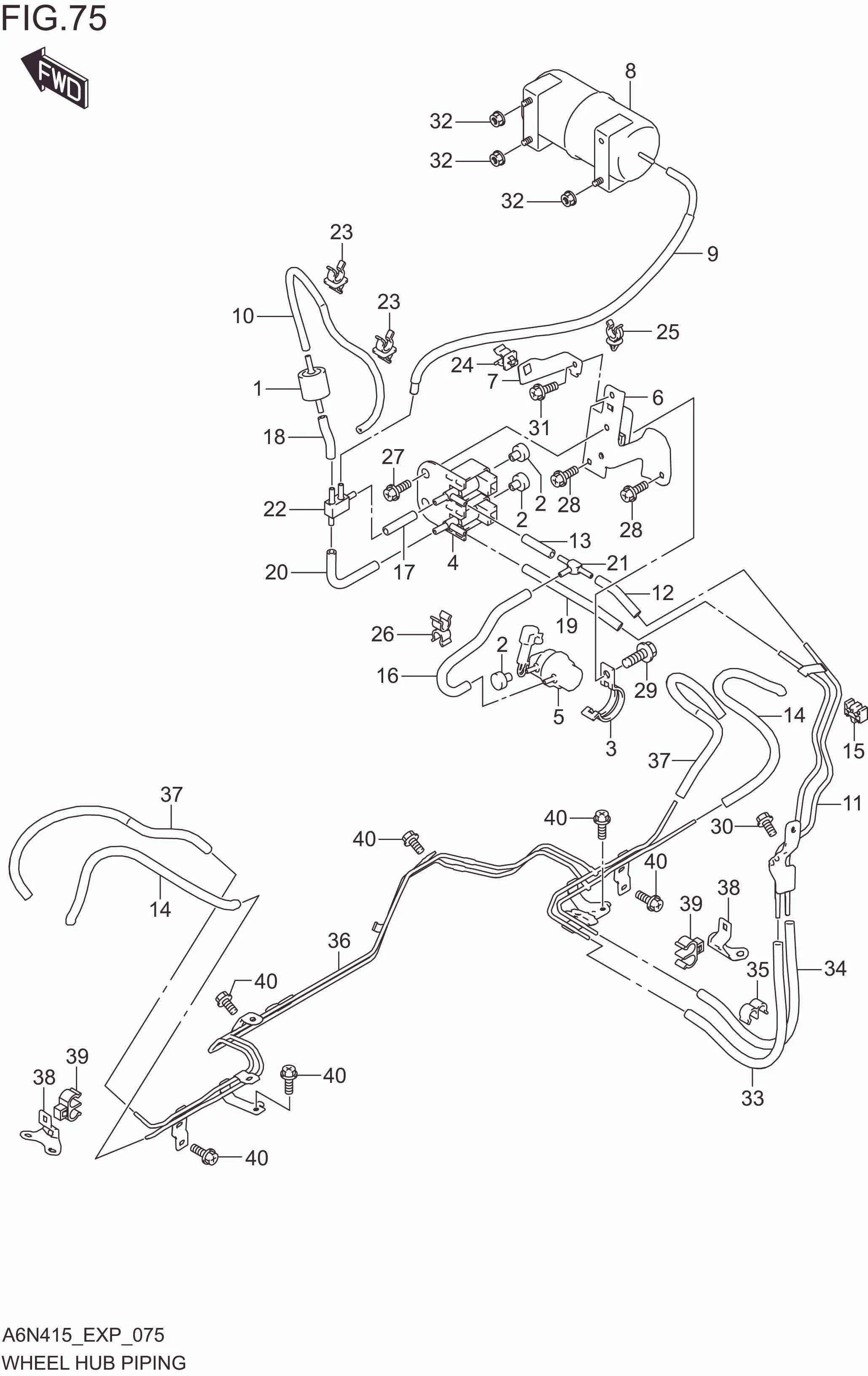

FIG. 075 WHEEL HUB PIPING

FIG. 075 WHEEL HUB PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 18131-82150-000 VALVE,CHECK 1 Rp156.500
2 18133-80401-000 FILTER 3 Rp97.500
3 43820M80T00-000 CLAMP 1 Rp11.500
4 27951-85600-000 VALVE,VACUUM SWITCH 1 Rp1.656.500
5 43830-78R00-000 SWITCH,VACUUM 1 Rp1.047.000
6 43840-77R00-000 BRACKET,VSV 1 Rp217.000
7 43843-77R00-000 BRACKET,CHECK VALVE 1 Rp93.000
8 43850-81A00-000 TANK,VACUUM ACCUMLATION 1 Rp1.224.000
9 43856M80T00-000 HOSE,VACUUM TANK 1 Rp52.000
10 43860M80T00-000 HOSE,VACUUM OUTLET 1 Rp22.000
11 43870-77R00-000 PIPE,VALVE TO AXLE VACUUM 1 Rp699.500
12 43876M81A00-000 HOSE,VSV 4WD OUTLET NO.2 1 Rp6.500
13 43878M82CB0-000 HOSE,VSV 4WD OUTLET NO.1 1 Rp6.000
14 43926M80T50-000 HOSE,SPINDLE VACUUM 2WD 2 Rp30.500
15 51761-70F00-000 CLAMP,BK PIPE SIDE MEMBER 1 Rp33.500
16 09355M35008-140 HOSE,VACUUM SWITCH 1 Rp8.000
17 09355M35008-040 HOSE,VSV 4WD 1 Rp4.500
18 09355M35008-050 HOSE,CHECK VALVE 1 Rp5.000
19 09355M35008-060 HOSE,VSV 2WD OUTLET 1 Rp5.500
20 09355M35008-080 HOSE,VSV 2WD 1 Rp6.500
21 09367-04002-000 JOINT,VACUUM SWITCH 3 WAY 1 Rp29.500
22 09367M04013-000 JOINT,A/L HUB 4 WAY 1 Rp8.500
23 43930M80T00-000 CLAMP,VACUUM OUTLET HOSE 2 Rp2.500
24 09403-07407-000 CLAMP 1 Rp18.000
25 43931M80T00-000 CLAMP 1 Rp2.500
26 43932M80T00-000 CLIP 1 Rp2.500
27 02162-0612A-000 BOLT 1 Rp11.000
28 02162-0612A-000 BOLT 2 Rp11.000
29 02162-0612A-000 BOLT 1 Rp11.000
30 02162-0612A-000 BOLT 1 Rp11.000
31 02162-0612A-000 BOLT 1 Rp11.000
32 08316-1006A-000 NUT,VACUUM TANK 3 Rp2.000
33 43885M80T00-000 HOSE,VALVE TO AXLE VACUUM 4WD 1 Rp39.500
34 43885M80T10-000 HOSE,VALVE TO AXLE VACUUM 2WD 1 Rp39.500
35 43933M80T00-000 CLAMP (ID:7.2X2) 1 Rp2.500
36 43910M78R10-000 PIPE,FR AXLE HOUSING 1 Rp1.781.000
37 43926M80T00-000 HOSE,SPINDLE VACUUM 4WD 2 Rp45.500
38 45616M80T00-000 BRACKET,KINGPIN HOSE 2 Rp7.000
39 09403M07L03-000 CLAMP 2 Rp11.500
40 02162-0616A-000 SCREW (6X16) 6 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
