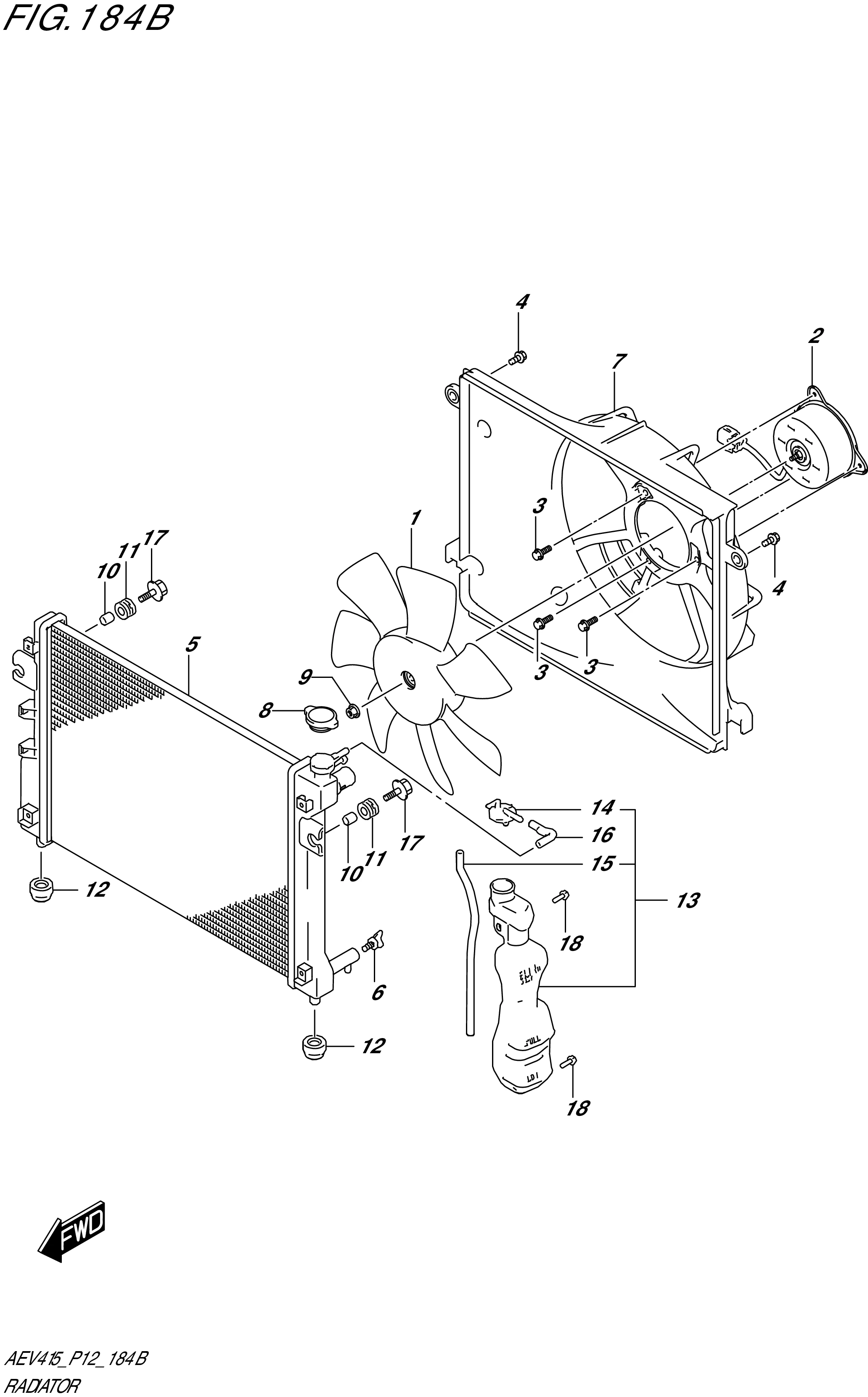

FIG. 184B RADIATOR (W_MN_AC)

FIG. 184B RADIATOR (W_MN_AC)
No No. Part Description Qty Price Per Pcs Remarks
1 17111-52S10-000 FAN ASSY 1 Rp214.500
2 17120-52S10-000 MOTOR ASSY,COOLING FAN 1 Rp1.084.000
3 17129-56F00-000 SCREW,FAN MOTOR (5X11) 3 Rp24.000
4 17141-67R00-000 BOLT 2 Rp24.000
5 17700-52S10-000 RADIATOR ASSY 1 Rp1.214.000
6 17751-52S00-000 COCK ASSY,SUB 1 Rp7.000
7 17760-52S10-000 SHROUD ASSY,FAN 1 Rp262.500
8 17920-52S00-000 CAP ASSY 1 Rp46.000
9 08316-2005A-000 NUT 1 Rp13.000
10 17762-52S00-000 COLLAR 2 Rp11.000
11 17879-52S00-000 MOUNT,RADIATOR SUPPORT UPPER 2 Rp5.000
12 17879-52S10-000 MOUNTING,RADIATOR 2 Rp5.500
13 17930-52S00-000 TANK ASSY,WATER RESERVE 1 Rp155.000
14 17932-76G00-000
SUB: 17932B76G00N000		 .CAP,WTR RSVR TANK 1 Rp5.500
15 17934-52S00-000 .HOSE,RSV TANK 1 Rp48.500
16 17939-52S00-000 HOSE,RDTR TO RSVR TANK 1 Rp5.500
17 09116-08173-000 BOLT,RDTR UPPER 2 Rp7.000
18 01550-0620B-000
SUB: 01550B0620BN000		 BOLT (6X20) 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
