NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 188A- WATER HOSE (N_AC)FIG. 188B- WATER HOSE (W_MN_AC)FIG. 190A- EMISSION CONTROLFIG. 199A- LABELFIG. 18PA THERMOSTATFIG. 101A SHORT ENGINE ASSYFIG. 105A ENGINE GASKET SETFIG. 110A CYLINDER HEAD COVERFIG. 111A CYLINDER HEADFIG. 112A CYLINDERFIG. 115A OIL PANFIG. 120A CRANKSHAFTFIG. 122A CAMSHAFT / VALVEFIG. 124A CAM CHAINFIG. 128A ENGINE MOUNTINGFIG. 130A INTAKE MANIFOLDFIG. 142 THROTTLE BODYFIG. 150A AIR CLEANERFIG. 154 EXHAUST MANIFOLDFIG. 156A MUFFLERFIG. 157A DELIVER PIPEFIG. 160A FUEL PUMPFIG. 176A OIL PUMPFIG. 180A WATER PUMPFIG. 184A RADIATOR (N-AC)FIG. 184B RADIATOR (W_MN_AC)

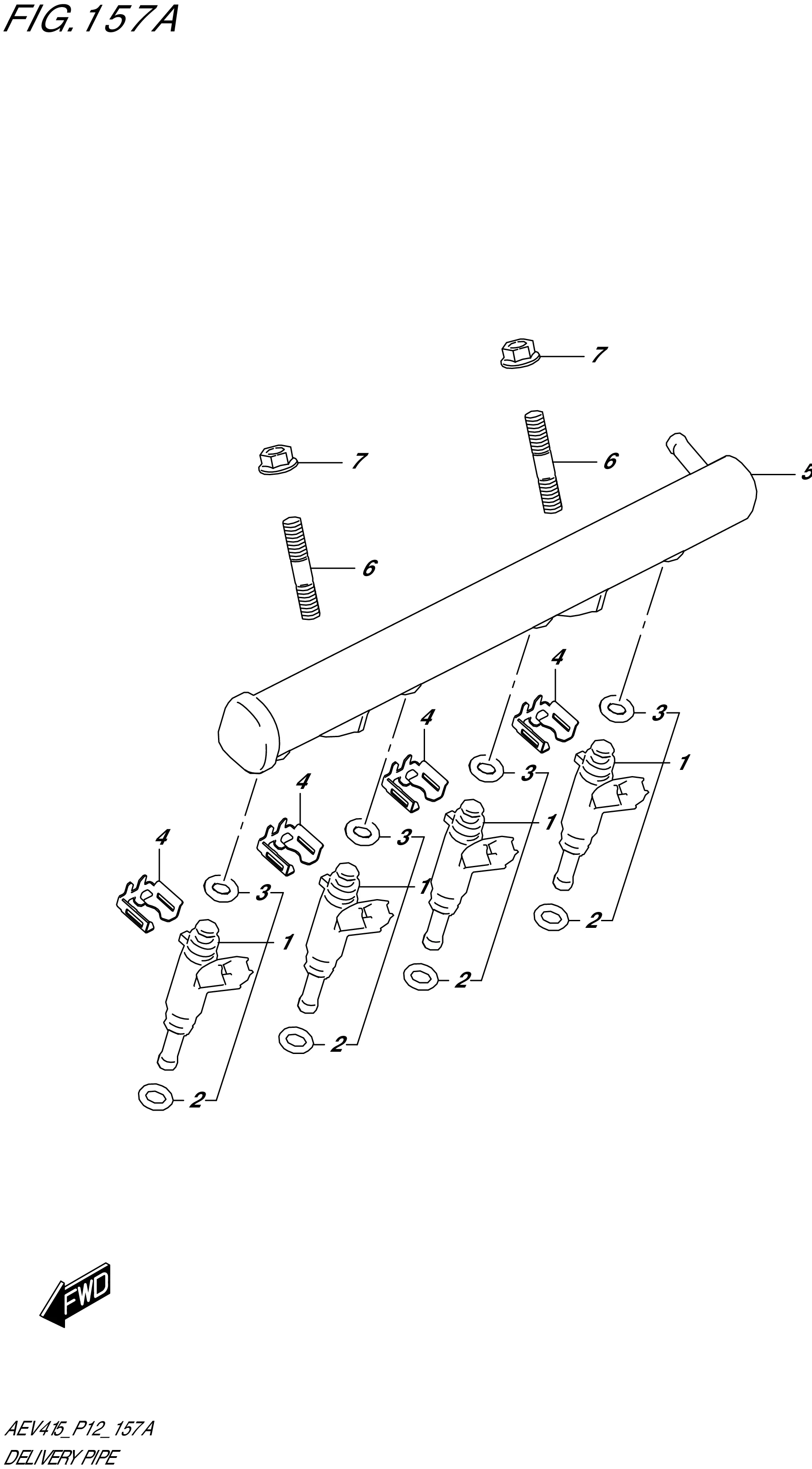

FIG. 157A DELIVER PIPE

FIG. 157A DELIVER PIPE
No No. Part Description Qty Price Per Pcs Remarks
1 15710-70R00-000 INJECTOR ASSY,FUEL 4 Rp238.000
2 15716M68P01-000
SUB: 15716M68P00-000		 .O RING 4 Rp31.500
3 15717M68P00-000 .O RING 4 Rp18.500
4 15715-82M00-000 CLIP,FUEL INJECTOR 4 Rp30.500
5 15730-52S00-000 PIPE,FUEL DELIVERY 1 Rp167.500
6 01421-0830A-000 BOLT,STUD 2 Rp16.500
7 08316-1008A-000 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
