NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 188A- WATER HOSE (N_AC)FIG. 188B- WATER HOSE (W_MN_AC)FIG. 190A- EMISSION CONTROLFIG. 199A- LABELFIG. 18PA THERMOSTATFIG. 101A SHORT ENGINE ASSYFIG. 105A ENGINE GASKET SETFIG. 110A CYLINDER HEAD COVERFIG. 111A CYLINDER HEADFIG. 112A CYLINDERFIG. 115A OIL PANFIG. 120A CRANKSHAFTFIG. 122A CAMSHAFT / VALVEFIG. 124A CAM CHAINFIG. 128A ENGINE MOUNTINGFIG. 130A INTAKE MANIFOLDFIG. 142 THROTTLE BODYFIG. 150A AIR CLEANERFIG. 154 EXHAUST MANIFOLDFIG. 156A MUFFLERFIG. 157A DELIVER PIPEFIG. 160A FUEL PUMPFIG. 176A OIL PUMPFIG. 180A WATER PUMPFIG. 184A RADIATOR (N-AC)FIG. 184B RADIATOR (W_MN_AC)

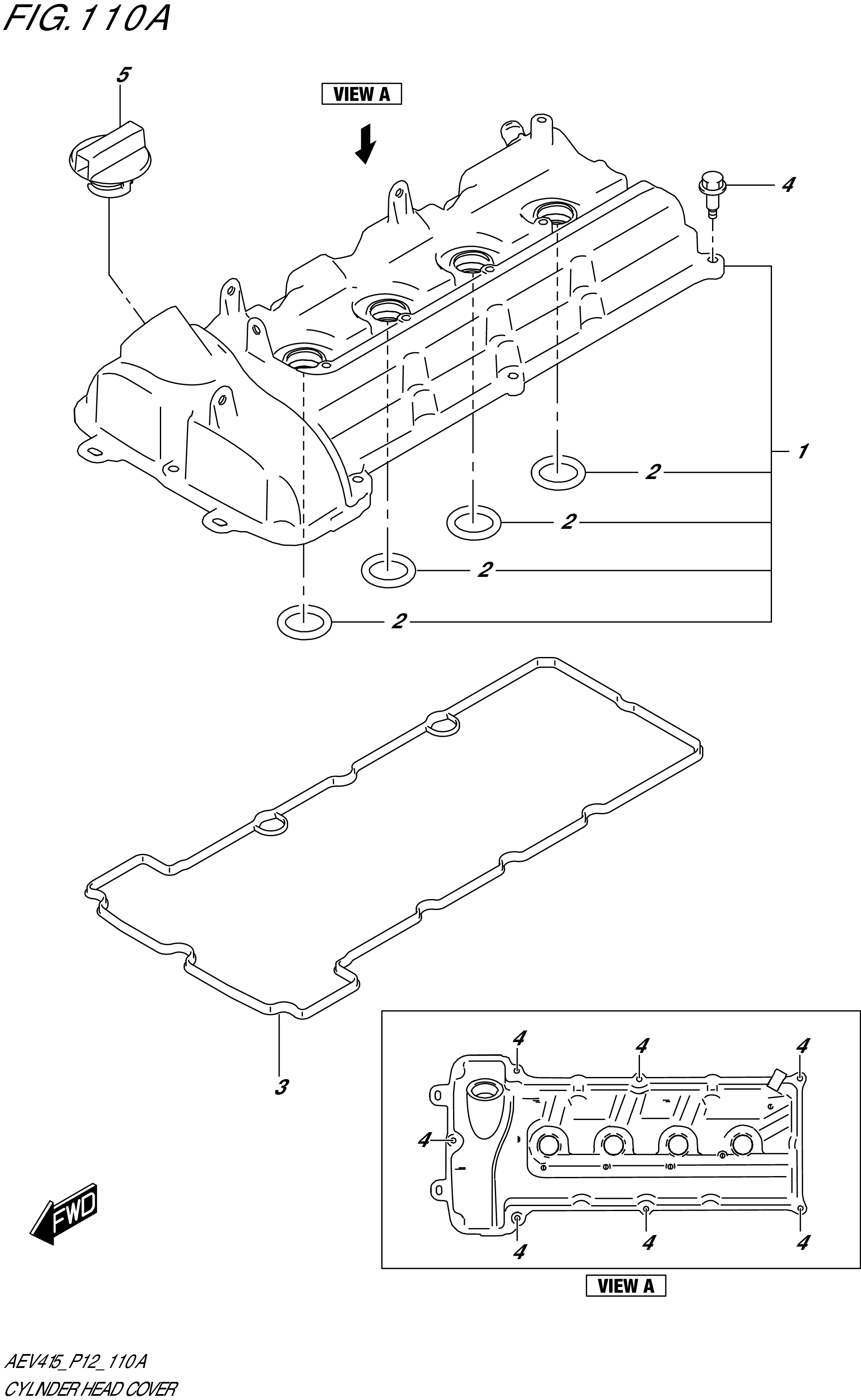

FIG. 110A CYLINDER HEAD COVER

FIG. 110A CYLINDER HEAD COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11170-52S00-000 COVER,CYLINDER HEAD 1 Rp512.500
2 11179M68K00-000 .O RING,SPARK PLUG PIPE 4 Rp13.000
3 11189-74L00-000
SUB: 11189B74L00N000		 GASKET,CYLINDER HEAD COVER 1 Rp87.500
4 DISCONTINUE
SUB: 01550B0625AN000		 BOLT (6X25) 7 -
5 16920-67LA0-000 CAP,OIL FILLER 1 Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
