NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 188A- WATER HOSE (N_AC)FIG. 188B- WATER HOSE (W_MN_AC)FIG. 190A- EMISSION CONTROLFIG. 199A- LABELFIG. 18PA THERMOSTATFIG. 101A SHORT ENGINE ASSYFIG. 105A ENGINE GASKET SETFIG. 110A CYLINDER HEAD COVERFIG. 111A CYLINDER HEADFIG. 112A CYLINDERFIG. 115A OIL PANFIG. 120A CRANKSHAFTFIG. 122A CAMSHAFT / VALVEFIG. 124A CAM CHAINFIG. 128A ENGINE MOUNTINGFIG. 130A INTAKE MANIFOLDFIG. 142 THROTTLE BODYFIG. 150A AIR CLEANERFIG. 154 EXHAUST MANIFOLDFIG. 156A MUFFLERFIG. 157A DELIVER PIPEFIG. 160A FUEL PUMPFIG. 176A OIL PUMPFIG. 180A WATER PUMPFIG. 184A RADIATOR (N-AC)FIG. 184B RADIATOR (W_MN_AC)

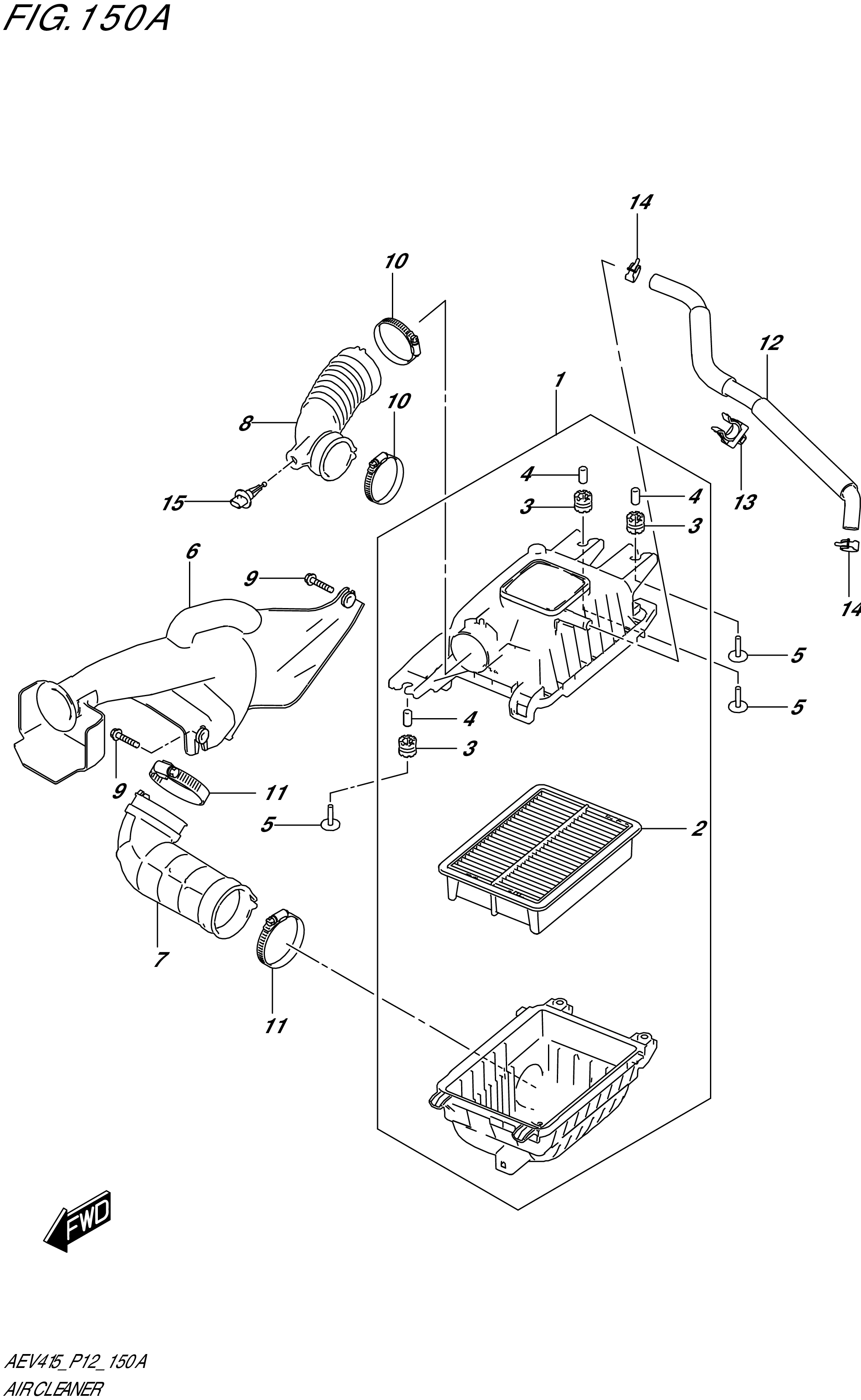

FIG. 150A AIR CLEANER

FIG. 150A AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-52S00-000 CLEANER ASSY,AIR 1 Rp340.000
2 13780-52S00-000 .ELEMENT,AIR CLEANER 1 Rp123.000
3 13723-52S00-000 .CUSHION 3 Rp8.500
4 13724-52S00-000 .COLLAR 3 Rp8.000
5 09112-06010-000 BOLT (6X30) 3 Rp23.500
6 13765-52S00-000 PIPE,AIR CLNR SUCT 1 Rp232.000
7 13766-52S00-000 HOSE,AIR CLNR SUCT 1 Rp106.000
8 13881-52S00-000 HOSE,AIR CLNR OUTLET 1 Rp66.000
9 09113-06004-000 BOLT (6X25) 2 Rp22.500
10 09402-70503-000
SUB: 09402-69002-000		 CLAMP 2 Rp91.500
11 09402-70503-000 CLAMP (ID:82) 2 Rp91.500
12 11191-52S00-000 HOSE,BREATHER 1 Rp62.500
13 09403-18305-000 CLAMP 1 Rp18.500
14 09401-18414-000 CLIP 2 Rp23.500
15 13650-77M00-000 SENSOR,INLET AIR TEMP 1 Rp80.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
