NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 188A- WATER HOSE (N_AC)FIG. 188B- WATER HOSE (W_MN_AC)FIG. 190A- EMISSION CONTROLFIG. 199A- LABELFIG. 18PA THERMOSTATFIG. 101A SHORT ENGINE ASSYFIG. 105A ENGINE GASKET SETFIG. 110A CYLINDER HEAD COVERFIG. 111A CYLINDER HEADFIG. 112A CYLINDERFIG. 115A OIL PANFIG. 120A CRANKSHAFTFIG. 122A CAMSHAFT / VALVEFIG. 124A CAM CHAINFIG. 128A ENGINE MOUNTINGFIG. 130A INTAKE MANIFOLDFIG. 142 THROTTLE BODYFIG. 150A AIR CLEANERFIG. 154 EXHAUST MANIFOLDFIG. 156A MUFFLERFIG. 157A DELIVER PIPEFIG. 160A FUEL PUMPFIG. 176A OIL PUMPFIG. 180A WATER PUMPFIG. 184A RADIATOR (N-AC)FIG. 184B RADIATOR (W_MN_AC)

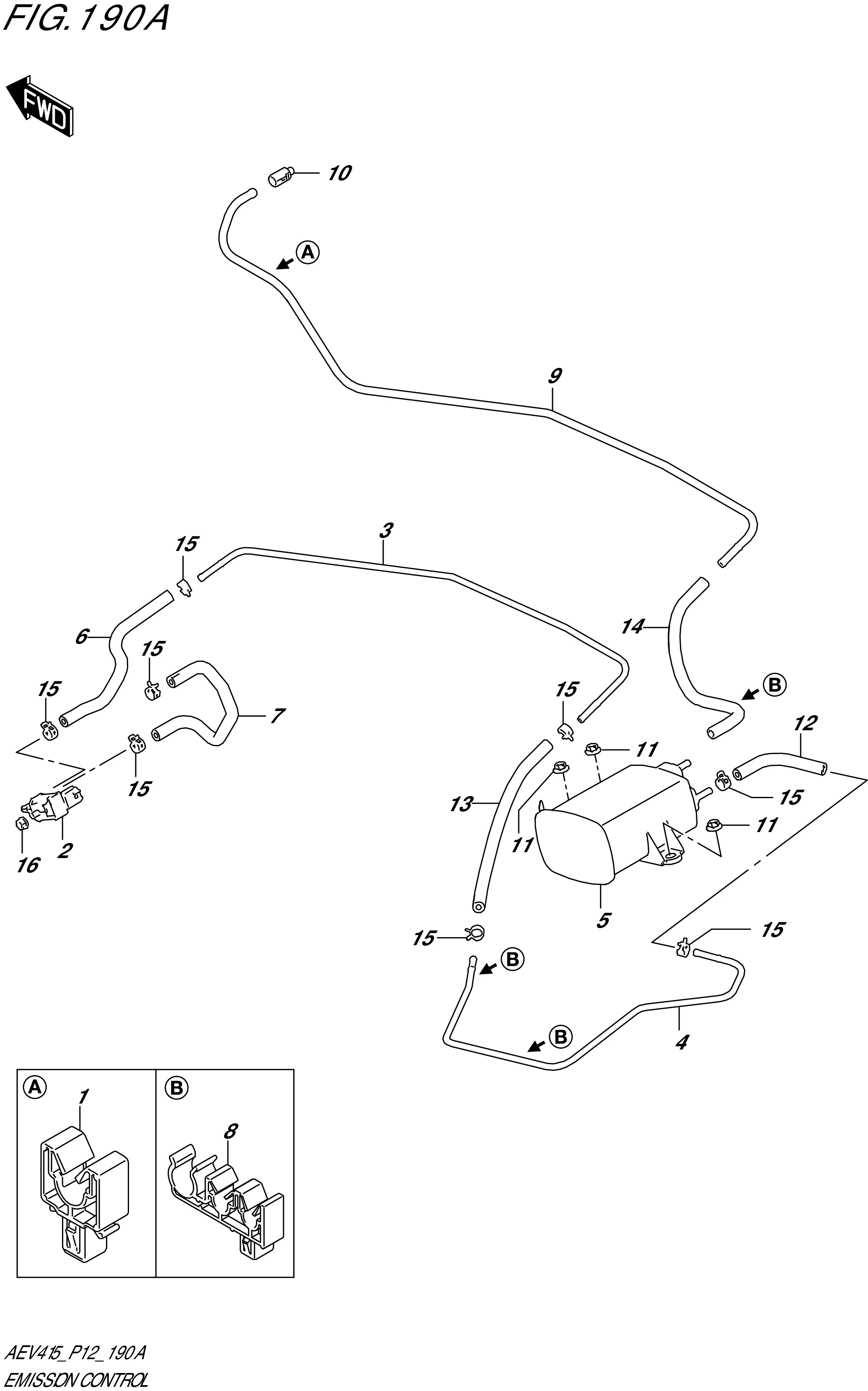

FIG. 190A- EMISSION CONTROL

FIG. 190A- EMISSION CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 15894-52S00-000 CLAMP,SUCTION PIPE 1 Rp5.500
2 18114-74P00-000 VALVE,CANISTER PURGE 1 Rp117.000
3 18351-52S00-000 PIPE,PURGE 1 Rp20.500
4 18352-52S00-000 PIPE,PURGE 1 Rp30.000
5 18560-73R00-000 CANISTER 1 Rp300.500
6 18561-52S00-000 HOSE,PURGE 1 Rp16.000
7 18564-52S00-000 HOSE,PURGE 1 Rp19.500
8 18565-52S00-000 CLAMP,PURGE HOSE 3 Rp7.000
9 18569-52S00-000 PIPE,CSTR AIR SUCTION 1 Rp30.500
10 89481-52R00-000 FILTER,AIR SUCTION 1 Rp6.000
11 09159-06076-000 NUT (M6) 3 Rp19.500
12 09355-56L02-100 HOSE,PURGE 1 Rp9.500
13 09355-56L02-210 HOSE,PURGE 1 Rp16.500
14 09355-70130-300 HOSE,CANISTER AIR SUCTION 1 Rp20.500
15 09401-11004-000 CLIP 8 Rp20.500
16 08316-1006A-000 NUT (6X12) 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
