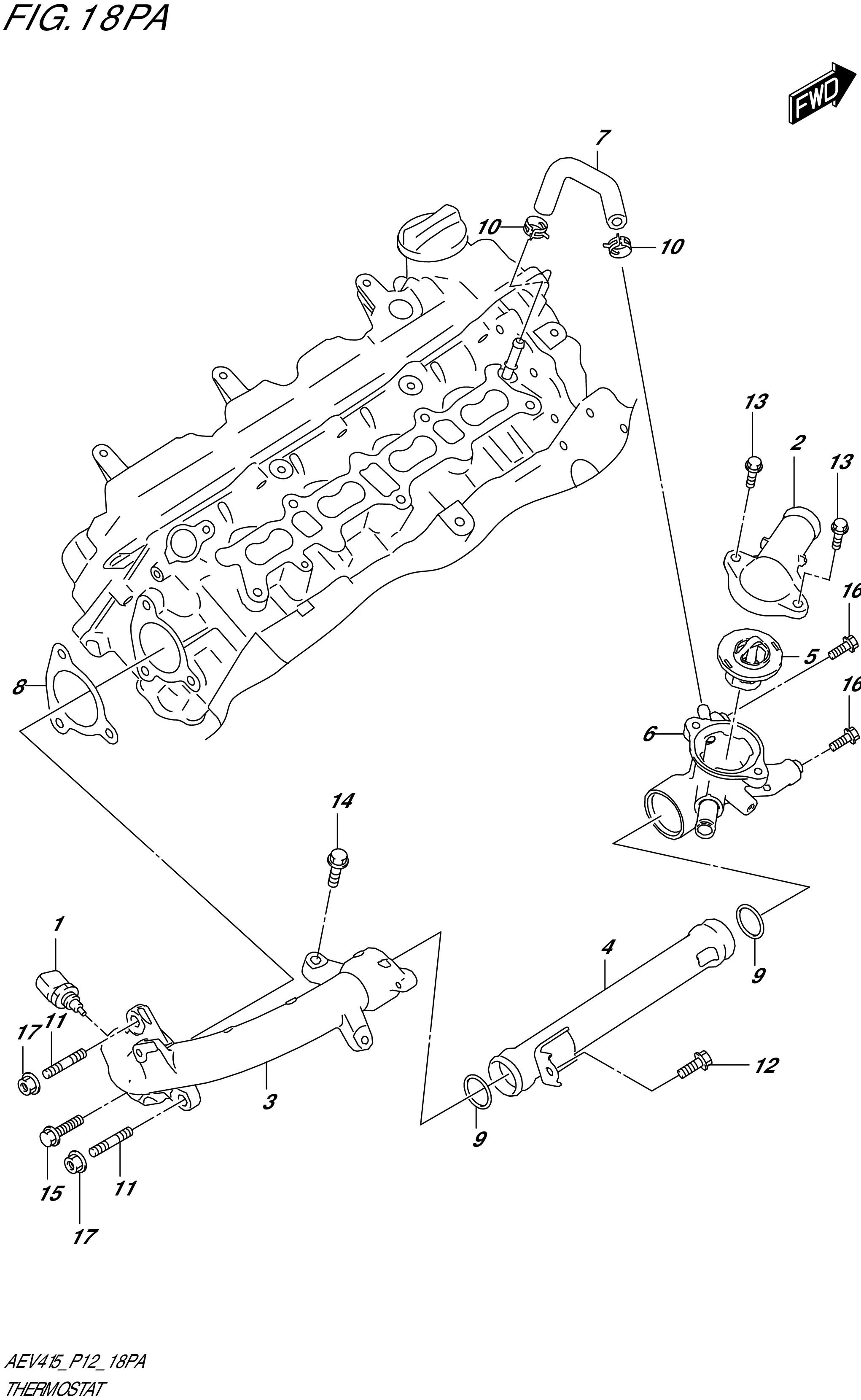

FIG. 18PA THERMOSTAT

FIG. 18PA THERMOSTAT
No No. Part Description Qty Price Per Pcs Remarks
1 13650-73H00-000 SENSOR,WATER TEMP 1 Rp368.000
2 17561-52S00-000 CAP,WTR THERMO 1 Rp34.500
3 17571-52S00-000 CAP,WATER OUTLET 1 Rp266.000
4 17580-52S00-000 PIPE,WTR OUTLET 1 Rp43.500
5 17670-65G00-000 THERMOSTAT,WATER (88oC) 1 Rp321.000
6 17690-52S00-000 CASE,THERMOSTAT 1 Rp125.000
7 17698-52S00-000 HOSE,WATER BYPASS 1 Rp11.500
8 17699-67LA0-000
SUB: 17699B67LA0N000		 GASKET,THERMO CASE 1 Rp13.500
9 09280-28008-000
SUB: 09280B28008N000		 O RING (D:3.5,ID:27.7) 2 Rp2.500
10 09401-13431-000 CLIP (ID:13) 2 Rp19.500
11 01421-0825A-000 BOLT,STUD 2 Rp13.000
12 01550-0616A-000 BOLT (6X16) 1 Rp3.500
13 01550-0620B-000
SUB: 01550B0620BN000		 BOLT (6X20) 2 Rp3.500
14 DISCONTINUE
SUB: 01550B0625AN000		 BOLT (6X25) 1 -
15 01550-0830A-000
SUB: 01550B0830AN000		 BOLT (8X30) 1 Rp4.000
16 01550-0840A-000
SUB: 01550B0840AN000		 BOLT (8X40) 2 Rp3.500
17 08316-1008A-000 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
