NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 188A- WATER HOSE (N_AC)FIG. 188B- WATER HOSE (W_MN_AC)FIG. 190A- EMISSION CONTROLFIG. 199A- LABELFIG. 18PA THERMOSTATFIG. 101A SHORT ENGINE ASSYFIG. 105A ENGINE GASKET SETFIG. 110A CYLINDER HEAD COVERFIG. 111A CYLINDER HEADFIG. 112A CYLINDERFIG. 115A OIL PANFIG. 120A CRANKSHAFTFIG. 122A CAMSHAFT / VALVEFIG. 124A CAM CHAINFIG. 128A ENGINE MOUNTINGFIG. 130A INTAKE MANIFOLDFIG. 142 THROTTLE BODYFIG. 150A AIR CLEANERFIG. 154 EXHAUST MANIFOLDFIG. 156A MUFFLERFIG. 157A DELIVER PIPEFIG. 160A FUEL PUMPFIG. 176A OIL PUMPFIG. 180A WATER PUMPFIG. 184A RADIATOR (N-AC)FIG. 184B RADIATOR (W_MN_AC)

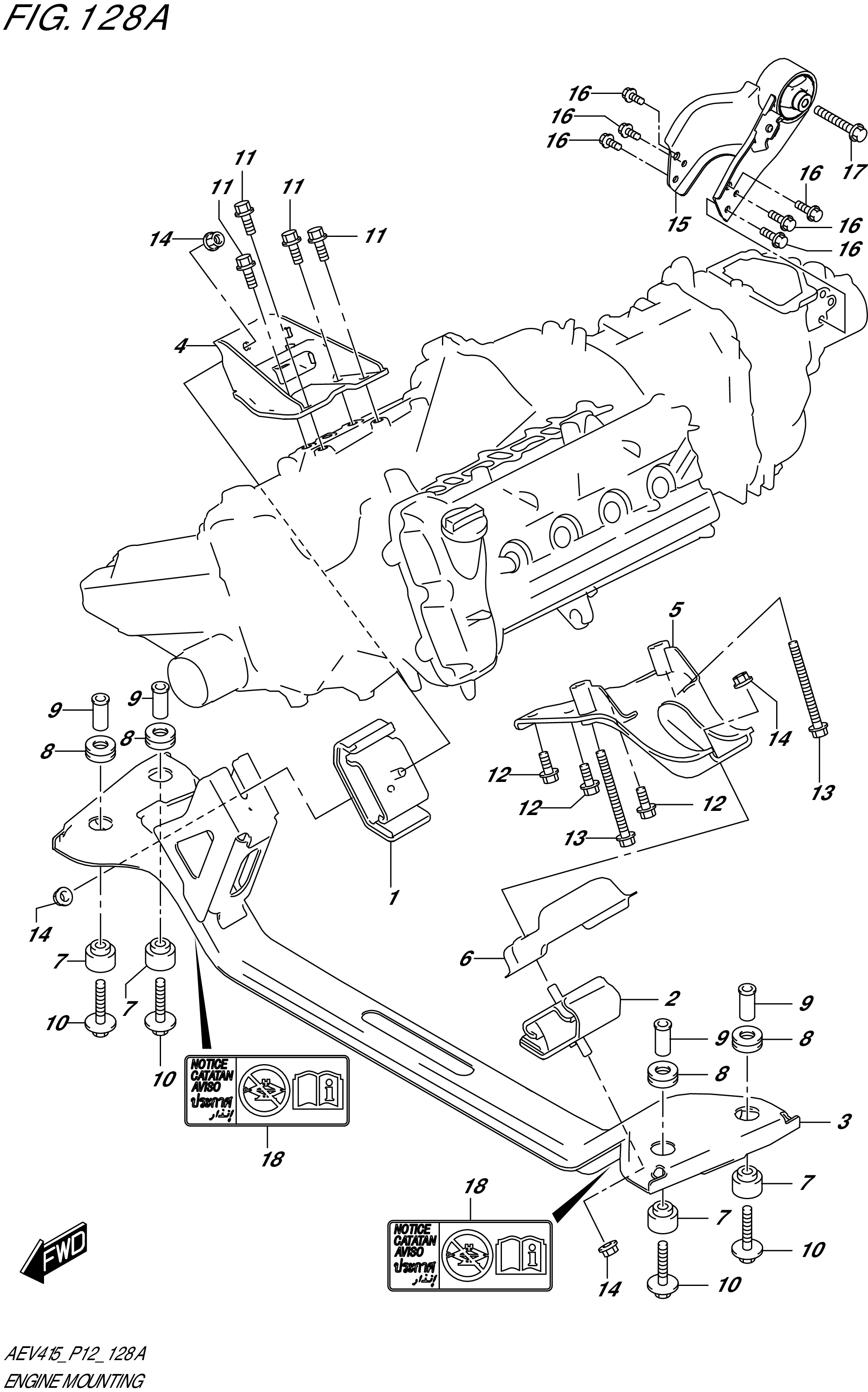

FIG. 128A ENGINE MOUNTING

FIG. 128A ENGINE MOUNTING
No No. Part Description Qty Price Per Pcs Remarks
1 11610-52S01-000
SUB: 11610-52S00-000		 MOUNTING,ENG RH 1 Rp149.000
2 11620-52S00-000 MOUNTING,ENG LH 1 Rp159.000
3 11630-52S01-000
SUB: 11630-52S00-000		 MEMBER,ENG FRONT MTG 1 Rp965.000
4 11640-52S00-000 BRACKET,ENG FR MTG,R 1 Rp205.500
5 11650-52S00-000 BRACKET,ENG FR MTG,L 1 Rp332.500
6 11681-52S00-000 COVER,FRONT MTG 1 Rp31.000
7 11684-52S00-000 CUSHION MTG MEMBER LOWER 4 Rp19.000
8 11686-52S00-000 CUSHION MTG MEMBER UPPER 4 Rp12.000
9 11687-67H00-000 COLLAR,MTG MEMBER 4 Rp28.500
10 09116-10173-000 BOLT,10X72.5 (10X72.5) 4 Rp32.000
11 01550-1025A-000
SUB: 01550B1025AN000		 BOLT (10X20) 4 Rp3.500
12 01550-1025A-000
SUB: 01550B1025AN000		 BOLT (10X20) 3 Rp3.500
13 01550M1065A-000
SUB: 01550M10653-000		 BOLT 2 Rp16.500
14 08316-1010A-000 NUT 4 Rp3.500
15 11710-52S01-000
SUB: 11710-52S00-000		 MOUNTING,ENG REAR 1 Rp266.500
16 09103-08562-000 BOLT,RR MTG & T/M 6 Rp5.000
17 09113-10005-000 BOLT,10X90 (10X90) 1 Rp27.500
18 11631-52S00-000 LABEL,ENGINE MOUNT MEMBER 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
