NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 188A- WATER HOSE (N_AC)FIG. 188B- WATER HOSE (W_MN_AC)FIG. 190A- EMISSION CONTROLFIG. 199A- LABELFIG. 18PA THERMOSTATFIG. 101A SHORT ENGINE ASSYFIG. 105A ENGINE GASKET SETFIG. 110A CYLINDER HEAD COVERFIG. 111A CYLINDER HEADFIG. 112A CYLINDERFIG. 115A OIL PANFIG. 120A CRANKSHAFTFIG. 122A CAMSHAFT / VALVEFIG. 124A CAM CHAINFIG. 128A ENGINE MOUNTINGFIG. 130A INTAKE MANIFOLDFIG. 142 THROTTLE BODYFIG. 150A AIR CLEANERFIG. 154 EXHAUST MANIFOLDFIG. 156A MUFFLERFIG. 157A DELIVER PIPEFIG. 160A FUEL PUMPFIG. 176A OIL PUMPFIG. 180A WATER PUMPFIG. 184A RADIATOR (N-AC)FIG. 184B RADIATOR (W_MN_AC)

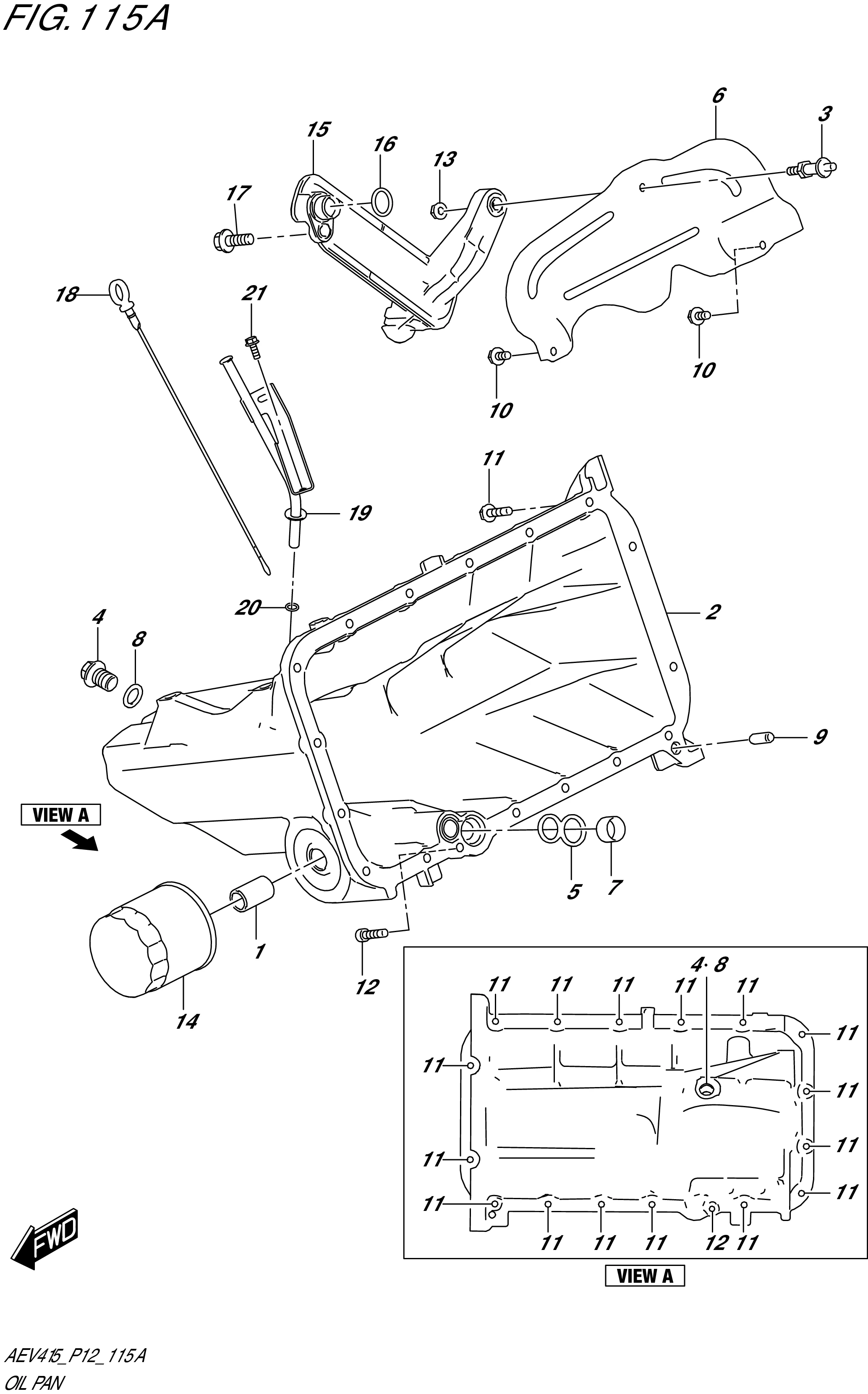

FIG. 115A OIL PAN

FIG. 115A OIL PAN
No No. Part Description Qty Price Per Pcs Remarks
1 11241-68K00-000
SUB: 11241B68K00N000		 STAND,OIL FILTER 1 Rp15.000
2 11511-52S00-000 PAN,OIL 1 Rp858.000
3 11515-51K03-000 BOLT,OIL PAN BAFFLE STUD 1 Rp54.000
4 11518-63J20-000 PLUG,OIL DRAIN 1 Rp29.500
5 11518-67LA0-000
SUB: 11518B67LA0N000		 O-RING,OIL PAN 1 Rp6.000
6 11541-52S00-000 PLATE,OIL PAN BAFFLE 1 Rp69.000
7 16114M69J00-000
SUB: 16114B69J00N000		 PIN,OIL PAN DOWEL 1 Rp14.500
8 09168-14015-000
SUB: 11519M60M00-000		 GASKET (14X20X1.5) 1 Rp7.500
9 09202-08004-000
SUB: 09202B08004N000		 PIN (8X23) 1 Rp6.500
10 01550M0612A-000 BOLT (6X12) 2 Rp5.000
11 01550-0625C-000 BOLT (6X25) 16 Rp14.500
12 07130-0625A-000 BOLT (6X25) 1 Rp3.500
13 08316-1006A-000 NUT (6X12) 1 Rp2.000
14 16510-61J00-000 FILTER ASSY,OIL 1 Rp37.000
15 16520-52S00-000 STRAINER,OIL PUMP 1 Rp71.500
16 51181-37B00-000
SUB: 51181B37B00N000		 O RING (D:2.4,ID:16.8) 1 Rp5.000
17 07120-0620A-000 BOLT 1 Rp22.000
18 16910-52S00-000 GAUGE,OIL LEVEL 1 Rp62.500
19 16930-52S00-000 GUIDE,OIL LEVEL GAUGE 1 Rp65.500
20 09280-10016-000 O RING (D:1.9,ID:9.8) 1 Rp19.500
21 01550-0616A-000 BOLT (6X16) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
