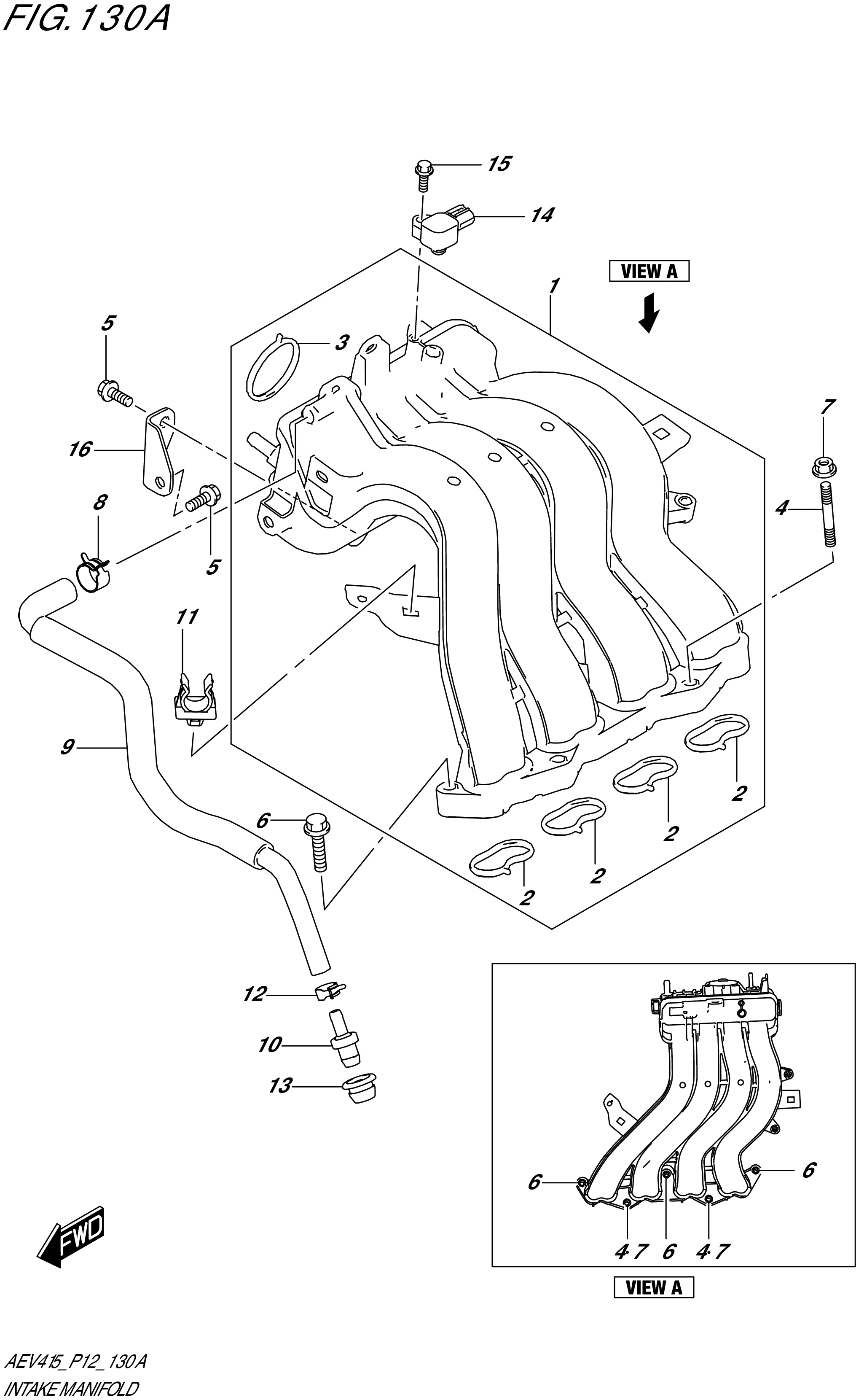

FIG. 130A INTAKE MANIFOLD

FIG. 130A INTAKE MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 13110-52S00-000 MANIFOLD,INTAKE 1 Rp536.500
2 13118-67LB0-000 .GASKET, INTK MANF 4 Rp10.500
3 13421-67LB0-000 .GASKET,THROTTLE BODY 1 Rp15.000
4 01421-0835A-000 BOLT,STUD 2 Rp13.500
5 01550-0816A-000
SUB: 01550B0816AN000		 BOLT (8X16) 2 Rp6.000
6 01550-0835A-000 BOLT (8X35) 3 Rp3.500
7 08316-1008A-000 NUT 2 Rp3.500
8 09401-18414-000 CLIP 1 Rp23.500
9 11193-52S00-000 HOSE,PCV 1 Rp50.500
10 18118-60M00-000 VALVE,PCV 1 Rp177.000
11 09403-18305-000 CLAMP 1 Rp18.500
12 09401-13423-000 CLIP 1 Rp24.000
13 11198M79F00-000 SEAL,PCV VALVE 1 Rp16.500
14 18590-73R00-000 SENSOR ASSY,PRESSURE 1 Rp139.000
15 09132-05066-000 SCREW,MAP SENSOR 1 Rp19.500
16 13161-52S00-000 STIFFENER,INTAKE MANIFOLD 1 Rp13.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
