NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 188A- WATER HOSE (N_AC)FIG. 188B- WATER HOSE (W_MN_AC)FIG. 190A- EMISSION CONTROLFIG. 199A- LABELFIG. 18PA THERMOSTATFIG. 101A SHORT ENGINE ASSYFIG. 105A ENGINE GASKET SETFIG. 110A CYLINDER HEAD COVERFIG. 111A CYLINDER HEADFIG. 112A CYLINDERFIG. 115A OIL PANFIG. 120A CRANKSHAFTFIG. 122A CAMSHAFT / VALVEFIG. 124A CAM CHAINFIG. 128A ENGINE MOUNTINGFIG. 130A INTAKE MANIFOLDFIG. 142 THROTTLE BODYFIG. 150A AIR CLEANERFIG. 154 EXHAUST MANIFOLDFIG. 156A MUFFLERFIG. 157A DELIVER PIPEFIG. 160A FUEL PUMPFIG. 176A OIL PUMPFIG. 180A WATER PUMPFIG. 184A RADIATOR (N-AC)FIG. 184B RADIATOR (W_MN_AC)

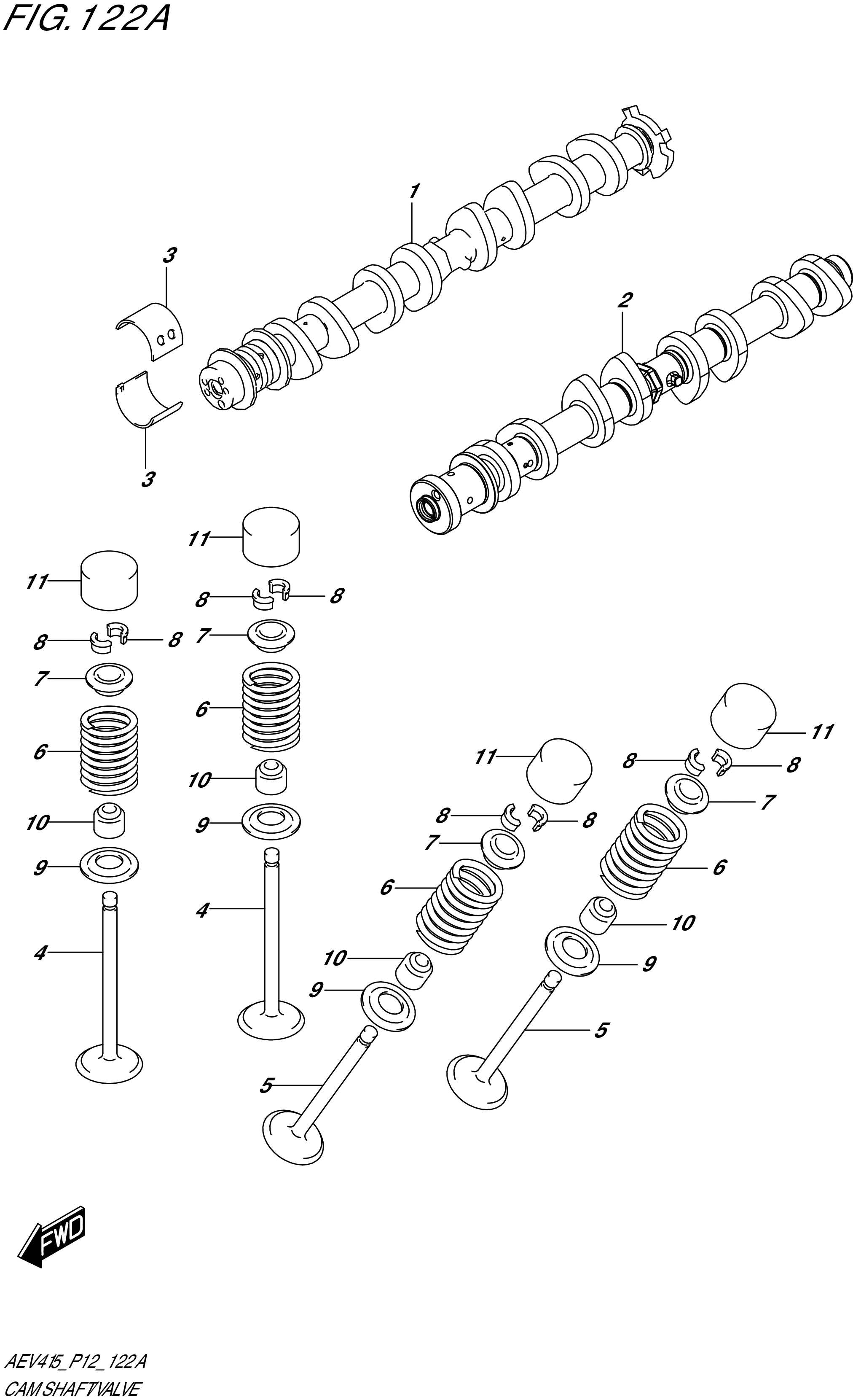

FIG. 122A CAMSHAFT / VALVE

FIG. 122A CAMSHAFT / VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-52S00-000 CAMSHAFT,INTK 1 Rp1.210.500
2 12721-52S00-000 CAMSHAFT,EXH 1 Rp603.000
3 12737-77M00-000
SUB: 12737B77M00N000		 BEARING,CAMSHAFT 2 Rp42.000
4 12911-77M00-000
SUB: 12911B77M00N000		 VALVE,INTK 8 Rp60.000
5 12915-77M00-000
SUB: 12915B77M00N000		 VALVE,EXH 8 Rp60.000
6 12921-77M00-000 SPRING,VALVE 16 Rp13.000
7 12931-69L00-000 RETAINER,VALVE SPRING 16 Rp42.000
8 12932-24F00-000 COTTER VALVE 32 Rp15.000
9 12933M51E00-000 SEAT,VALVE SPRING 16 Rp3.500
10 12934-77M00-000 SEAL,VALVE STEM 16 Rp9.500
11-29 12891-52S00-366 TAPPET (T:3.66) 16 Rp28.500
11-28 12891-52S00-364 TAPPET (T:3.64) 16 Rp28.500
11-27 12891-52S00-362 TAPPET (T:3.62) 16 Rp28.500
11-26 12891-52S00-360 TAPPET (T:3.60) 16 Rp28.500
11-25 12891-52S00-358 TAPPET (T:3.58) 16 Rp28.500
11-24 12891-52S00-356 TAPPET (T:3.56) 16 Rp28.500
11-23 12891-52S00-354 TAPPET (T:3.54) 16 Rp28.500
11-22 12891-52S00-352 TAPPET (T:3.52) 16 Rp28.500
11-40 12891-52S00-388 TAPPET (T:3.88) 16 Rp28.500
11-21 12891-52S00-350 TAPPET (T:3.50) 16 Rp28.500
11-30 12891-52S00-368 TAPPET (T:3.68) 16 Rp28.500
11-31 12891-52S00-370 TAPPET (T:3.70) 16 Rp28.500
11-32 12891-52S00-372 TAPPET (T:3.72) 16 Rp28.500
11-33 12891-52S00-374 TAPPET (T:3.74) 16 Rp28.500
11-34 12891-52S00-376 TAPPET (T:3.76) 16 Rp28.500
11-35 12891-52S00-378 TAPPET (T:3.78) 16 Rp28.500
11-36 12891-52S00-380 TAPPET (T:3.80) 16 Rp28.500
11-37 12891-52S00-382 TAPPET (T:3.82) 16 Rp28.500
11-38 12891-52S00-384 TAPPET (T:3.84) 16 Rp28.500
11-39 12891-52S00-386 TAPPET (T:3.86) 16 Rp28.500
11-10 12891-52S00-328 TAPPET (T:3.28) 16 Rp28.500
11-1 12891-52S00-310 TAPPET (T:3.10) 16 Rp28.500
11-2 12891-52S00-312 TAPPET (T:3.12) 16 Rp28.500
11-3 12891-52S00-314 TAPPET (T:3.14) 16 Rp28.500
11-4 12891-52S00-316 TAPPET (T:3.16) 16 Rp28.500
11-5 12891-52S00-318 TAPPET (T:3.18) 16 Rp28.500
11-6 12891-52S00-320 TAPPET (T:3.20) 16 Rp28.500
11-7 12891-52S00-322 TAPPET (T:3.22) 16 Rp28.500
11-8 12891-52S00-324 TAPPET (T:3.24) 16 Rp28.500
11-9 12891-52S00-326 TAPPET (T:3.26) 16 Rp28.500
11-20 12891-52S00-348 TAPPET (T:3.48) 16 Rp28.500
11-11 12891-52S00-330 TAPPET (T:3.30) 16 Rp28.500
11-12 12891-52S00-332 TAPPET (T:3.32) 16 Rp28.500
11-13 12891-52S00-334 TAPPET (T:3.34) 16 Rp28.500
11-14 12891-52S00-336 TAPPET (T.3.36) 16 Rp28.500
11-15 12891-52S00-338 TAPPET (T:3.38) 16 Rp28.500
11-16 12891-52S00-340 TAPPET (T:3.40) 16 Rp28.500
11-17 12891-52S00-342 TAPPET (T.3.42) 16 Rp28.500
11-18 12891-52S00-344 TAPPET (T:3.44) 16 Rp28.500
11-19 12891-52S00-346 TAPPET (T:3.46) 16 Rp28.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
