NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 188A- WATER HOSE (N_AC)FIG. 188B- WATER HOSE (W_MN_AC)FIG. 190A- EMISSION CONTROLFIG. 199A- LABELFIG. 18PA THERMOSTATFIG. 101A SHORT ENGINE ASSYFIG. 105A ENGINE GASKET SETFIG. 110A CYLINDER HEAD COVERFIG. 111A CYLINDER HEADFIG. 112A CYLINDERFIG. 115A OIL PANFIG. 120A CRANKSHAFTFIG. 122A CAMSHAFT / VALVEFIG. 124A CAM CHAINFIG. 128A ENGINE MOUNTINGFIG. 130A INTAKE MANIFOLDFIG. 142 THROTTLE BODYFIG. 150A AIR CLEANERFIG. 154 EXHAUST MANIFOLDFIG. 156A MUFFLERFIG. 157A DELIVER PIPEFIG. 160A FUEL PUMPFIG. 176A OIL PUMPFIG. 180A WATER PUMPFIG. 184A RADIATOR (N-AC)FIG. 184B RADIATOR (W_MN_AC)

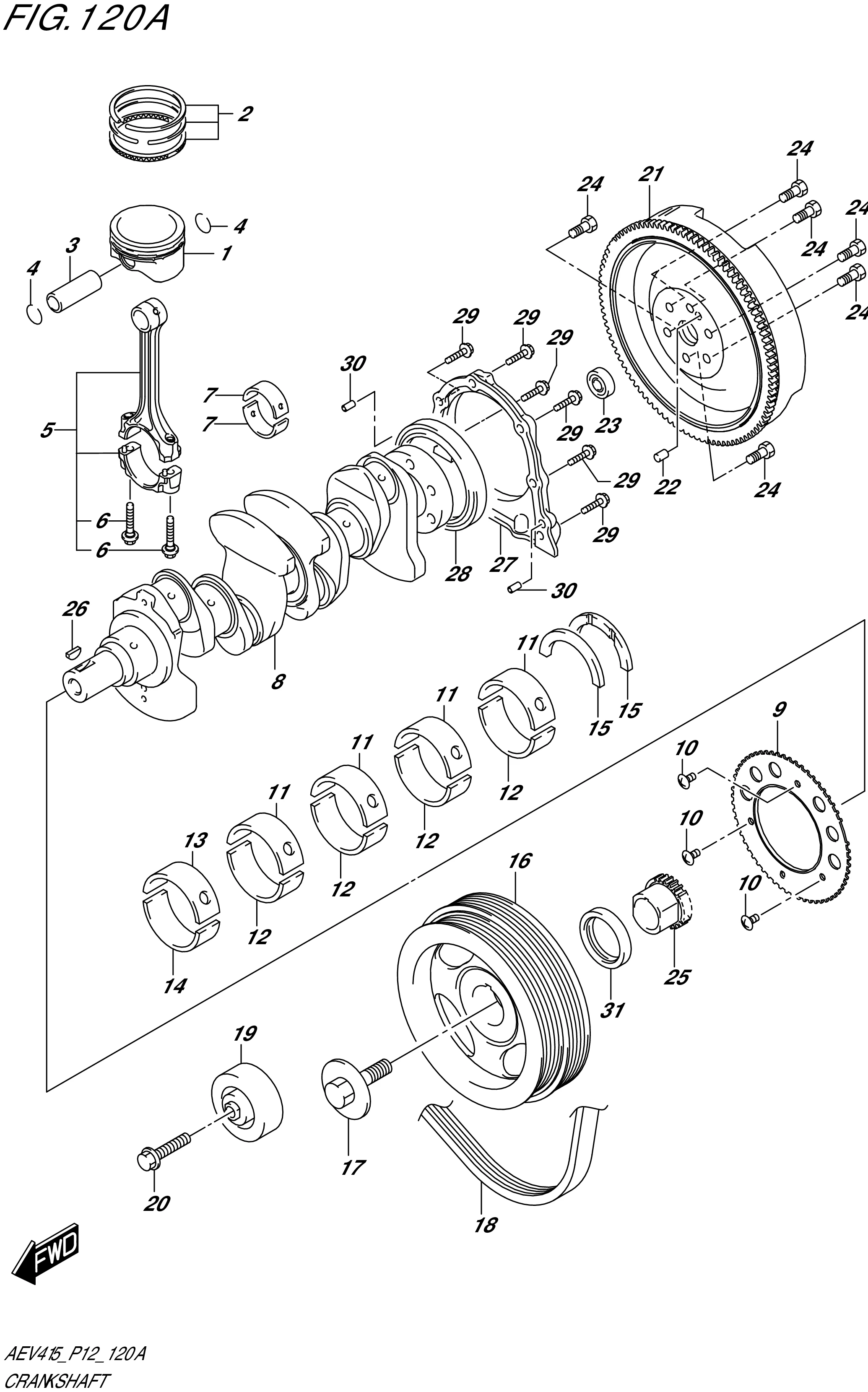

FIG. 120A CRANKSHAFT

FIG. 120A CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12111-52S00-000 PISTON 4 Rp133.000
2 12140-73R00-000 RING SET,PISTON 4 Rp81.500
3 12151-71L00-0C0
SUB: 12151B71L00N0C0		 PIN,PISTON 4 Rp49.000
4 09381-18002-000
SUB: 09381B18002N000		 CIRCLIP (OD:20.5) 8 Rp2.500
5 12160-73R00-000 CONNROD ASSY 4 Rp291.500
6 12163-69J00-000 .BOLT,CONNROD 8 Rp25.500
7-5 12181-77M00-0E0
SUB: 12181B77M00N0E0		 BEARING,CONNROD BLUE (STD,T:1.5) 8 Rp46.000
7-6 12181-77M00-025
SUB: 12181B77M00N025		 BEARING,CONNROD RED (US:0.25,T:1.625) 8 Rp45.000
7-4 12181-77M00-0D0
SUB: 12181B77M00N0D0		 BEARING,CONNROD YELLOW (STD,T:1.5) 8 Rp45.000
7-3 12181-77M00-0C0
SUB: 12181B77M00N0C0		 BEARING,CONNROD NON (STD,T:1.5) 8 Rp45.000
7-2 12181-77M00-0B0
SUB: 12181B77M00N0B0		 BEARING,CONNROD BLACK (STD,T:1.5) 8 Rp45.000
7-1 12181-77M00-0A0
SUB: 12181B77M00N0A0		 BEARING,CONNROD GREEN (STD,T:1.5) 8 Rp45.000
8 12221-73R00-000 CRANKSHAFT 1 Rp3.691.000
9 12222-73R00-000 PLATE,SENSOR 1 Rp39.000
10 12223-69G00-000 SCREW,SENSOR PLATE (6X10) 3 Rp13.500
11-6 12341-77M00-0AA
SUB: 12341B77M00N0AA		 BEARING,CRANK UPR RED/PINK (US:0.25,T:2.125) 4 Rp26.500
11-10 12341-77M00-0EA
SUB: 12341B77M00N0EA		 BEARING,CRANK UPR RED/BLACK (US:0.25,T:2.125) 4 Rp26.500
11-9 12341-77M00-0DA
SUB: 12341B77M00N0DA		 BEARING,CRANK UPR RED/GREEN (US:0.25,T:2.125) 4 Rp27.000
11-8 12341-77M00-0CA
SUB: 12341B77M00N0CA		 BEARING,CRANK UPR RED/BROWN (US:0.25,T:2.125) 4 Rp26.500
11-7 12341-77M00-0BA
SUB: 12341B77M00N0BA		 BEARING,CRANK UPR RED/PURPLE (US:0.25,T:2.125) 4 Rp26.500
11-5 12341-77M00-0E0
SUB: 12341B77M00N0E0		 BEARING,CRANK UPR BLACK (STD,T:2.0) 4 Rp26.500
11-4 12341-77M00-0D0
SUB: 12341B77M00N0D0		 BEARING,CRANK UPR GREEN (STD,T:2.0) 4 Rp26.500
11-3 12341-77M00-0C0
SUB: 12341B77M00N0C0		 BEARING,CRANK UPR BROWN (STD,T:2.0) 4 Rp26.500
11-2 12341-77M00-0B0
SUB: 12341B77M00N0B0		 BEARING,CRANK UPR PURPLE (STD,T:2.0) 4 Rp26.500
11-1 12341-77M00-0A0
SUB: 12341B77M00N0A0		 BEARING,CRANK UPR PINK (STD,T:2.0) 4 Rp26.500
12-6 12345-77M00-0AA
SUB: 12345B77M00N0AA		 BEARING,CRANK LWR RED/PINK (US:0.25,T:2.125) 4 Rp26.500
12-10 12345-77M00-0EA
SUB: 12345B77M00N0EA		 BEARING,CRANK LWR RED/BLACK (US:0.25,T:2.125) 4 Rp26.500
12-9 12345-77M00-0DA
SUB: 12345B77M00N0DA		 BEARING,CRANK LWR RED/GREEN (US:0.25,T:2.125) 4 Rp27.000
12-8 12345-77M00-0CA
SUB: 12345B77M00N0CA		 BEARING,CRANK LWR RED/BROWN (US:0.25,T:2.125) 4 Rp26.500
12-7 12345-77M00-0BA
SUB: 12345B77M00N0BA		 BEARING,CRANK LWR RED/PURPLE (US:0.25,T:2.125) 4 Rp26.500
12-5 12345-77M00-0E0
SUB: 12345B77M00N0E0		 BEARING,CRANK LWR BLACK (STD,T:2.0) 4 Rp26.500
12-4 12345-77M00-0D0
SUB: 12345B77M00N0D0		 BEARING,CRANK LWR GREEN (STD,T:2.0) 4 Rp26.500
12-3 12345-77M00-0C0
SUB: 12345B77M00N0C0		 BEARING,CRANK LWR BROWN (STD,T:2.0) 4 Rp26.500
12-2 12345-77M00-0B0
SUB: 12345B77M00N0B0		 BEARING,CRANK LWR PURPLE (STD,T:2.0) 4 Rp26.500
12-1 12345-77M00-0A0
SUB: 12345B77M00N0A0		 BEARING,CRANK LWR PINK (STD,T:2.0) 4 Rp26.500
13-2 12341-85K10-0B0 BEARING,CRANKSHAFT UPPER (STD,T:2.0) 1 Rp142.500
13-10 12341-85K10-0ZA BEARING, CRANK UPR (US:0.25,T:2.125) 1 Rp144.000
13-9 12341-85K10-0YA BEARING, CRANK UPR (US:0.25,T:2.125) 1 Rp144.000
13-8 12341-85K10-0CA BEARING, CRANK UPR (US:0.25,T:2.125) 1 Rp139.000
13-7 12341-85K10-0BA BEARING, CRANK UPR (US:0.25,T:2.125) 1 Rp144.000
13-5 12341-85K10-0Z0 BEARING, CRANK UPR (STD,T:2.0) 1 Rp140.500
13-4 12341-85K10-0Y0 BEARING, CRANK UPR (STD,T:2.0) 1 Rp140.500
13-3 12341-85K10-0C0 BEARING,CRANKSHAFT UPPER (STD,T:2.0) 1 Rp136.500
13-1 12341-85K10-0A0 BEARING,CRANKSHAFT UPPER (STD,T:2.0) 1 Rp129.000
13-6 12341-85K10-0AA BEARING, CRANK UPR (US:0.25,T:2.125) 1 Rp133.000
14-1 12345-85K00-0A0 BEARING,CRANKSHAFT LOWER (STD,T:2.0) 1 Rp71.500
14-2 12345-85K00-0B0 BEARING,CRANKSHAFT LOWER (STD,T:2.0) 1 Rp74.500
14-3 12345-85K00-0C0 BEARING,CRANKSHAFT LOWER (STD,T:2.0) 1 Rp71.500
14-4 12345-85K00-0Y0 BEARING, CRANK LWR (STD,T:2.0) 1 Rp77.000
14-5 12345-85K00-0Z0 BEARING, CRANK LWR (STD,T:2.0) 1 Rp77.000
14-6 12345-85K00-0AA BEARING, CRANK LWR (US:0.25,T:2.125) 1 Rp73.000
14-7 12345-85K00-0BA BEARING, CRANK LWR (US:0.25,T:2.125) 1 Rp79.000
14-8 12345-85K00-0CA BEARING, CRANK LWR (US:0.25,T:2.125) 1 Rp73.000
14-9 12345-85K00-0YA BEARING, CRANK LWR (US:0.25,T:2.125) 1 Rp79.000
14-10 12345-85K00-0ZA BEARING, CRANK LWR (US:0.25,T:2.125) 1 Rp79.000
15-2 12351-77M00-012
SUB: 12351B77M00N012		 BEARING,CRANK THRUST (US:0.125,T:2.563) 2 Rp43.500
15-1 12351-77M00-000
SUB: 12351B77M00N000		 BEARING,CRANK THRUST (STD,T:2.5) 2 Rp17.500
16 12610-73R00-000 PULLEY,CRANKSHAFT 1 Rp293.500
17 12619-67LA0-000
SUB: 12619B67LA0N000		 BOLT,CRANK PULLEY (12X37) 1 Rp54.000
18 17521-52S00-000 BELT,WATER PUMP 1 Rp60.500
19 17530-50M30-000
SUB: 17530-50M00-000		 PULLEY,BELT TENSIONER 1 Rp472.000
20 01550-1040A-000 BOLT (10X40) 1 Rp7.000
21 12620-52S03-000
SUB: 12620-52S00-000		 FLYWHEEL 1 Rp794.500
22 04221-08129-000 PIN 1 Rp14.000
23 12623-61J00-000 BEARING,INPUT SHAFT 1 Rp39.500
24 09103-10440-000 BOLT (10X18.5) 6 Rp33.000
25 12631-54GA1-000 SPROCKET,CRANKSHAFT TIMING 1 Rp171.500
26 08341M31059-000 KEY 1 Rp4.500
27 11341M51K00-000 HOUSING,OIL SEAL 1 Rp73.000
28 11342-67LD0-000 SEAL CRANKSHAFT REAR OIL 1 Rp70.000
29 09103-06282-000 BOLT (6X25) 6 Rp16.500
30 04221-06129-000 PIN (4X6X11) 2 Rp12.500
31 16141-73R00-000 SEAL,CRANKSHAFT FRONT OIL 1 Rp52.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
