NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 188A- WATER HOSE (N_AC)FIG. 188B- WATER HOSE (W_MN_AC)FIG. 190A- EMISSION CONTROLFIG. 199A- LABELFIG. 18PA THERMOSTATFIG. 101A SHORT ENGINE ASSYFIG. 105A ENGINE GASKET SETFIG. 110A CYLINDER HEAD COVERFIG. 111A CYLINDER HEADFIG. 112A CYLINDERFIG. 115A OIL PANFIG. 120A CRANKSHAFTFIG. 122A CAMSHAFT / VALVEFIG. 124A CAM CHAINFIG. 128A ENGINE MOUNTINGFIG. 130A INTAKE MANIFOLDFIG. 142 THROTTLE BODYFIG. 150A AIR CLEANERFIG. 154 EXHAUST MANIFOLDFIG. 156A MUFFLERFIG. 157A DELIVER PIPEFIG. 160A FUEL PUMPFIG. 176A OIL PUMPFIG. 180A WATER PUMPFIG. 184A RADIATOR (N-AC)FIG. 184B RADIATOR (W_MN_AC)

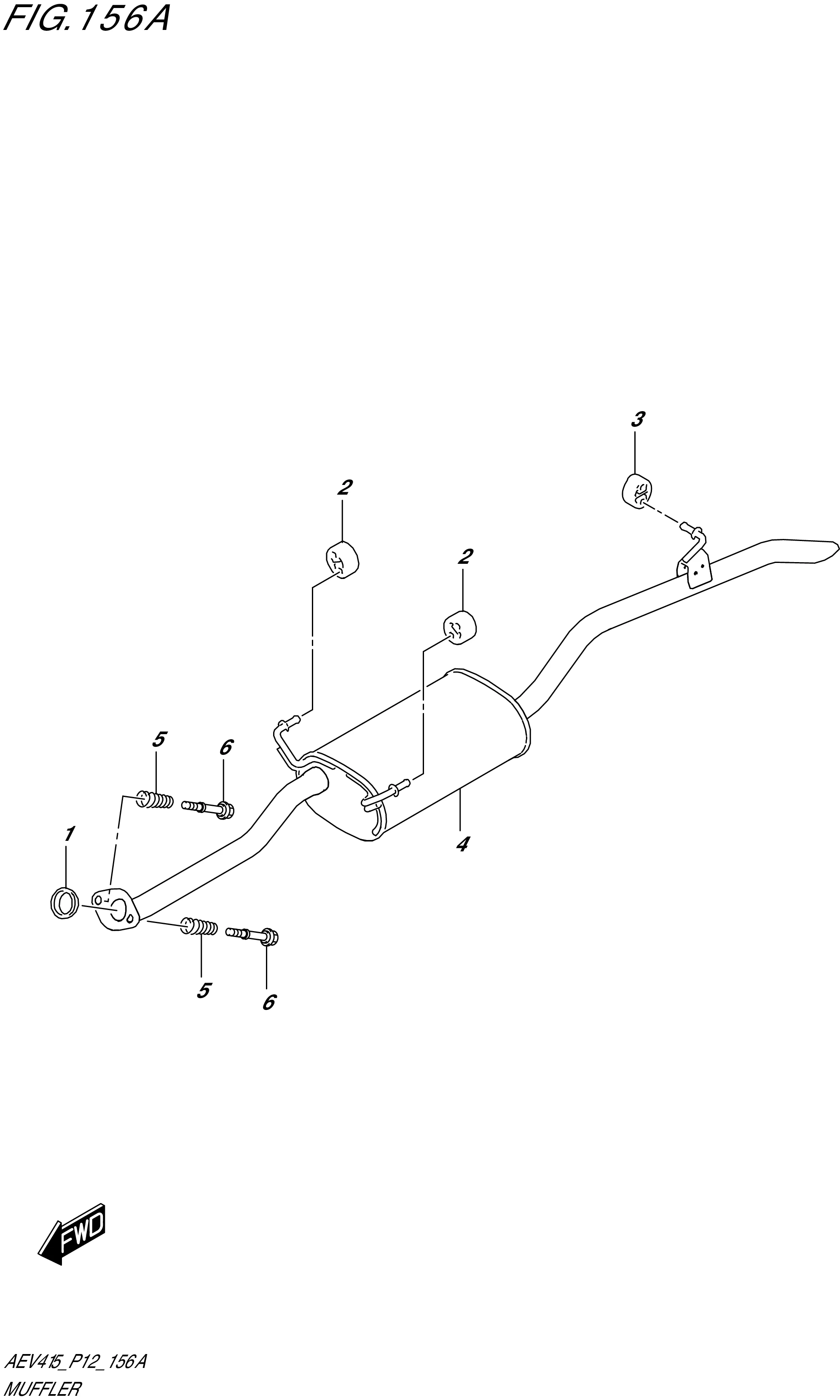

FIG. 156A MUFFLER

FIG. 156A MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14183-76A00-000 RING,SEAL EXH PIPE 1 Rp126.500
2 14281-52S00-000 MOUNTING,MUFFLER 2 Rp198.500
3 14281-57L00-000 MOUNTING,MUFFLER 1 Rp102.000
4 14300-52S00-000 MUFFLER 1 Rp3.306.000
5 14492-77M00-000
SUB: 14492B77M00N000		 SPRING,EXH PIPE 2 Rp19.500
6 09119-10073-000 BOLT (10X65) 2 Rp75.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
