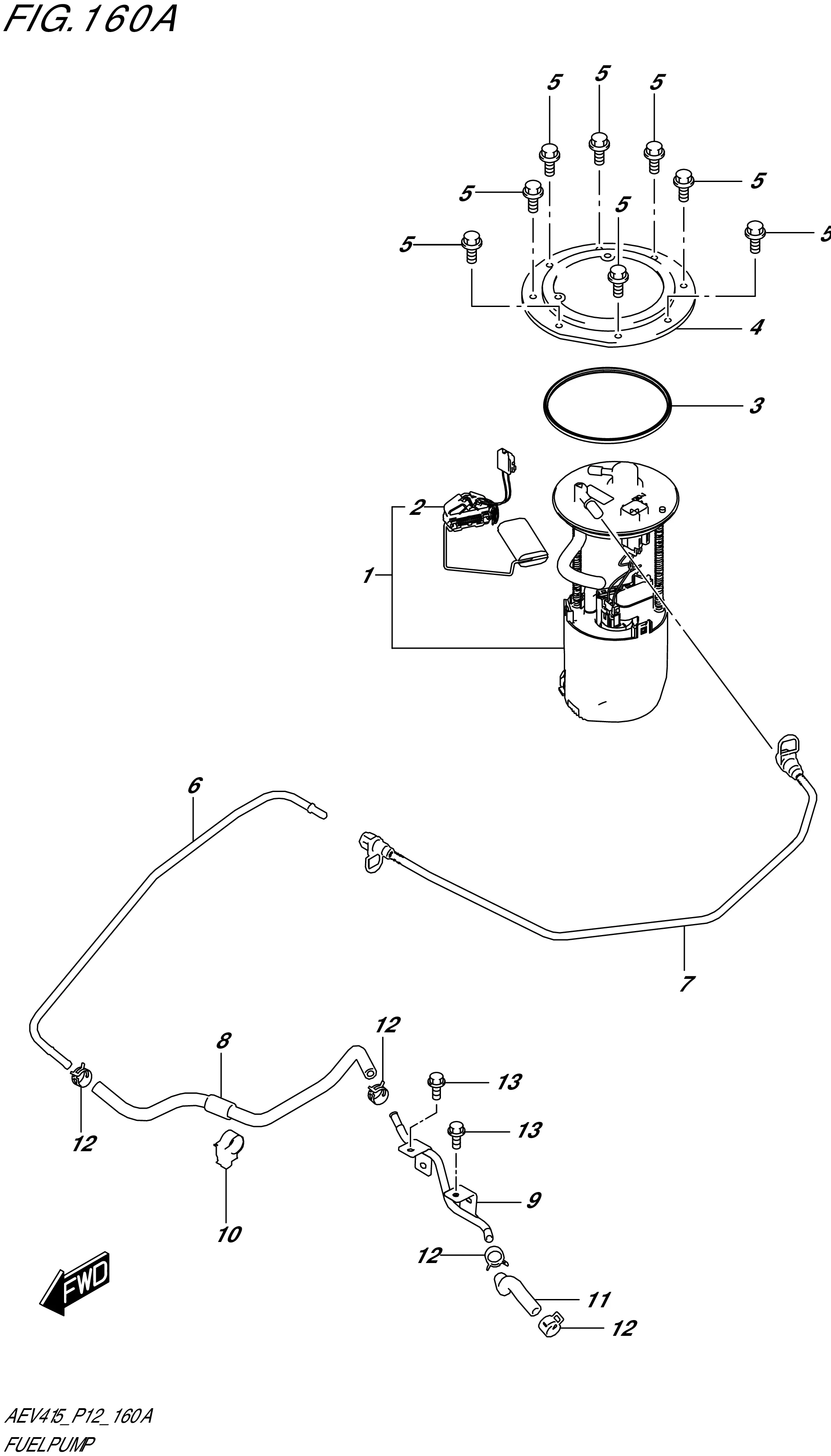

FIG. 160A FUEL PUMP

FIG. 160A FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-52S01-000
SUB: 15100-52S00-000		 PUMP ASSY,FUEL 1 Rp1.791.500
2 34810-52S01-000
SUB: 34810-52S00-000		 .GAUGE ASSY,FUEL LEVEL 1 Rp901.000
3 15111-77M00-000
SUB: 15111B77M00N000		 GASKET,FUEL PUMP 1 Rp34.000
4 15121M61J00-000 PLATE,FUEL PUMP 1 Rp23.500
5 01550-0610B-000
SUB: 01550B0610BN000		 BOLT (6X10) 8 Rp3.000
6 15811-52S00-000 PIPE,FUEL FEED 1 Rp23.500
7 15812-52S00-000 PIPE,FUEL 1 Rp127.500
8 15815-52S00-000 HOSE,FUEL 1 Rp210.000
9 15830-52S00-000 PIPE,FUEL FEED 1 Rp55.000
10 15895M68P00-000 CLAMP,FUEL HOSE 1 Rp12.500
11 09356-75143-130 HOSE, FUEL 1 Rp45.500
12 09401-11433-000 CLIP, FUEL HOSE 4 Rp25.500
13 01550M0612A-000 BOLT (6X12) 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
