NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 188A- WATER HOSE (N_AC)FIG. 188B- WATER HOSE (W_MN_AC)FIG. 190A- EMISSION CONTROLFIG. 199A- LABELFIG. 18PA THERMOSTATFIG. 101A SHORT ENGINE ASSYFIG. 105A ENGINE GASKET SETFIG. 110A CYLINDER HEAD COVERFIG. 111A CYLINDER HEADFIG. 112A CYLINDERFIG. 115A OIL PANFIG. 120A CRANKSHAFTFIG. 122A CAMSHAFT / VALVEFIG. 124A CAM CHAINFIG. 128A ENGINE MOUNTINGFIG. 130A INTAKE MANIFOLDFIG. 142 THROTTLE BODYFIG. 150A AIR CLEANERFIG. 154 EXHAUST MANIFOLDFIG. 156A MUFFLERFIG. 157A DELIVER PIPEFIG. 160A FUEL PUMPFIG. 176A OIL PUMPFIG. 180A WATER PUMPFIG. 184A RADIATOR (N-AC)FIG. 184B RADIATOR (W_MN_AC)

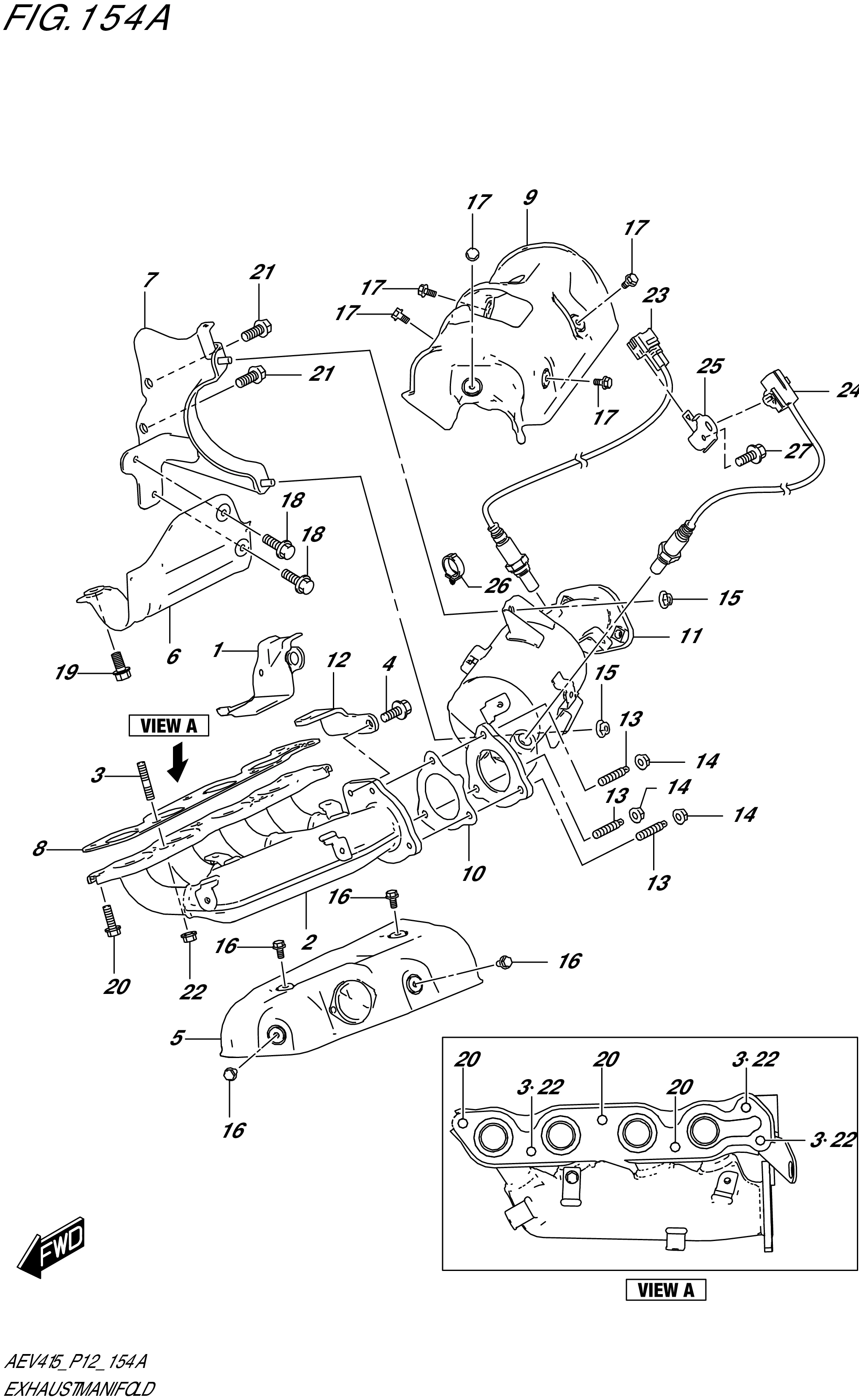

FIG. 154 EXHAUST MANIFOLD

FIG. 154 EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 11851-52S00-000 HOOK,ENGINE 1 Rp80.000
2 14110-52S00-000 MANIFOLD,EXH 1 Rp1.535.000
3 14118-63J00-000 STUD BOLT,EXH MANF 3 Rp21.500
4 14118-70G50-000 BOLT,EXH MANIFOLD (8X25) 1 Rp83.000
5 14120-52S00-000 COVER,EXH MANF UPPER 1 Rp761.500
6 14130-52S00-000 COVER,CLUTCH CABLE 1 Rp216.500
7 14135-52S00-000 BRACKET,CATALYST CASE 1 Rp343.500
8 14140-59R00-000 GASKET,EXH MANF 1 Rp43.000
9 14170-52S00-000 COVER,CTLST CASE 1 Rp866.500
10 14180-52S00-000 GASKET,CATALYST CASE 1 Rp19.000
11 14220-52S00-000 CASE,CATALYST 1 Rp9.240.000
12 14271-52S00-000 STIFFENER,EXH MANF 1 Rp60.000
13 09108-08297-000 BOLT,STUD 3 Rp93.500
14 09159-08130-000 NUT (M8) 3 Rp19.500
15 09159-08140-000 NUT 2 Rp20.000
16 01550-0612C-000 BOLT (6X12) 4 Rp19.500
17 01550-0612C-000 BOLT (6X12) 5 Rp19.500
18 DISCONTINUE
SUB: 01550B0625AN000		 BOLT (6X25) 2 -
19 01550-0830A-000
SUB: 01550B0830AN000		 BOLT (8X30) 1 Rp4.000
20 01550-1020A-000 BOLT (10X20) 3 Rp21.000
21 01550-1025A-000
SUB: 01550B1025AN000		 BOLT (10X20) 2 Rp3.500
22 08316-1010A-000 NUT 3 Rp3.500
23 18213-52S00-000 SENSOR,OXYGEN 1 Rp345.500
24 18213-52S10-000 SENSOR,OXYGEN RR 1 Rp376.000
25 18214-52S00-000 BRACKET,OXYGEN SENSOR 1 Rp9.000
26 09403M12404-000 CLAMP 1 Rp5.500
27 01550-0612C-000 BOLT (6X12) 1 Rp19.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
