NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 300A- ENGINE ELECTRICALFIG. 302A- STARTING MOTORFIG. 304A- GENERATOR (N_AC)FIG. 304B- GENERATOR (W_MN_AC)FIG. 320A- BATTERYFIG. 324A- SPEEDOMETERFIG. 330A- HEADLAMPFIG. 336A- REAR LAMPFIG. 348A- ENGINE HARNESS BRACKETFIG. 350A- ELECTRICAL CONTROL BODYFIG. 351A- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG. 30JA GENERATOR BRACKETFIG. 34NA - WIRING HARNESS FRONT SIDEFIG. 34PA WIRING HARNESS REAR SIDE

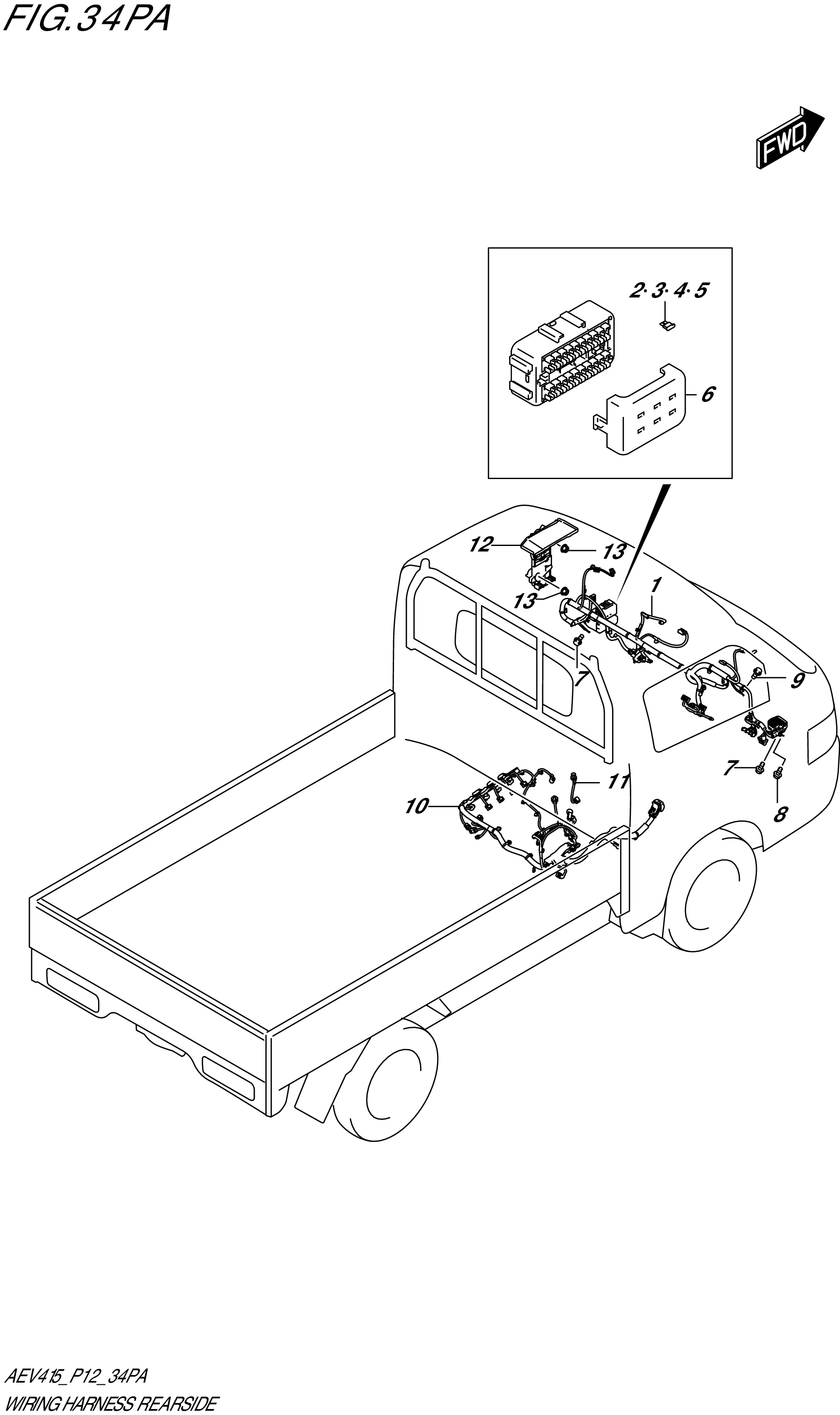

FIG. 34PA WIRING HARNESS REAR SIDE

FIG. 34PA WIRING HARNESS REAR SIDE
No No. Part Description Qty Price Per Pcs Remarks
2-1 09481-05501-000 .FUSE (5A) 2 Rp17.000
2-2 09481-05501-000 .FUSE (5A) 3 Rp17.000
3 09481-10504-000 .FUSE (10A) 7 Rp12.500
4-1 09481-15504-000 .FUSE (15A) 2 Rp13.000
4-2 09481-15504-000 .FUSE (15A) 3 Rp13.000
5 09481-20504-000 .FUSE (20A) 1 Rp14.500
6 36717-52S00-000 .COVER,FUSE BOX 1 Rp26.500
7 09115-06005-000 BOLT (6X16) 2 Rp14.000
8 09115-06005-000 BOLT (6X16) 1 Rp14.000
9 02162-0612A-000 SCREW (6X12) 1 Rp11.000
10-1 36650-52S12-000
SUB: 36650-52S10-000		 HARNESS ASSY,ENG 1 Rp2.043.000
10-2 36650-52S22-000
SUB: 36650-52S20-000		 HARNESS ASSY,ENG 1 Rp1.963.500
11 36655-52S00-000 WIRE,CRANK 1 Rp112.500
12 36715-52S00-000 BRACKET ASSY,J/B 1 Rp123.500
13 09159-08150-000 NUT (M8X1.25) 2 Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
