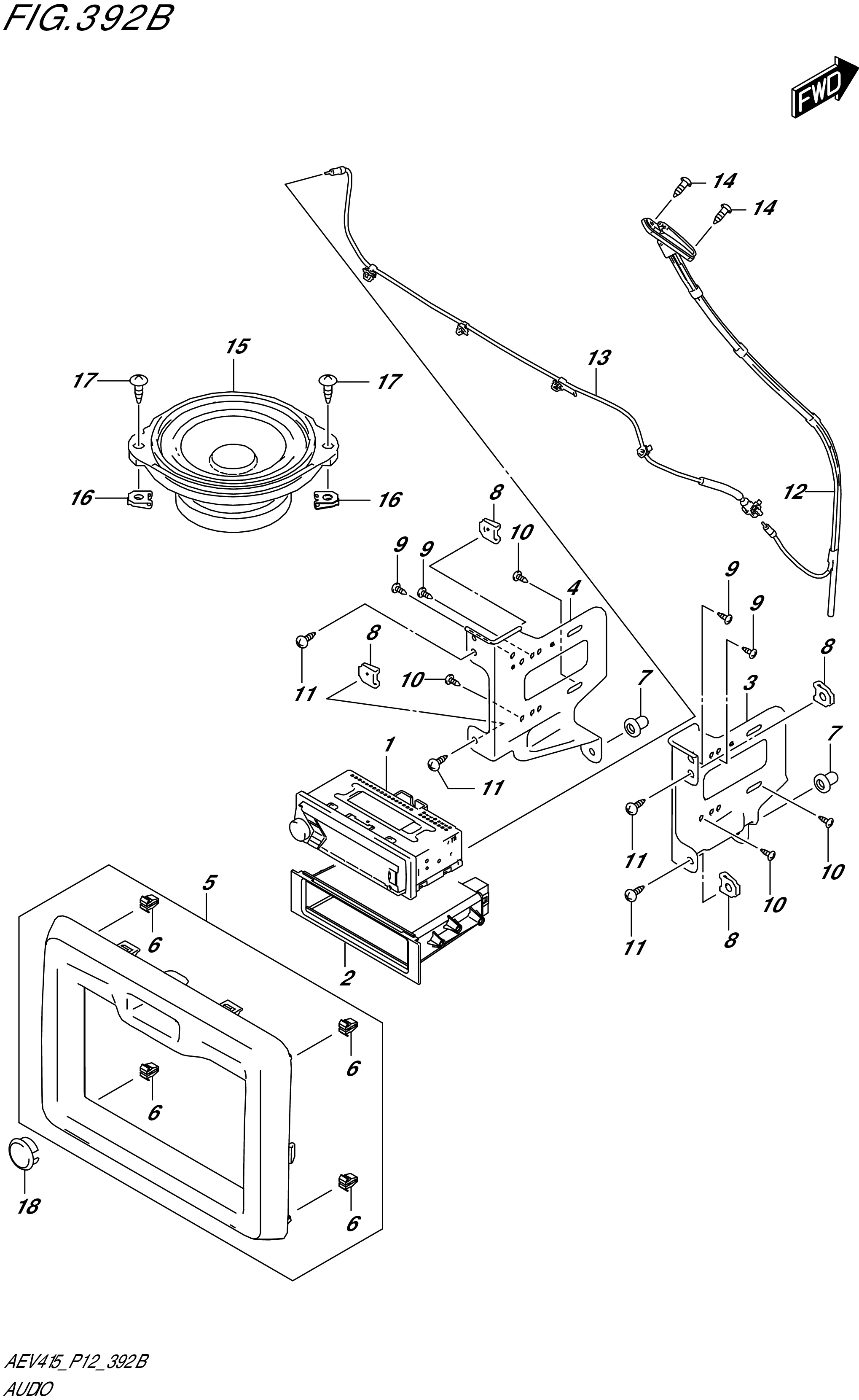

FIG. 392B- AUDIO (W_TUNER)

FIG. 392B- AUDIO (W_TUNER)
No No. Part Description Qty Price Per Pcs Remarks
1 39101-52S01-000
SUB: 39101-52S00-000		 TUNER ASSY 1 Rp1.370.500
2 39182-77M10-000
SUB: 39182B77M10N000		 POCKET,TUNER 1 Rp38.000
3 39321-52S00-000 BRACKET,TUNER,R 1 Rp23.000
4 39322-52S00-000 BRACKET,TUNER,L 1 Rp23.000
5 73821-52S00-5PK GARNISH,I/P CTR (BLACK) 1 Rp19.000
6 09409-08351-000 .CLIP 4 Rp21.000
7 34955-59J00-000 BUSH,RADIO BRKT 2 Rp18.500
8 09148-05045-000
SUB: 09148B05045N000		 NUT (M5) 4 Rp4.000
9 02142-0508A-000
SUB: 02142B0508AN000		 SCREW 4 Rp3.500
10 03241-0512A-000
SUB: 03241B0512AN000		 SCREW 4 Rp3.500
11 03541-0516A-000 SCREW 4 Rp3.500
12 39250-52S00-000 ANTENNA ASSY 1 Rp155.000
13 39270-52S00-000 FEEDER,I/P 1 Rp65.000
14 09129-04003-000 SCREW (4X12) 2 Rp18.500
15 39102-52S00-000 SPEAKER ASSY 2 Rp137.000
16 09148-05045-000
SUB: 09148B05045N000		 NUT (M5) 4 Rp4.000
17 03141-0516B-000 SCREW 4 Rp3.500
18 37275-67L00-000
SUB: 37275B67L00N000		 CAP,CGLTR HOLE 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
