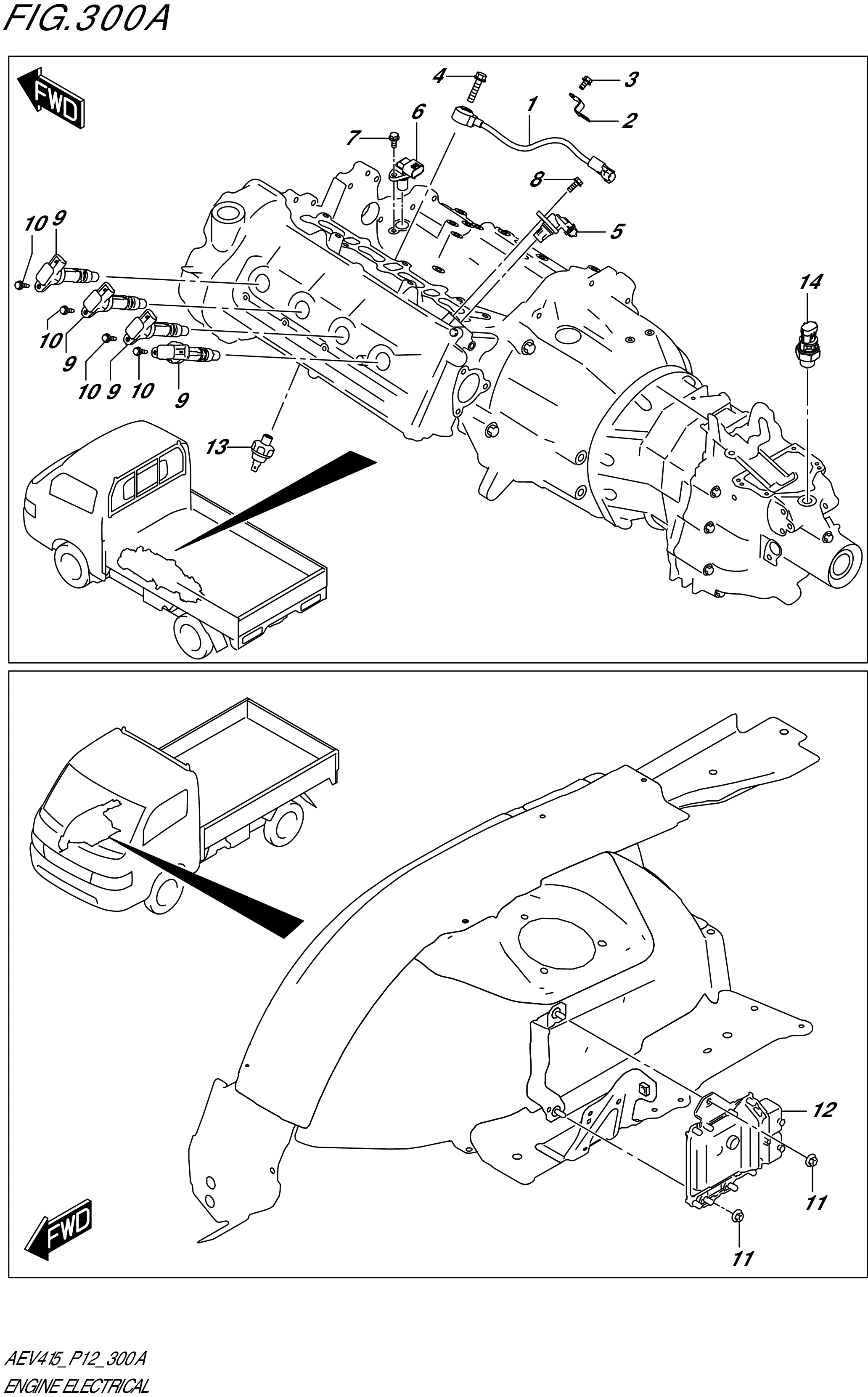

FIG. 300A- ENGINE ELECTRICAL

FIG. 300A- ENGINE ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 18640-52S00-000 SENSOR ASSY,KNOCK 1 Rp171.500
2 18645-52S00-000 BRACKET,KNOCK SENSOR 1 Rp8.500
3 01550-0612C-000 BOLT (6X12) 1 Rp19.500
4 01550-0835A-000 BOLT (8X35) 1 Rp3.500
5 33220-64L10-000 SENSOR ASSY,POSN 1 Rp883.000
6 33220-86P00-000 SENSOR ASSY,CAM POSN 1 Rp869.500
7 09103-06283-000 BOLT (6X16) 1 Rp20.500
8 01550-0616A-000 BOLT (6X16) 1 Rp3.500
9 33400-52S00-000 COIL ASSY,IGNITION 4 Rp274.000
10 09135-06024-000 BOLT (6X23) 4 Rp16.500
11 09159-06076-000 NUT (M6) 2 Rp19.500
12 33920-52S02-000
SUB: 33920-52S00-000		 CONTROLLER ASSY,EPI 1 Rp1.787.500
13 37820-80GP0-000 SWITCH ASSY,OIL PRESSURE 1 Rp144.000
14 37610-61J00-000 SWITCH ASSY,BACKUP LAMP 1 Rp181.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
