NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 300A- ENGINE ELECTRICALFIG. 302A- STARTING MOTORFIG. 304A- GENERATOR (N_AC)FIG. 304B- GENERATOR (W_MN_AC)FIG. 320A- BATTERYFIG. 324A- SPEEDOMETERFIG. 330A- HEADLAMPFIG. 336A- REAR LAMPFIG. 348A- ENGINE HARNESS BRACKETFIG. 350A- ELECTRICAL CONTROL BODYFIG. 351A- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG. 30JA GENERATOR BRACKETFIG. 34NA - WIRING HARNESS FRONT SIDEFIG. 34PA WIRING HARNESS REAR SIDE

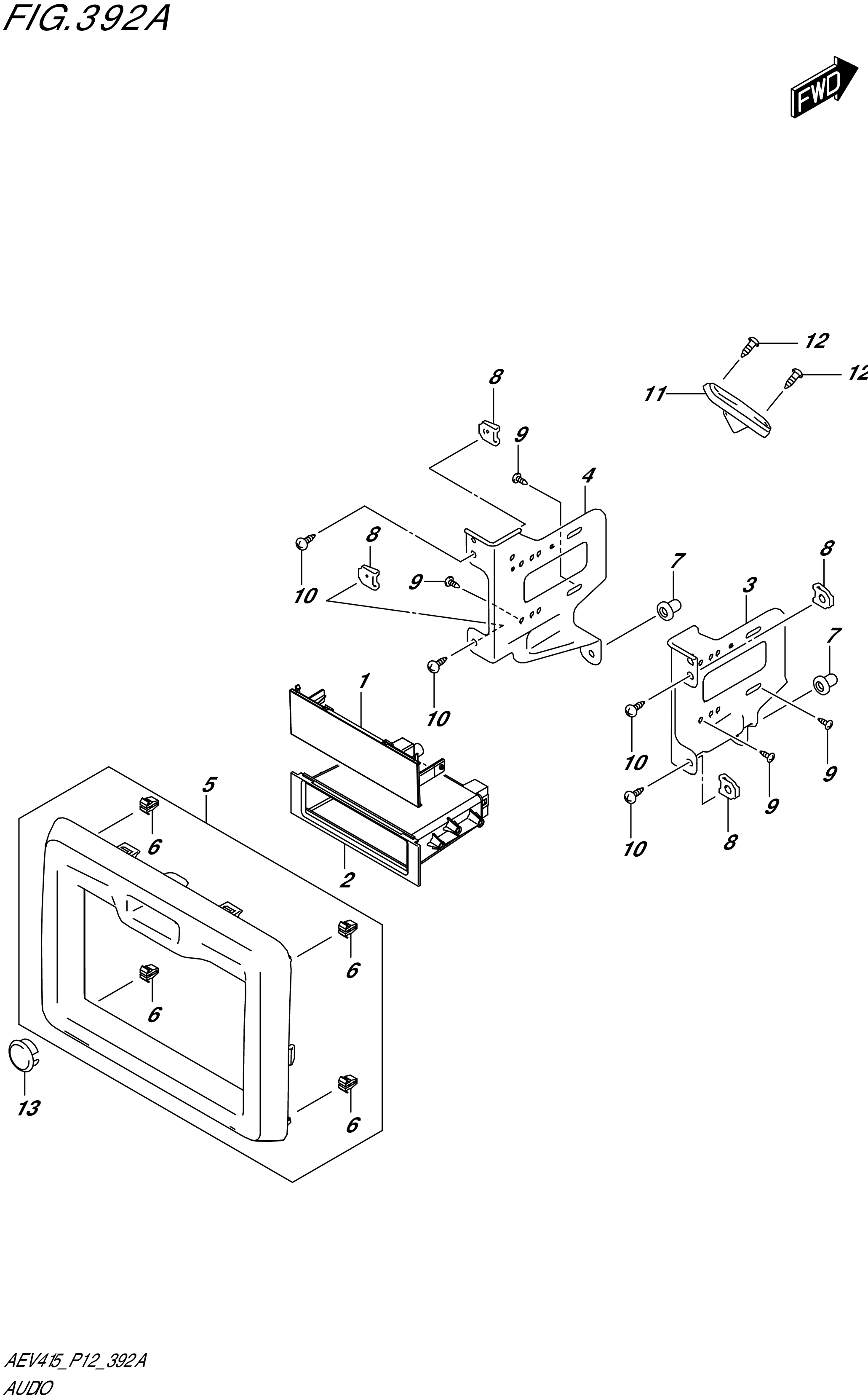

FIG. 392A- AUDIO (N_TUNER)

FIG. 392A- AUDIO (N_TUNER)
No No. Part Description Qty Price Per Pcs Remarks
1 39161-77M01-000
SUB: 39161B77M00N000		 COVER,RADIO HOLE 1 Rp13.000
2 39182-77M10-000
SUB: 39182B77M10N000		 POCKET,TUNER 1 Rp38.000
3 39321-52S00-000 BRACKET,TUNER,R 1 Rp23.000
4 39322-52S00-000 BRACKET,TUNER,L 1 Rp23.000
5 73821-52S00-5PK GARNISH,I/P CTR (BLACK) 1 Rp19.000
6 09409-08351-000 .CLIP 4 Rp21.000
7 34955-59J00-000 BUSH,RADIO BRKT 2 Rp18.500
8 09148-05045-000
SUB: 09148B05045N000		 NUT (M5) 4 Rp4.000
9 03241-0512A-000
SUB: 03241B0512AN000		 SCREW 4 Rp3.500
10 03541-0516A-000 SCREW 4 Rp3.500
11 39262-52S00-000 COVER,ANT HOLE 1 Rp83.500
12 09129-04003-000 SCREW (4X12) 2 Rp18.500
13 37275-67L00-000
SUB: 37275B67L00N000		 CAP,CGLTR HOLE 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
