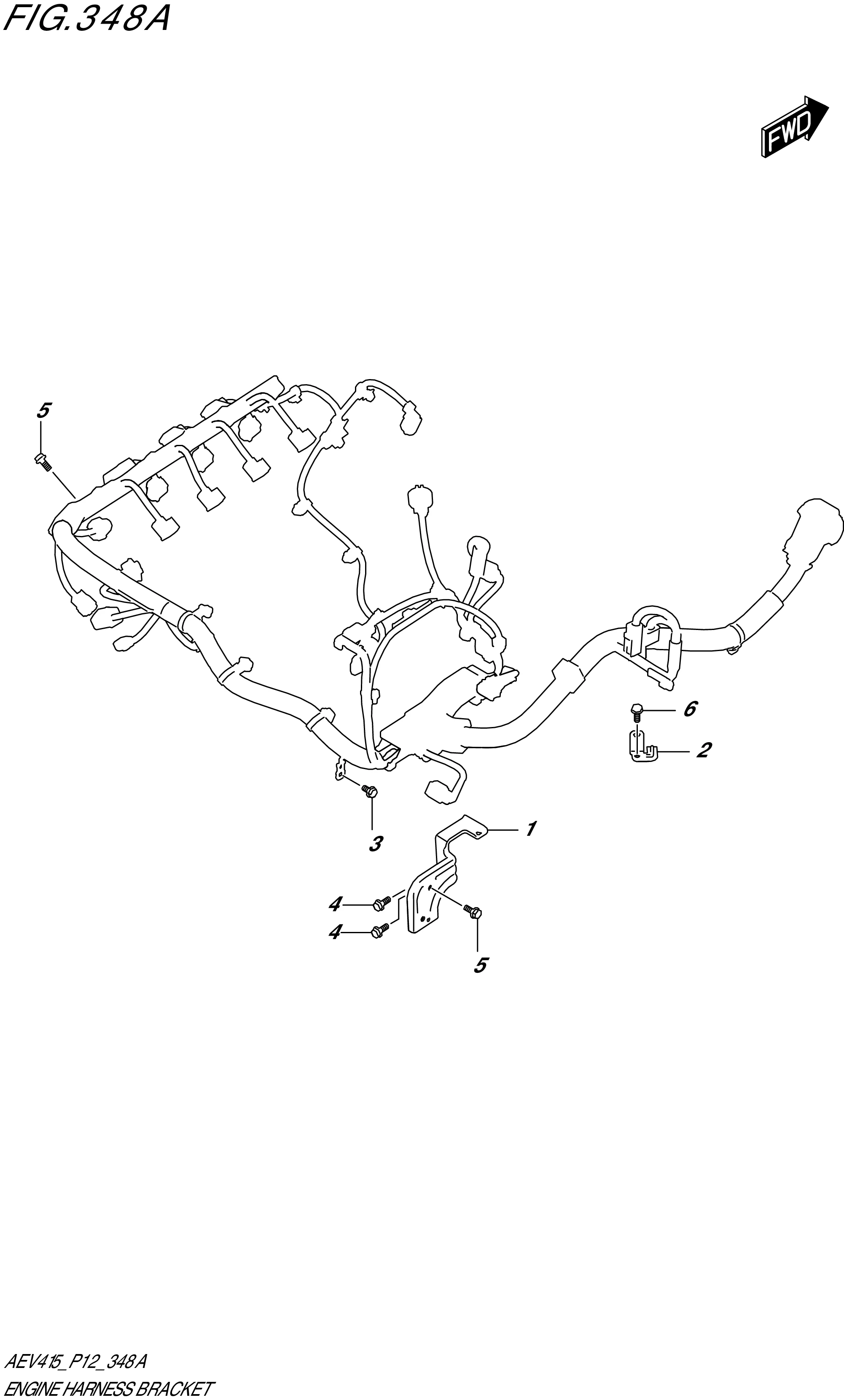

FIG. 348A- ENGINE HARNESS BRACKET

FIG. 348A- ENGINE HARNESS BRACKET
No No. Part Description Qty Price Per Pcs Remarks
1 36651-52S10-000 BRACKET,ENG HARN PROTECTOR 1 Rp21.500
2 36651-52S20-000 BRACKET,ENG HARN 1 Rp8.500
3 01550M0612A-000 BOLT (6X12) 1 Rp5.000
4 01550-0616A-000 BOLT (6X16) 2 Rp3.500
5 01550-0616A-000 BOLT (6X16) 2 Rp3.500
6 01551-0616C-000 BOLT (6X16) 1 Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
