NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 300A- ENGINE ELECTRICALFIG. 302A- STARTING MOTORFIG. 304A- GENERATOR (N_AC)FIG. 304B- GENERATOR (W_MN_AC)FIG. 320A- BATTERYFIG. 324A- SPEEDOMETERFIG. 330A- HEADLAMPFIG. 336A- REAR LAMPFIG. 348A- ENGINE HARNESS BRACKETFIG. 350A- ELECTRICAL CONTROL BODYFIG. 351A- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG. 30JA GENERATOR BRACKETFIG. 34NA - WIRING HARNESS FRONT SIDEFIG. 34PA WIRING HARNESS REAR SIDE

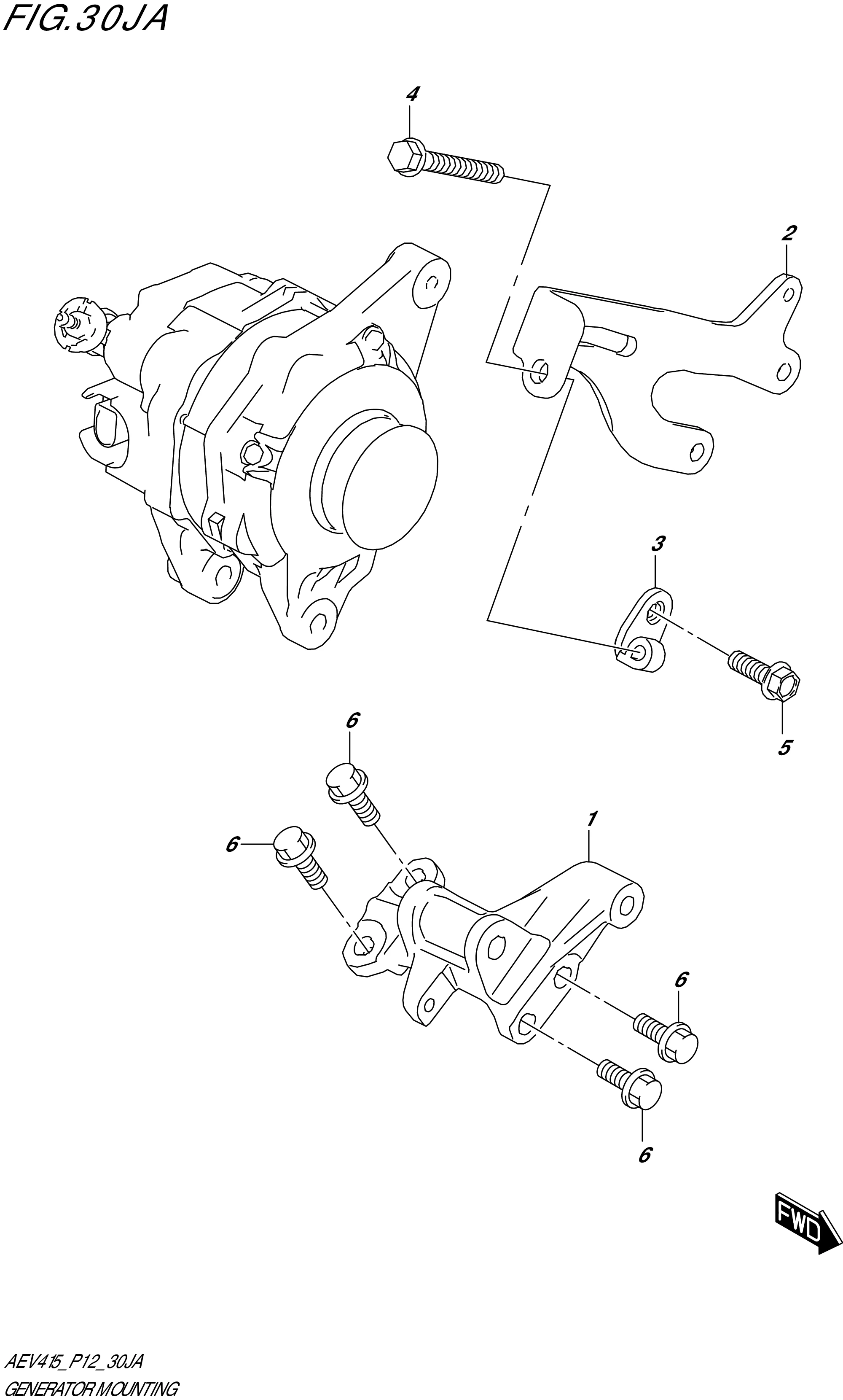

FIG. 30JA GENERATOR BRACKET

FIG. 30JA GENERATOR BRACKET
No No. Part Description Qty Price Per Pcs Remarks
1 11551-52S00-000 BRACKET,GENERATOR 1 Rp231.000
2 11561-52S00-000 ARM,GEN BELT ADJ 1 Rp121.000
3 11562-52S00-000 ADJUSTER,GEN BELT 1 Rp23.000
4 11563-68M00-000 BOLT,GENERATOR ADJUSTING 1 Rp31.500
5 17545-50M00-000 BOLT,BELT TENSIONER 1 Rp22.500
6 01550-0825A-000 BOLT (8X25) 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
