NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 300A- ENGINE ELECTRICALFIG. 302A- STARTING MOTORFIG. 304A- GENERATOR (N_AC)FIG. 304B- GENERATOR (W_MN_AC)FIG. 320A- BATTERYFIG. 324A- SPEEDOMETERFIG. 330A- HEADLAMPFIG. 336A- REAR LAMPFIG. 348A- ENGINE HARNESS BRACKETFIG. 350A- ELECTRICAL CONTROL BODYFIG. 351A- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG. 30JA GENERATOR BRACKETFIG. 34NA - WIRING HARNESS FRONT SIDEFIG. 34PA WIRING HARNESS REAR SIDE

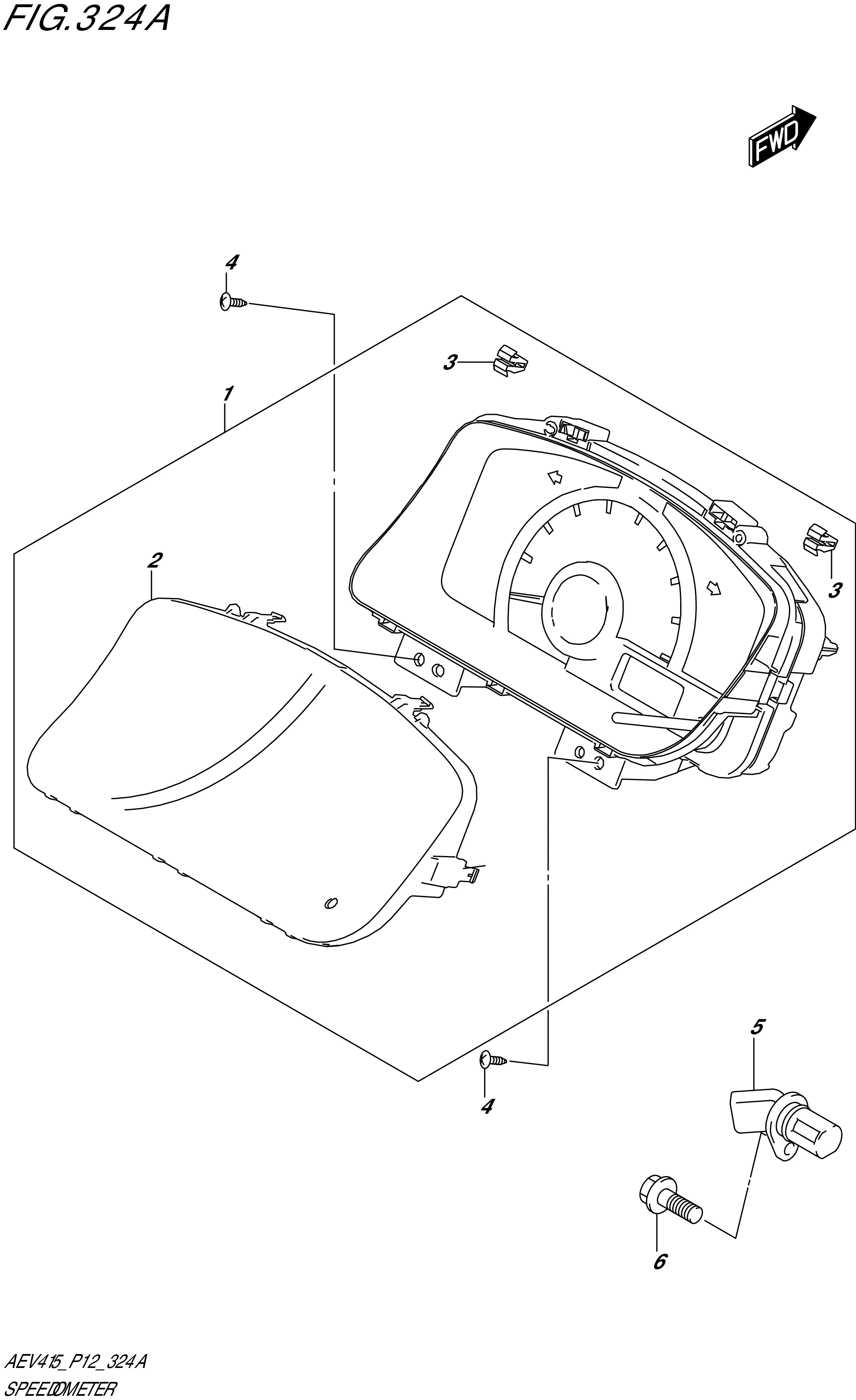

FIG. 324A- SPEEDOMETER

FIG. 324A- SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1-1 34100-52S01-000
SUB: 34100-52S00-000		 SPEEDOMETER ASSY,COMB 1 Rp971.500
1-2 34100-52S21-000
SUB: 34100-52S20-000		 SPEEDOMETER ASSY,COMB 1 Rp947.500
2 34112-52S00-000 .GLASS,METER WINDOW 1 Rp191.500
3 09409-08349-000 .CLIP 2 Rp4.500
4 03541-0516A-000 SCREW 2 Rp3.500
5 34960M77P00-000 SENSOR ASSY,SPEED 1 Rp292.000
6 01550-0616A-000 BOLT (6X16) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
