NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 300A- ENGINE ELECTRICALFIG. 302A- STARTING MOTORFIG. 304A- GENERATOR (N_AC)FIG. 304B- GENERATOR (W_MN_AC)FIG. 320A- BATTERYFIG. 324A- SPEEDOMETERFIG. 330A- HEADLAMPFIG. 336A- REAR LAMPFIG. 348A- ENGINE HARNESS BRACKETFIG. 350A- ELECTRICAL CONTROL BODYFIG. 351A- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG. 30JA GENERATOR BRACKETFIG. 34NA - WIRING HARNESS FRONT SIDEFIG. 34PA WIRING HARNESS REAR SIDE

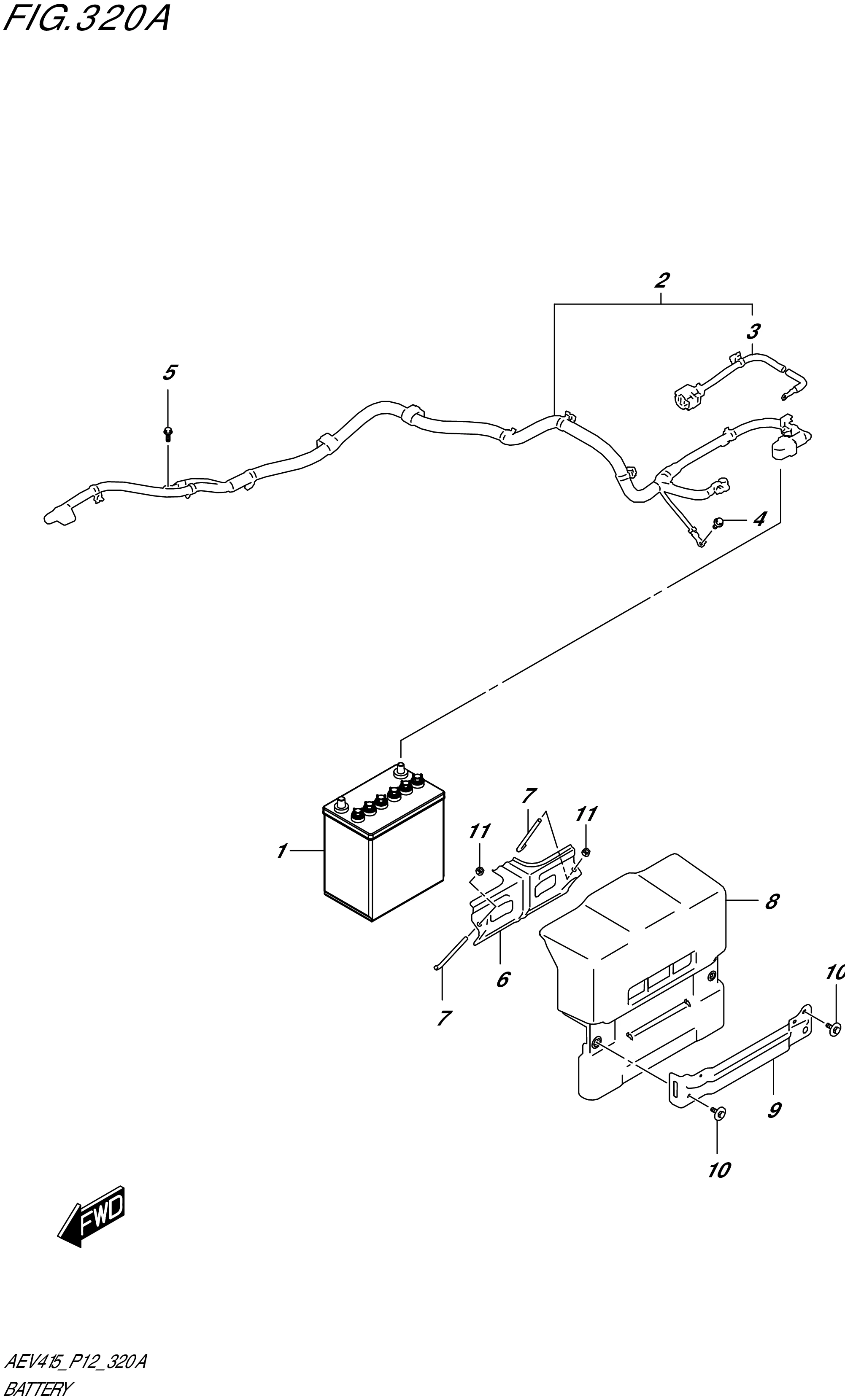

FIG. 320A- BATTERY

FIG. 320A- BATTERY
No No. Part Description Qty Price Per Pcs Remarks
1 33610-73R00-000 BATTERY (34B19L FB) 1 Rp1.061.500
2 33800-52S10-000 CABLE,BTRY 1 Rp909.000
3 36740-52S00-000 .FUSIBLE LINK ASSY 1 Rp77.000
4 09115-06005-000 BOLT (6X16) 1 Rp14.000
5 DISCONTINUE
SUB: 01550-0816C-000		 BOLT 1 -
6 72511-52S00-000 BAND,BATTERY 1 Rp60.000
7 72513-52S00-000 BOLT,BATTERY 2 Rp32.000
8 72521-52S00-000 COVER,BATTERY 1 Rp67.500
9 72522-52S00-000 PROTECTOR,BATTERY 1 Rp26.000
10 72523-52S00-000 BOLT,BATTERY COVER 2 Rp19.000
11 08316-1006A-000 NUT (6X12) 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
