NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 300A- ENGINE ELECTRICALFIG. 302A- STARTING MOTORFIG. 304A- GENERATOR (N_AC)FIG. 304B- GENERATOR (W_MN_AC)FIG. 320A- BATTERYFIG. 324A- SPEEDOMETERFIG. 330A- HEADLAMPFIG. 336A- REAR LAMPFIG. 348A- ENGINE HARNESS BRACKETFIG. 350A- ELECTRICAL CONTROL BODYFIG. 351A- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG. 30JA GENERATOR BRACKETFIG. 34NA - WIRING HARNESS FRONT SIDEFIG. 34PA WIRING HARNESS REAR SIDE

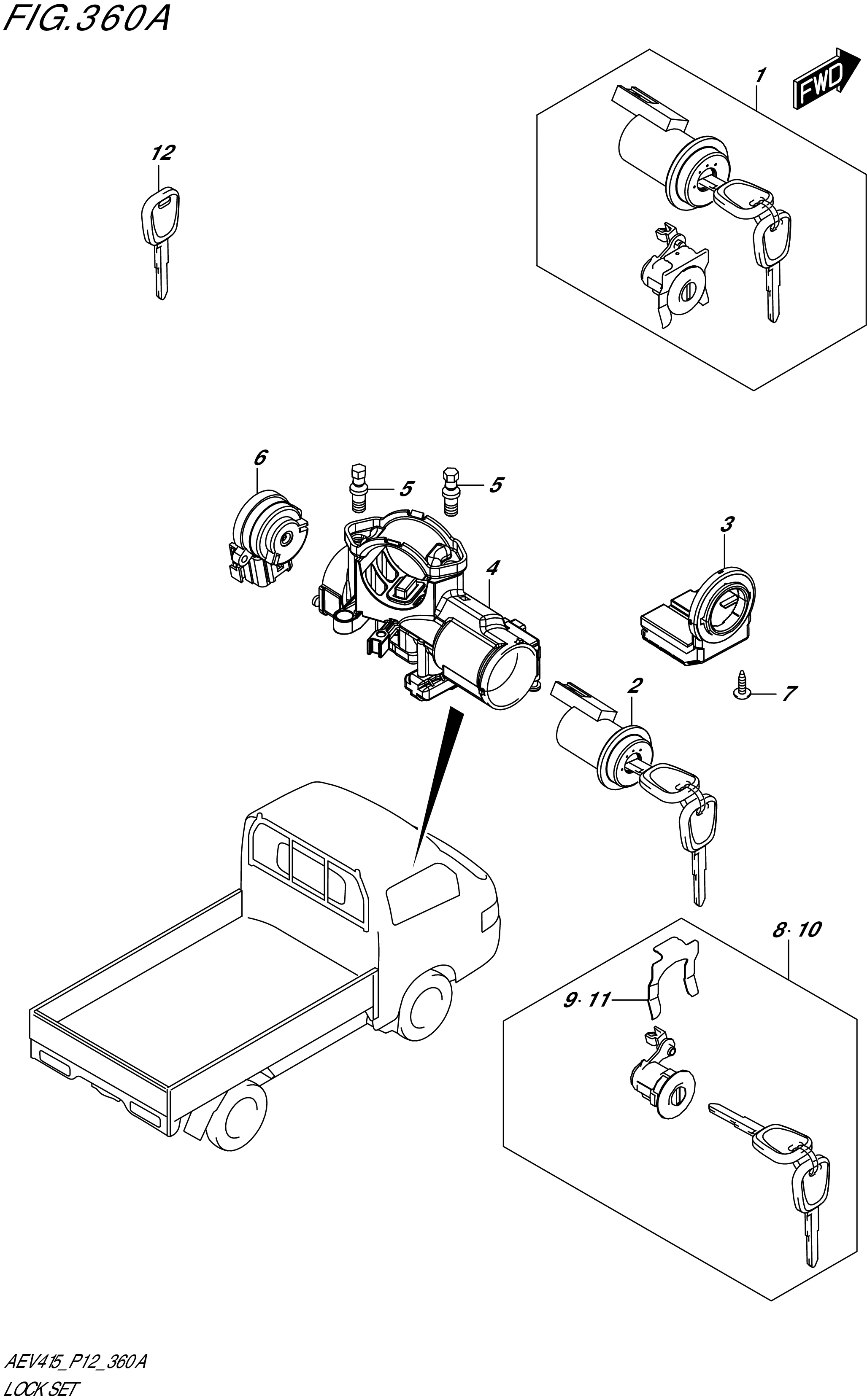

FIG. 360A- LOCK SET

FIG. 360A- LOCK SET
No No. Part Description Qty Price Per Pcs Remarks
1 37105-73850-000 LOCK SET 1 Rp490.000
2 37104-73820-000 LOCK ASSY,STEERING 1 Rp378.500
3 33970-73R00-000 CONTROLLER ASSY,IMM 1 Rp169.500
4 37101-73R20-000 BODY,STEERING LOCK 1 Rp452.500
5 37152-59R00-000 .BOLT, STEERING LOCK 2 Rp6.000
6 37111-59R01-000 SWITCH 1 Rp118.500
7 37152-59R10-000 SCREW, IMM CONT 1 Rp4.500
8 82270-52870-000 CYLINDER SET,FR DR LATCH,R 1 Rp337.500
9 89345-60B00-000 .CLIP,FUEL FILLER LID KEY LOCK 1 Rp25.500
10 82280-52870-000 CYLINDER SET,FR DR LATCH,L 1 Rp338.000
11 89345-60B00-000 .CLIP,FUEL FILLER LID KEY LOCK 1 Rp25.500
12 37145-73R00-000 KEY,BLANK 1 Rp228.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
