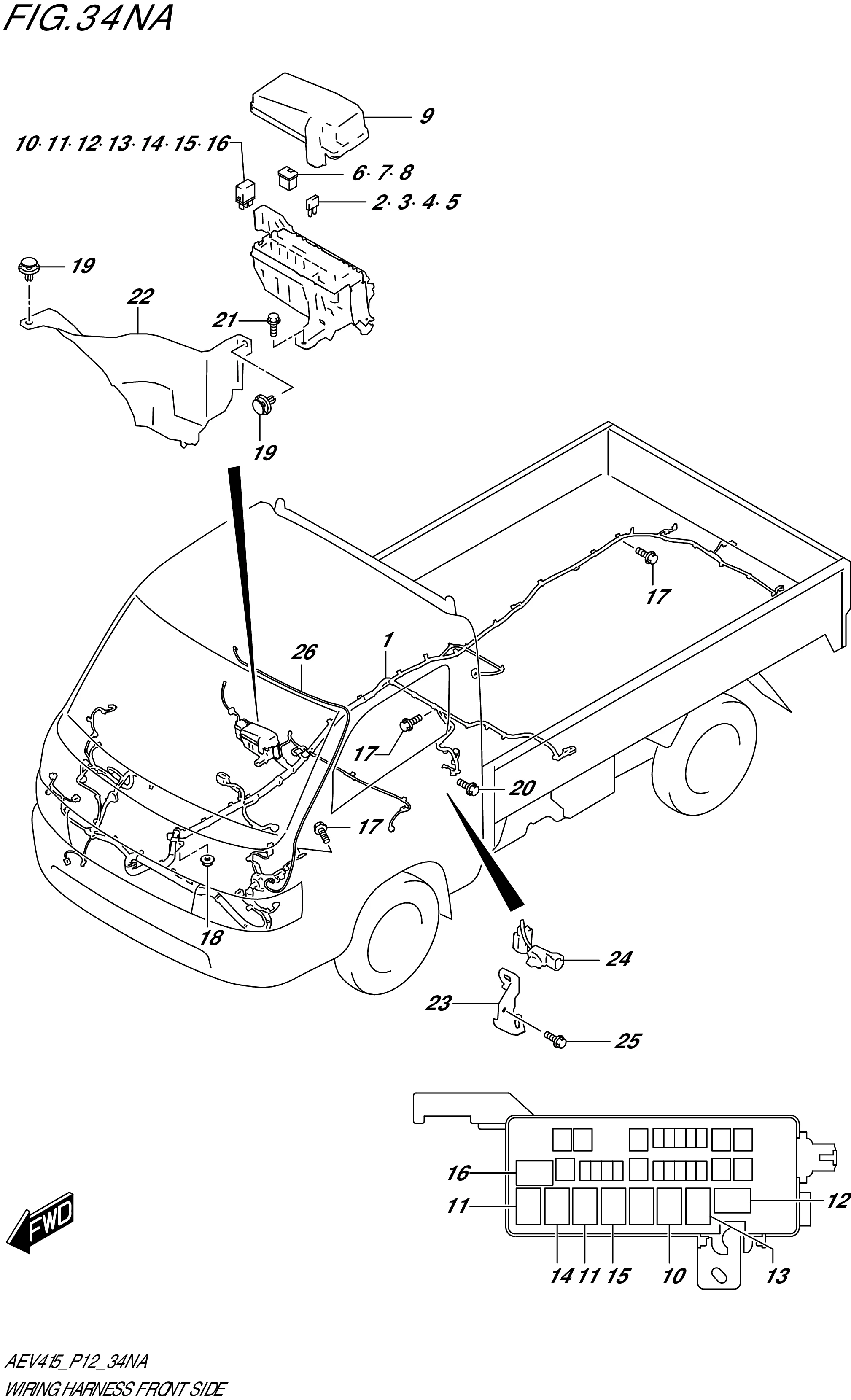

FIG. 34NA - WIRING HARNESS FRONT SIDE

FIG. 34NA - WIRING HARNESS FRONT SIDE
No No. Part Description Qty Price Per Pcs Remarks
1-2 36610-52S20-000 HARNESS ASSY,MAIN 1 Rp3.595.000
1-3 36610-52S60-000 HARNESS ASSY,MAIN 1 Rp3.404.000
1-4 36610-52S70-000 HARNESS ASSY,MAIN 1 Rp3.707.500
1-1 36610-52S10-000 HARNESS ASSY,MAIN 1 Rp3.290.500
2-1 09481-10504-000 .FUSE (10A) 1 Rp12.500
2-2 09481-10504-000 .FUSE (10A) 2 Rp12.500
3 09481-15504-000 .FUSE (15A) 4 Rp13.000
4 09481-25504-000 .FUSE (25A) 1 Rp17.500
5 09481-30504-000 .FUSE (30A) 1 Rp15.000
6-1 09481-30403-000 .FUSE (30A) 2 Rp41.000
6-2 09481-30403-000 .FUSE (30A) 3 Rp41.000
7 09481M40403-000 .FUSE (40A) 2 Rp22.500
8 09481-60403-000 .FUSE (60A) 1 Rp52.000
9 36738-52S00-000 .COVER,RELAY BOX 1 Rp123.500
10 38860-77M00-000
SUB: 38860B77M00N000		 .RELAY ASSY 1 Rp45.000
11 38860-77M00-000
SUB: 38860B77M00N000		 .RELAY ASSY 2 Rp45.000
12 38860-77M00-000
SUB: 38860B77M00N000		 .RELAY ASSY 1 Rp45.000
13 38860-77M00-000
SUB: 38860B77M00N000		 .RELAY ASSY 1 Rp45.000
14 38860-77M00-000
SUB: 38860B77M00N000		 RELAY ASSY 1 Rp45.000
15 38860-77M00-000
SUB: 38860B77M00N000		 RELAY ASSY 1 Rp45.000
16 38860-77M00-000
SUB: 38860B77M00N000		 RELAY ASSY 1 Rp45.000
17 09115-06005-000 BOLT (6X16) 3 Rp14.000
18 09159-06076-000 NUT (M6) 1 Rp19.500
19 09409-07340-000 CLIP (6.8X11.5) 2 Rp17.500
20 01550M0612A-000 BOLT (6X12) 1 Rp5.000
21 01551-0616C-000 BOLT (6X16) 1 Rp14.500
22 33842-52S00-000 COVER,RELAY BOX FRONT 1 Rp37.500
23 36651-52S00-000 BRACKET,MAIN HARN 1 Rp26.000
24 36825-52S00-000 WIRE,BACK UP SW 1 Rp67.000
25 01550M0612A-000 BOLT (6X12) 1 Rp5.000
26 36820-52S10-000 WIRE,ROOF 1 Rp61.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
