NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 300A- ENGINE ELECTRICALFIG. 302A- STARTING MOTORFIG. 304A- GENERATOR (N_AC)FIG. 304B- GENERATOR (W_MN_AC)FIG. 320A- BATTERYFIG. 324A- SPEEDOMETERFIG. 330A- HEADLAMPFIG. 336A- REAR LAMPFIG. 348A- ENGINE HARNESS BRACKETFIG. 350A- ELECTRICAL CONTROL BODYFIG. 351A- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG. 30JA GENERATOR BRACKETFIG. 34NA - WIRING HARNESS FRONT SIDEFIG. 34PA WIRING HARNESS REAR SIDE

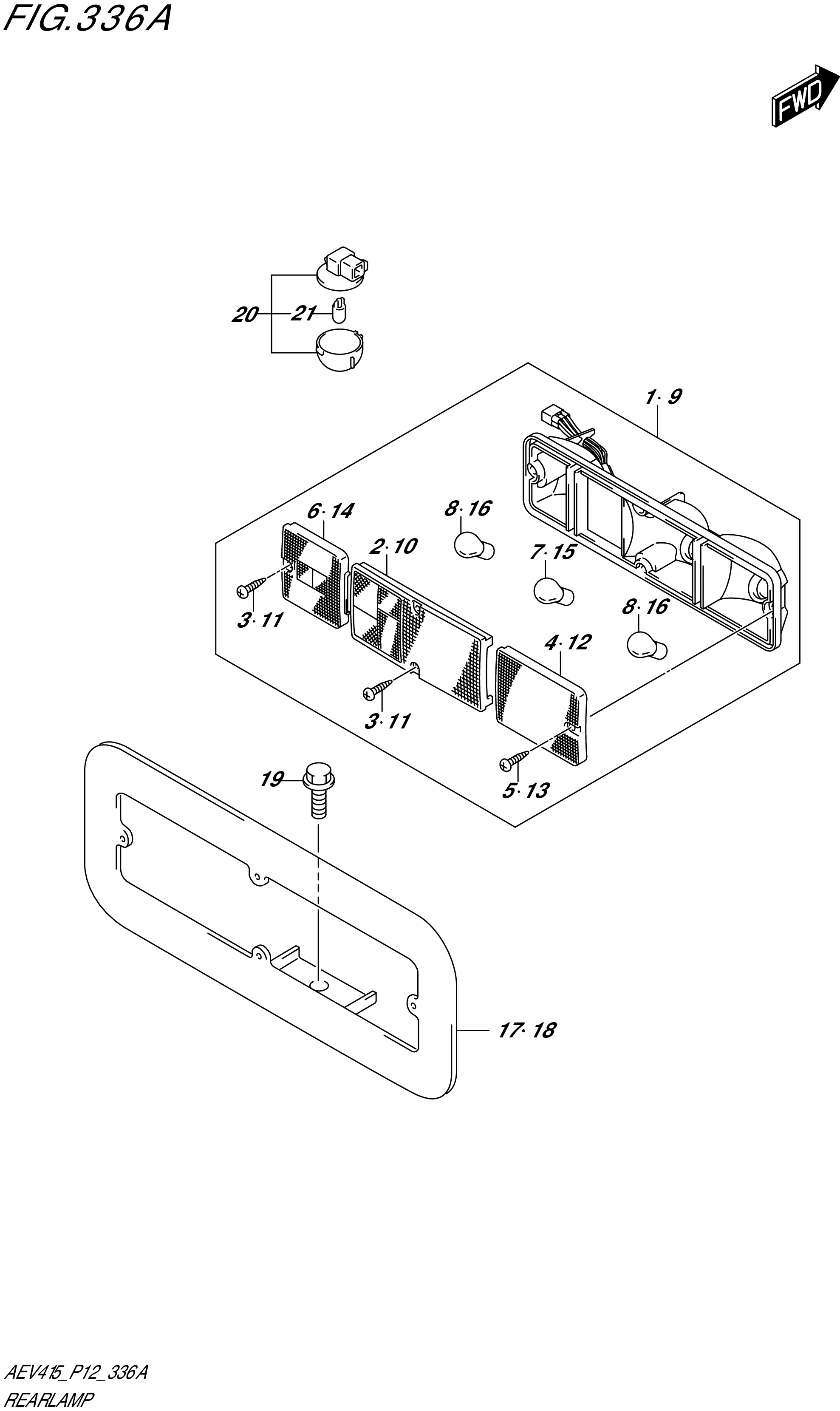

FIG. 336A- REAR LAMP

FIG. 336A- REAR LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35603-52S00-000 LAMP ASSY,RR COMB,R 1 Rp726.000
2 35712-61J10-000 .LENS, TAIL & STOP 1 Rp36.000
3 03111-0525C-000 .SCREW 3 Rp5.500
4 35652-61J10-000 .LENS,TURN SIGNAL 1 Rp14.500
5 03111-0525C-000 .SCREW 1 Rp5.500
6 35252-61J10-000 .LENS,BACK UP RH 1 Rp12.500
7 09471-12046-000
SUB: 09471B12046N000		 .BULB (12V21/5W) 1 Rp21.500
8 09471-12045-000
SUB: 09471B12045N000		 .BULB (12V21W) 2 Rp13.500
9 35604-52S00-000 LAMP ASSY,RR COMB,L 1 Rp726.000
10 35712-61J10-000 .LENS, TAIL & STOP 1 Rp36.000
11 03111-0525C-000 .SCREW 3 Rp5.500
12 35652-61J10-000 .LENS,TURN SIGNAL 1 Rp14.500
13 03111-0525C-000 .SCREW 1 Rp5.500
14 35272-61J10-000 .LENS,BACK UP LH 1 Rp12.500
15 09471-12046-000
SUB: 09471B12046N000		 .BULB (12V21/5W) 1 Rp21.500
16 09471-12045-000
SUB: 09471B12045N000		 .BULB (12V21W) 2 Rp13.500
17 35693-52S00-000 BRACKET,REAR COMB LAMP,R 1 Rp50.500
18 35694-52S00-000 BRACKET,REAR COMB LAMP,L 1 Rp51.500
19 01551-1016A-000 BOLT 2 Rp24.500
20 35910-81K00-000
SUB: 35910B81K00N000		 LAMP ASSY,LICENSE 1 Rp38.500
21 09471-12216-000 .BULB (12V5W) 1 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
