NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 300A- ENGINE ELECTRICALFIG. 302A- STARTING MOTORFIG. 304A- GENERATOR (N_AC)FIG. 304B- GENERATOR (W_MN_AC)FIG. 320A- BATTERYFIG. 324A- SPEEDOMETERFIG. 330A- HEADLAMPFIG. 336A- REAR LAMPFIG. 348A- ENGINE HARNESS BRACKETFIG. 350A- ELECTRICAL CONTROL BODYFIG. 351A- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG. 30JA GENERATOR BRACKETFIG. 34NA - WIRING HARNESS FRONT SIDEFIG. 34PA WIRING HARNESS REAR SIDE

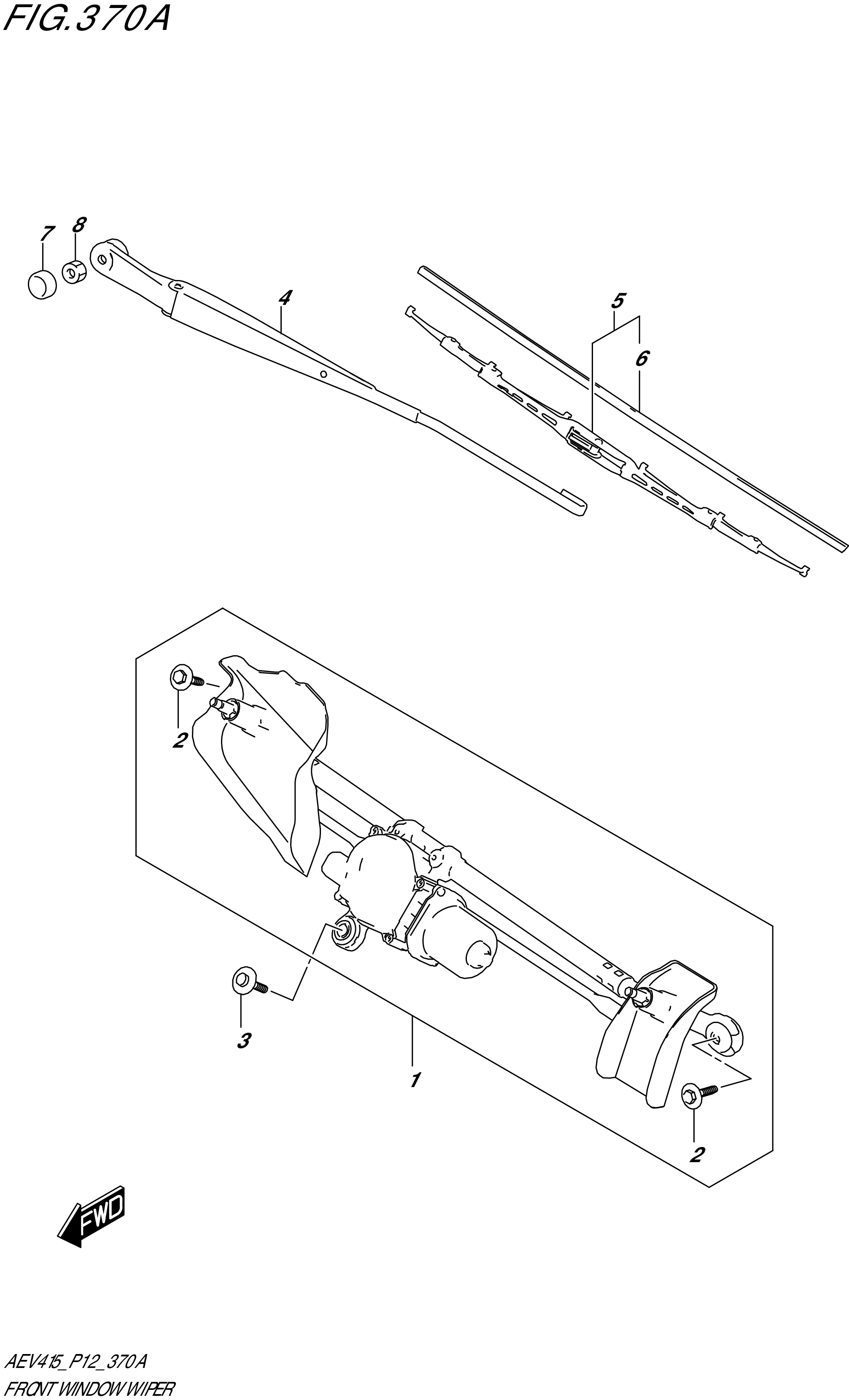

FIG. 370A- FRONT WINDOW WIPER

FIG. 370A- FRONT WINDOW WIPER
No No. Part Description Qty Price Per Pcs Remarks
1 38100-52S10-000 WIPER ASSY,WINDSHIELD 1 Rp1.126.000
2 38116-73H00-000 .BOLT,WIPER MOTOR 2 Rp41.500
3 09116-06172-000 BOLT (6X30) 1 Rp19.500
4 38310-52S10-000 ARM ASSY,WIPER 2 Rp161.000
5 38340-52S10-000 BLADE ASSY,WIPER 2 Rp81.000
6 38346-52S00-000 .RUBBER,BLADE 2 Rp65.000
7 38315-67L10-000
SUB: 38315B67L10N000		 CAP,WIPER PIVOT 2 Rp4.500
8 08310-0008A-000 NUT 2 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
