  5. FIG. 351A- ELECTRICAL CONTROL INSTRUMENTAL PANEL

NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 300A- ENGINE ELECTRICALFIG. 302A- STARTING MOTORFIG. 304A- GENERATOR (N_AC)FIG. 304B- GENERATOR (W_MN_AC)FIG. 320A- BATTERYFIG. 324A- SPEEDOMETERFIG. 330A- HEADLAMPFIG. 336A- REAR LAMPFIG. 348A- ENGINE HARNESS BRACKETFIG. 350A- ELECTRICAL CONTROL BODYFIG. 351A- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG. 30JA GENERATOR BRACKETFIG. 34NA - WIRING HARNESS FRONT SIDEFIG. 34PA WIRING HARNESS REAR SIDE

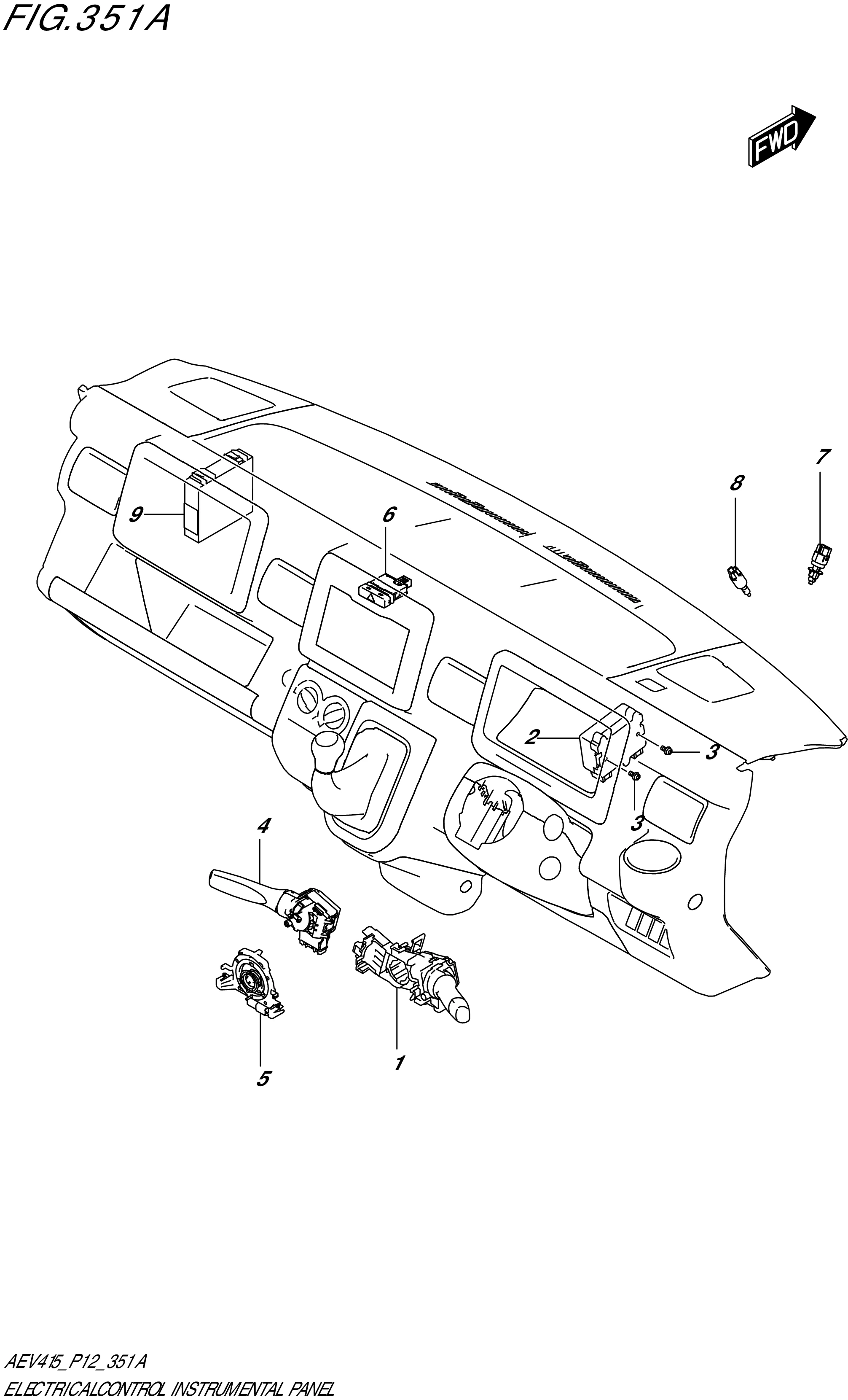

FIG. 351A- ELECTRICAL CONTROL INSTRUMENTAL PANEL

FIG. 351A- ELECTRICAL CONTROL INSTRUMENTAL PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 37210-73R00-000 SWITCH ASSY,LIGHTING & TURN 1 Rp162.500
2 38720-52S00-000 CONTROLLER ASSY,EPS 1 Rp1.525.000
3 02162-0508A-000 SCREW 2 Rp3.500
4 37310-52S00-000 SWITCH ASSY,WIPER & WASHER 1 Rp122.000
5 37485-52S00-000 BODY ASSY,CANCEL CAM & HORN 1 Rp54.500
6 37430M67L00-5PK SWITCH ASSY,HAZARD WARNING 1 Rp148.000
7 37740-61J00-000 SET,STOP LAMP SW 1 Rp46.000
8 37970M74L02-000
SUB: 37970M74L01-000		 SWITCH ASSY,CLUTCH 1 Rp165.500
9 36775-52S00-000 CONTROLLER ASSY,BODY ELEC 1 Rp631.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
