NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 300A- ENGINE ELECTRICALFIG. 302A- STARTING MOTORFIG. 304A- GENERATOR (N_AC)FIG. 304B- GENERATOR (W_MN_AC)FIG. 320A- BATTERYFIG. 324A- SPEEDOMETERFIG. 330A- HEADLAMPFIG. 336A- REAR LAMPFIG. 348A- ENGINE HARNESS BRACKETFIG. 350A- ELECTRICAL CONTROL BODYFIG. 351A- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG. 30JA GENERATOR BRACKETFIG. 34NA - WIRING HARNESS FRONT SIDEFIG. 34PA WIRING HARNESS REAR SIDE

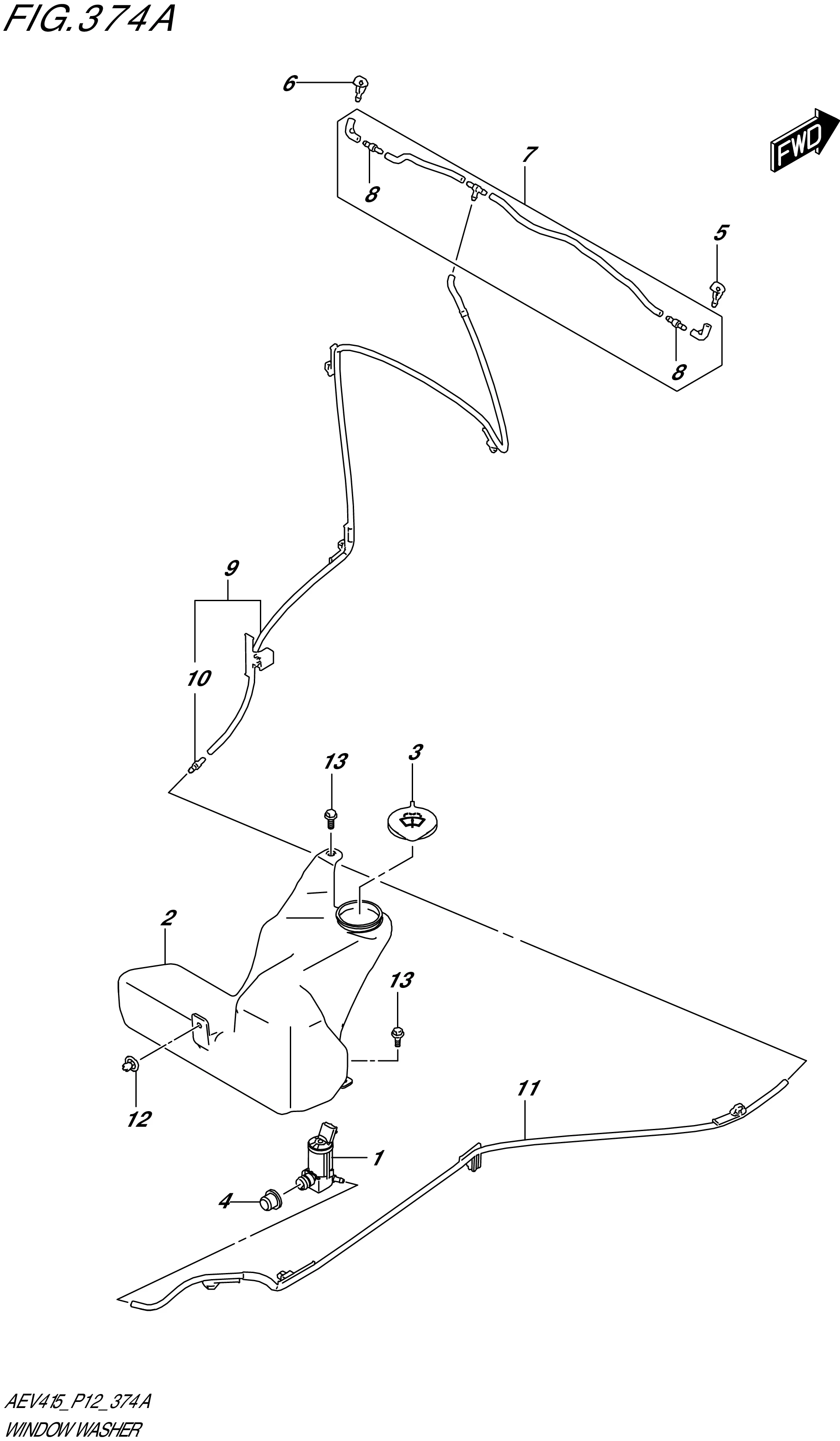

FIG. 374A- WINDOW WASHER

FIG. 374A- WINDOW WASHER
No No. Part Description Qty Price Per Pcs Remarks
1 38410-73R00-000 PUMP,WASHER 1 Rp129.000
2 38450-52S00-000 TANK,WASHER 1 Rp149.500
3 38452-73R00-000 CAP,WASHER TANK 1 Rp16.500
4 38453-61L00-000 GROMMET 1 Rp7.500
5 38480-52S00-000 NOZZLE,WASHER 1 Rp20.500
6 38480-52S10-000 NOZZLE,WASHER 1 Rp20.500
7 38832-52S00-000 HOSE ASSY,FR WASHER NO.1 1 Rp51.000
8 38496-56B00-000 .CONNECTOR 2 Rp33.500
9 38832-52S11-000
SUB: 38832-52S10-000		 HOSE ASSY,FR WASHER NO.2 1 Rp50.000
10 38496-56B00-000 .CONNECTOR 1 Rp33.500
11 38832-52S21-000
SUB: 38832-52S20-000		 HOSE ASSY,FR WASHER NO.3 1 Rp40.000
12 09409-07340-000 CLIP (6.8X11.5) 1 Rp17.500
13 02162-0616A-000 SCREW (6X16) 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
