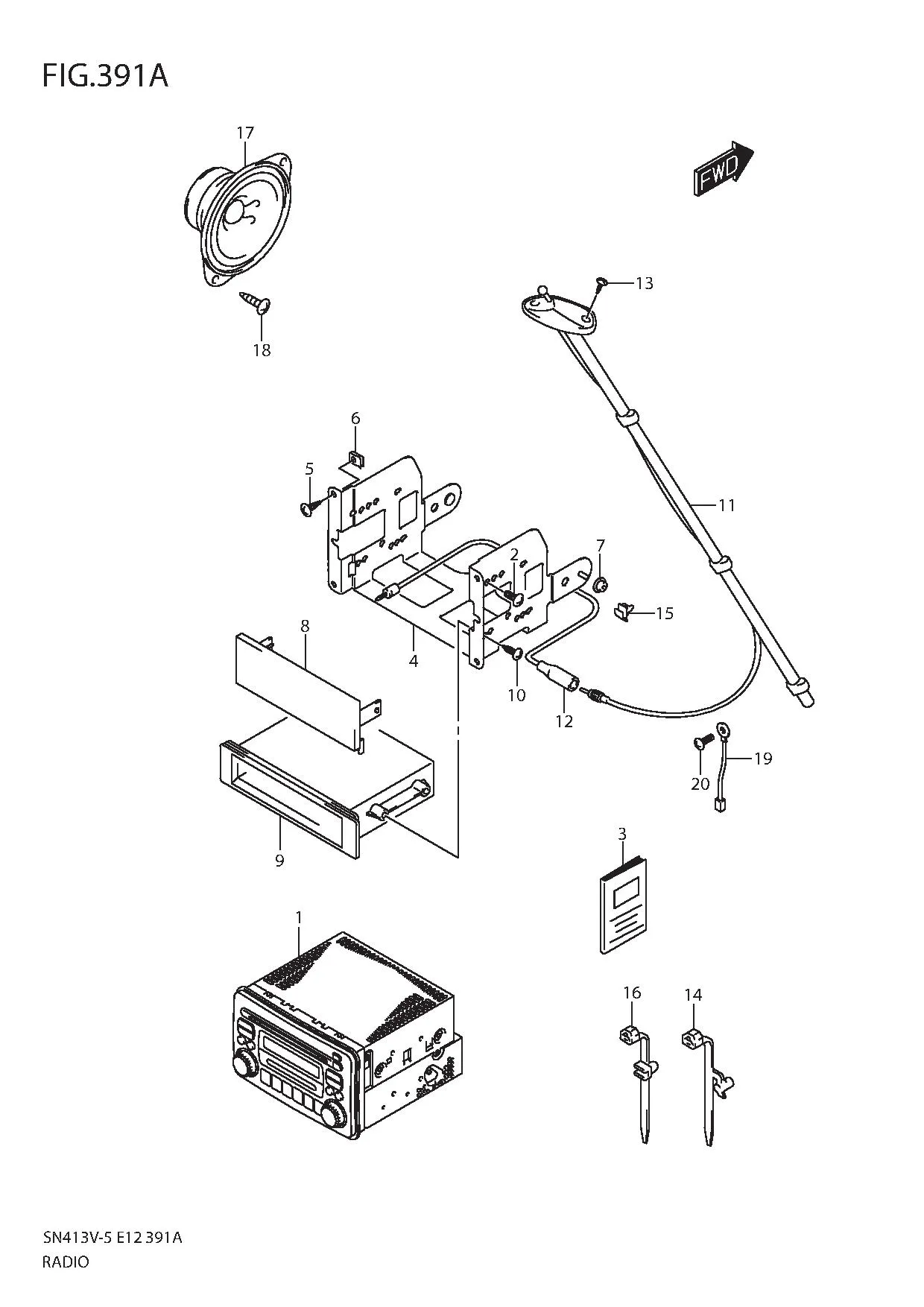

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 39101-76J11-000	TUNER ASSY	1	-	W_TUNER
1-1	DISCONTINUE SUB: 39101-76J01-000	TUNER ASSY	1	-	W_TUNER
2	02142-0508A-000 SUB: 02142B0508AN000	SCREW	8	Rp3.500	W_TUNER
3	39103-76JA0-000	MANUAL, AUDIO	1	Rp197.000
4	39321-76J00-000	BRACKET, TUNER	1	Rp172.000
5	03141-0516B-000 SUB: 03141M0512A-000	SCREW	4	Rp3.500
6	09148-05045-000 SUB: 09148B05045N000	NUT	2	Rp4.000
7	34955M54G10-000	BUSH	2	Rp6.500
8	DISCONTINUE SUB: 39161-74G00-000	COVER, RADIO HOLE	1	-
9	39182-77M10-000 SUB: 39182-70E51-000	POCKET, TUNER	1	Rp38.000	N_TUNER
10	03541-0512B-000 SUB: 03541B0512BN000	SCREW	4	Rp4.000	N_TUNER
11	39250-81A01-000	ANTENNA ASSY	1	Rp653.000
12	39271-76J00-000	FEEDER, INSTRUMENT PANEL	1	Rp282.000
13	09129-04003-000	SCREW (4X12)	2	Rp18.500
14	DISCONTINUE SUB: 36990-56B00-000	CLAMP, ANTENNA FEEDER	1	-
15	DISCONTINUE SUB: 09403-05311-000	CLAMP	1	-
16	09407-12404-000	CLAMP (L:140)	1	Rp19.500
17	39102-81A11-000	SPEAKER ASSY, FRONT	2	Rp674.000
18	01551-0616C-000	BOLT	4	Rp14.500
19	39312-60G00-000	WIRE, NOISE SUPPRESSOR	1	Rp47.500
20	09115-06005-000	BOLT (6X16)	1	Rp14.000
