Electrical - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

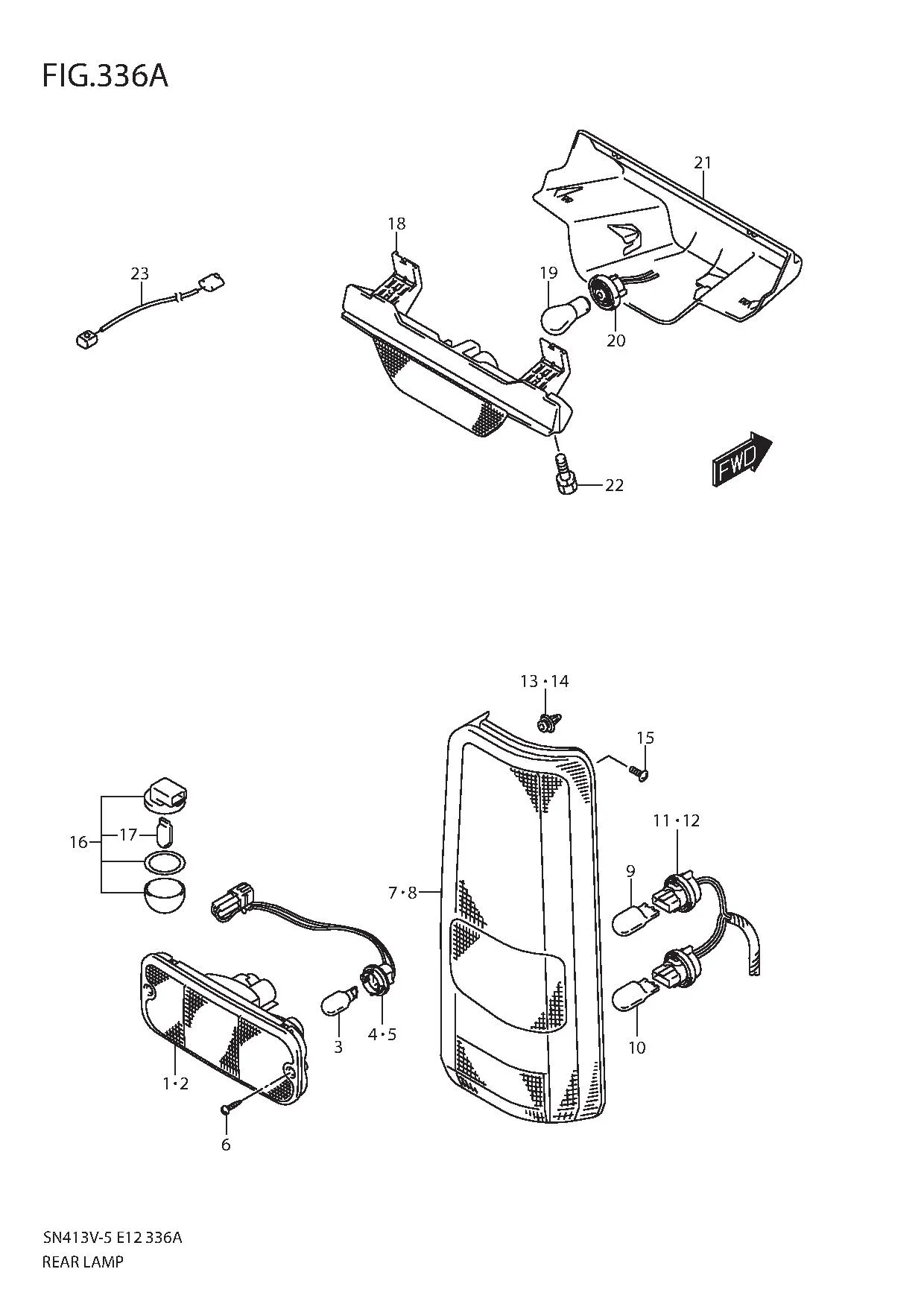

No	No. Part	Description	Qty	Price Per Pcs
1	35650-81A32-000	LAMP UNIT, RR COMBINATION RH	1	Rp643.000
2	35670-81A31-000	LAMP UNIT, RR COMBINATION LH	1	Rp643.000
3	09471-12146-000 SUB: 09471B12146N000	BULB (12V,16W)	2	Rp39.500
4	35658-81A30-000	SOCKET & CORD ASSY, RR COMB RH	1	Rp264.500
5	35658-81A30-000	SOCKET & CORD ASSY, RR COMB LH	1	Rp264.500
6	DISCONTINUE SUB: 35665-81A10-000	SCREW (5X25)	4	-
7	36255-81A31-000	LAMP UNIT, BACK UP RH	1	Rp1.213.500
8	36275-81A31-000	LAMP UNIT, BACK UP LH	1	Rp1.213.500
9	09471-12191-000	BULB (12V,21W)	2	Rp52.500
10	09471-12192-000	BULB (12V,21/5W)	2	Rp56.000
11	36258-81A20-000	SOCKET & CORD ASSY, RH	1	Rp310.000
12	36278-81A20-000	SOCKET & CORD ASSY, LH	1	Rp310.000
13	35684-81A00-000	CLIP, RH	2	Rp33.500
14	71812-78F00-000 SUB: 71812B78F00N000	CLIP, LH	2	Rp9.000
15	02162-0616B-000 SUB: 02162-0616E-000	SCREW (BLACK)	4	Rp15.500
16	35910-75F22-000	LAMP ASSY, LICENSE	2	Rp171.500
17	09471-12216-000 SUB: 09471B12216N000	•BULB (12V,5W)	2	Rp15.000
18	35820-84A02-000	LAMP UNIT, HIGH MOUNT STOP LAMP (GREEN)	1	Rp720.000
19	09471-12045-000 SUB: 09471B12045N000	BULB (12V,21W)	1	Rp13.500
20	35818-73H01-000	SOCKET & CORD ASSY	1	Rp156.500
21	35821-84A00-P4Z	COVER, HIGH MOUNT STOP LAMP (GRAY)	1	Rp329.500
22	01550-0612B-000	BOLT	2	Rp16.500
23	36842-81A00-000	WIRE, HIGH MOUNT STOP LAMP	1	Rp177.000
