JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICALFIG.302A STARTING MOTORFIG.304A GENERATORFIG.320A BATTERYFIG.324A SPEEDOMETERFIG.330A HEADLAMPFIG.332A FRONT FOG LAMPFIG.336A REAR LAMPFIG.340A WIRING HARNESSFIG.352A ELECTRICAL CONTROLFIG.360A LOCK SETFIG.370A FRONT WINDOW WIPERFIG.374A WINDOW WASHERFIG.376A REAR WINDOW WIPERFIG.391A RADIO

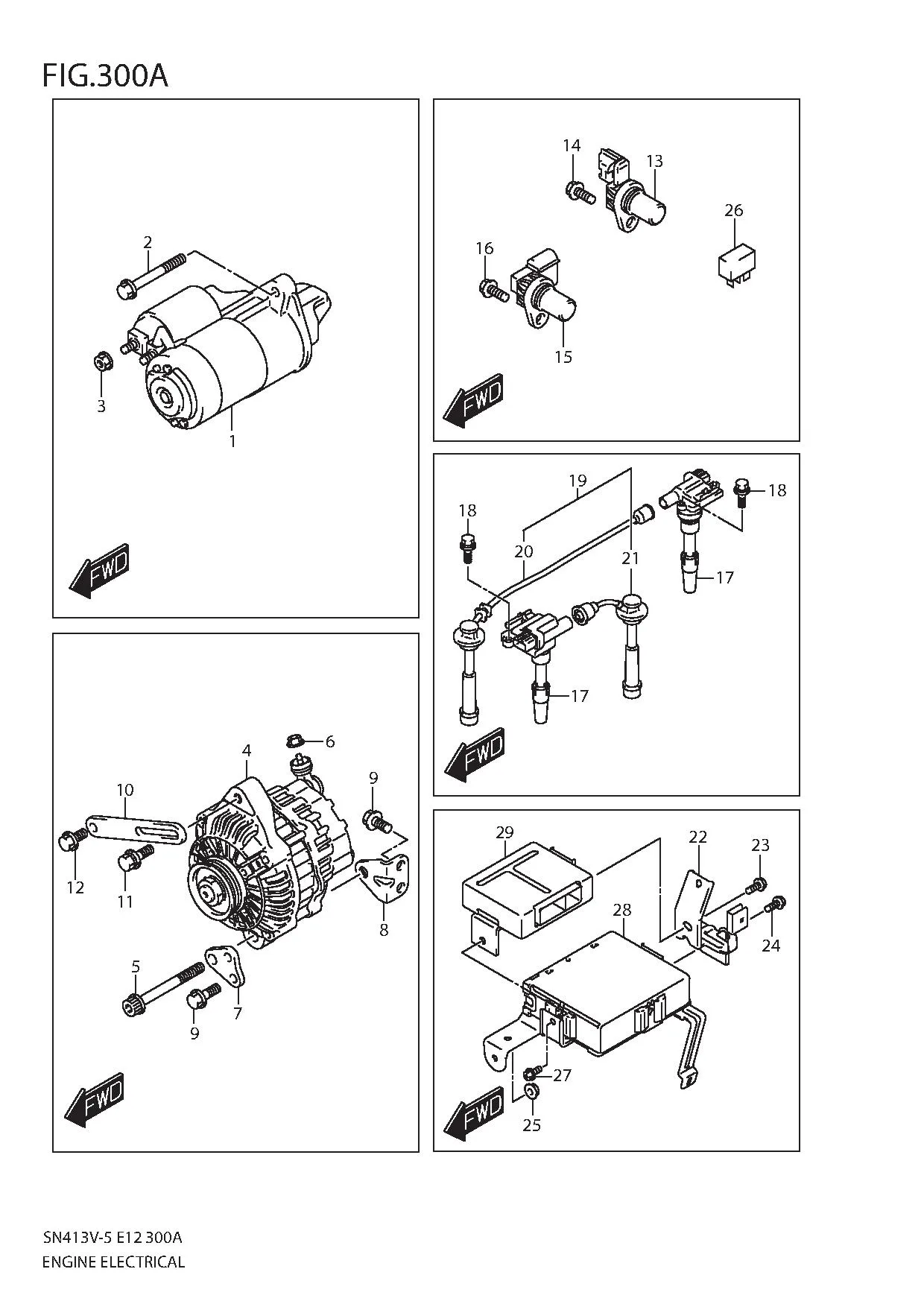

FIG.300A ENGINE ELECTRICAL

FIG.300A ENGINE ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 31100B63J00N000		 MOTOR ASSY, STARTING 1 -
2 01550M1065A-000
SUB: 01550-1065A-000		 BOLT 2 Rp16.500
3 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500
4 31400-80G12-000
SUB: 31400-80G11-000		 GENERATOR ASSY 1 Rp9.266.500
5 07120-1085A-000 BOLT 1 Rp34.000
6 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
7 DISCONTINUE
SUB: 11550-64J01-000		 BRACKET, GENERATOR NO.1 1 -
8 DISCONTINUE
SUB: 11550-54G10-000		 BRACKET, GENERATOR NO.2 1 -
9 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 4 Rp4.000
10 DISCONTINUE
SUB: 11561-69G01-000		 ARM, GENERATOR ADJUSTING 1 -
11 09118M08174-000
SUB: 09118-08107-000		 BOLT (8X25) 1 Rp19.500
12 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 1 Rp5.500
13 33220-76G11-000 SENSOR ASSY, CAM POSITION 1 Rp1.357.500
14 01550-0616A-000
SUB: 01550B0616AN000		 SCREW 1 Rp3.500
15 33220-64L20-000 SENSOR ASSY, CRANK POSITION 1 Rp1.027.000
16 09103-06283-000 BOLT (6X16) 1 Rp20.500
17 33400-65G02-000 COIL ASSY, IGNITION 2 Rp2.226.500
18 09135-06024-000 BOLT (6X23) 4 Rp16.500
19 33705-80G00-000 CORD SET, HIGH TENSION 1 Rp469.000
20 33730-80G00-000 •CORD, HIGH TENSION NO.2 1 Rp258.000 L:270
21 33740-80G00-000 •CORD, HIGH TENSION NO.3 1 Rp259.000 L:80
22 33924-81A00-000 BRACKET, INJECTION CONTROLLER 1 Rp156.000
23 02162-0610A-000 SCREW 1 Rp5.000
24 01550-0612B-000 SCREW 2 Rp16.500
25 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
26 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, MAIN & FUEL 2 Rp47.000
27 02162-0610A-000 SCREW 2 Rp5.000
28 33922-76J20-000 CONTROLLER, FUEL INJECTION 1 Rp25.037.500
29 38880-76JA0-000 CONTROLLER ASSY,4AT 1 Rp11.741.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
