Electrical - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

No	No. Part	Description	Qty	Price Per Pcs

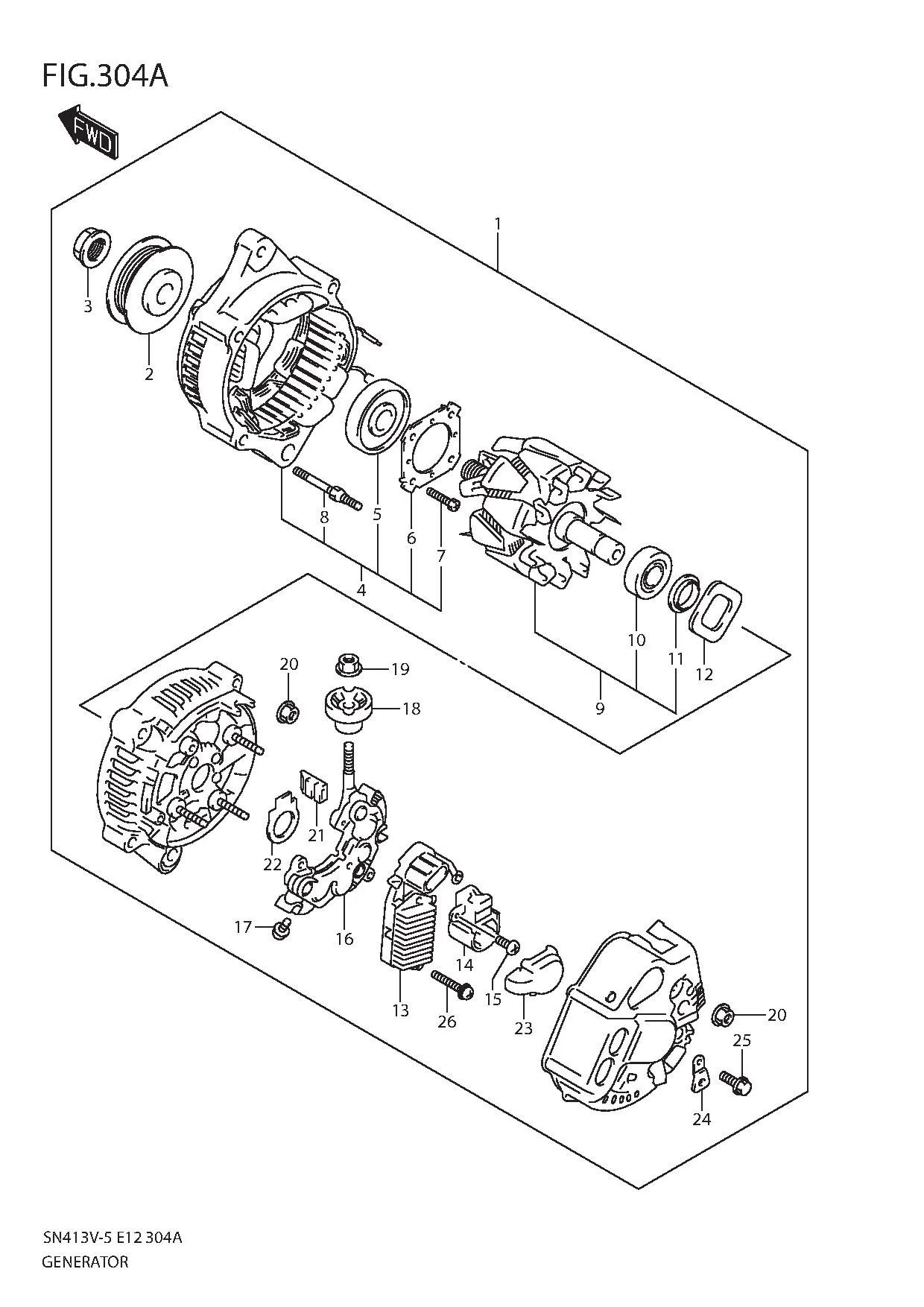

1	31400-80G12-000 SUB: 31400-80G11-000	GENERATOR ASSY	1	Rp9.266.500
2	31171-60G30-000	•PULLEY	1	Rp364.500
3	31775-86510-000 SUB: 31775B86510N000	•NUT	1	Rp14.000
4	31580-77E11-000	•FRAME ASSY, DRIVE END	1	Rp5.445.500
5	31582-77E11-000	••BEARING	1	Rp390.000
6	DISCONTINUE SUB: 31585-77E10-000	••RETAINER, BEARING	1	-
7	DISCONTINUE SUB: 31586-77E10-000	••SCREW	4	-
8	DISCONTINUE SUB: 31587-82110-000	••BOLT	4	-
9	31710-80G01-000	•ROTOR ASSY	1	Rp5.005.000
10	31612-77E11-000	••BEARING	1	Rp235.000
11	DISCONTINUE SUB: 31613-82610L000	••COVER	1	-
12	DISCONTINUE SUB: 31615-77E10-000	•WASHER	1	-
13	32500-80G10-000	•REGULATOR ASSY	1	Rp3.836.000
14	31656-77E10-000	•HOLDER ASSY, BRUSH	1	Rp436.500
15	31516-85250-000 SUB: 31516-85250L000	•SCREW	3	Rp22.500
16	31621-77E10-000	•RECTIFIER ASSY	1	Rp2.457.000
17	DISCONTINUE SUB: 31516-77E10-000	•SCREW	4	-
18	DISCONTINUE SUB: 31514-77E11-000	•INSULATOR	1	-
19	08310-0006B-000 SUB: 08310B0006BN000	•NUT	1	Rp4.500
20	08316-1005A-000 SUB: 08316B1005AN000	•NUT	7	Rp2.500
21	DISCONTINUE SUB: 31622-77E10-000	•INSULATOR	4	-
22	DISCONTINUE SUB: 31619-77E10-000	•SEAL RING	1	-
23	DISCONTINUE SUB: 31620-77E10-000	•SEAL RING	1	-
24	DISCONTINUE SUB: 31512-77E10-000	•PLATE	1	-
25	DISCONTINUE SUB: 31515-77E10-000	•SCREW	1	-
26	32642-80G10-000	•SCREW	2	Rp30.500
