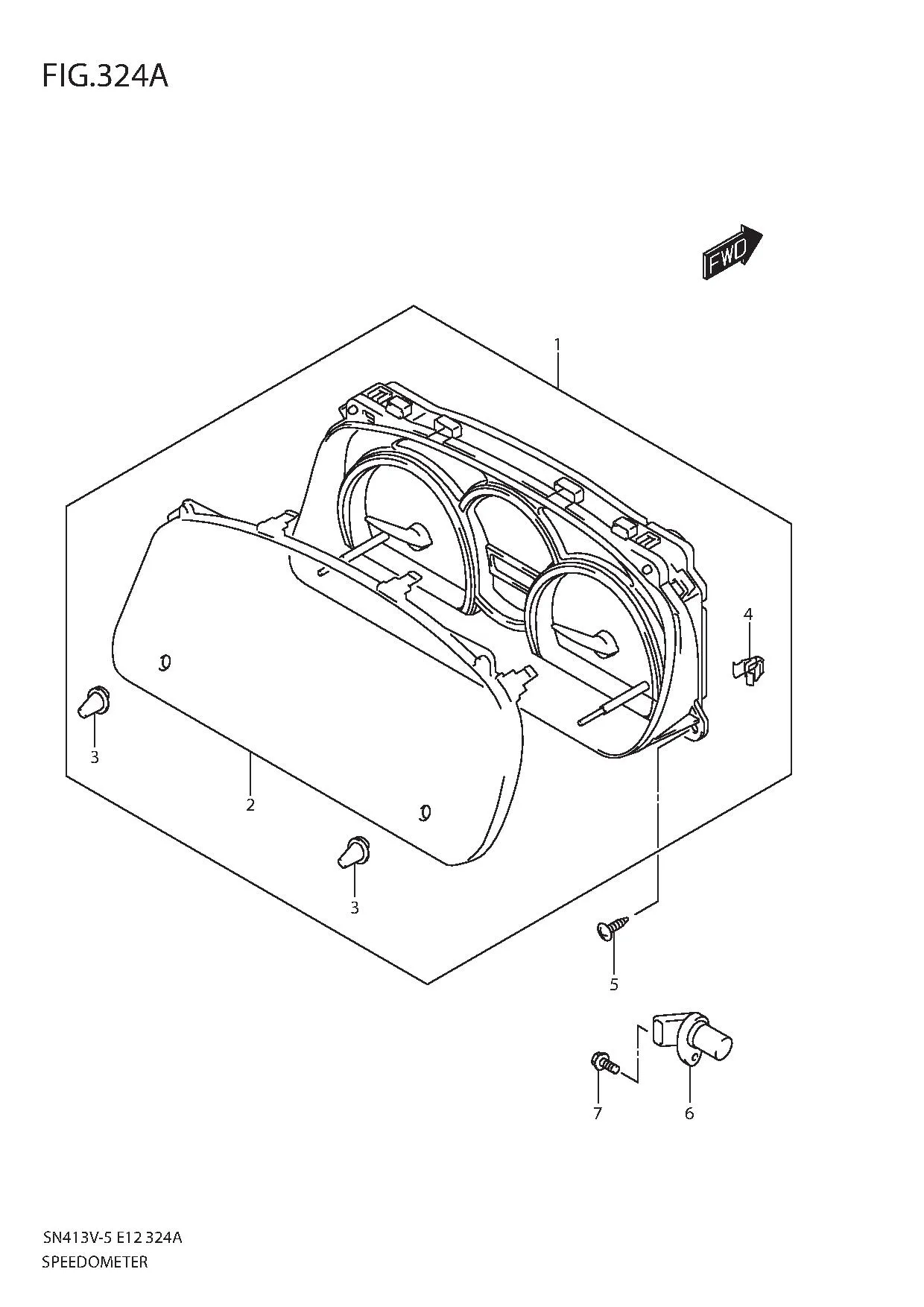

FIG.324A SPEEDOMETER

FIG.324A SPEEDOMETER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	34100-57ME0-000	SPEEDOMETER (KILO)	1	Rp10.270.500
2	34112-57M00-000	•GLASS, METER WINDOW	1	Rp472.500
3	34145-65D00-000	•COVER, TRIP KNOB	2	Rp52.500
4	09409-08326-000 SUB: 09409B08326N000	•CLIP	2	Rp8.000
5	03541-0516A-000 SUB: 03541B0516AN000	SCREW	2	Rp3.500
6	34960-81A00-000	SENSOR ASSY, SPEED	1	Rp1.796.500
7	01550-0616A-000 SUB: 01550B0616AN000	SCREW	1	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
