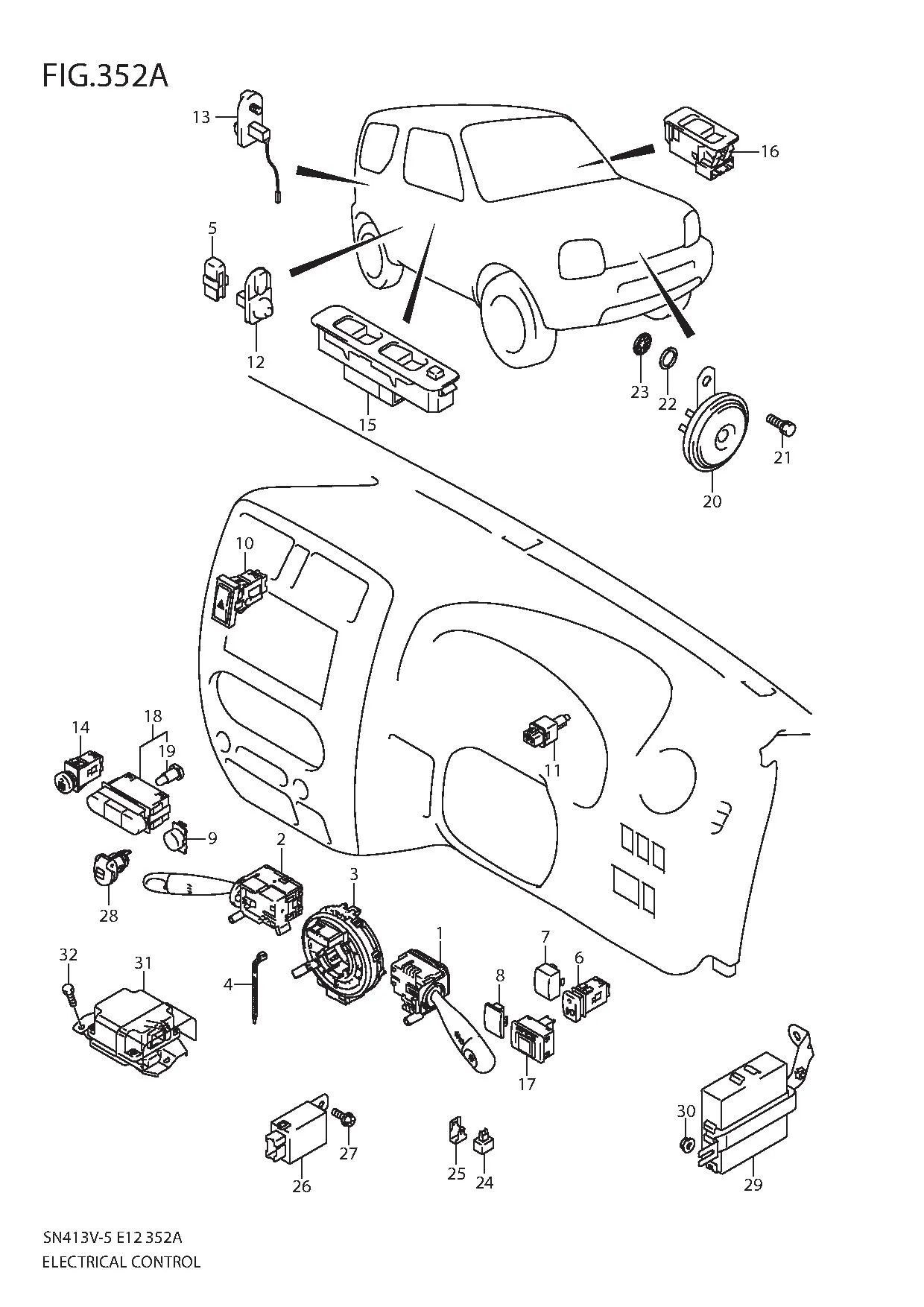

FIG.352A ELECTRICAL CONTROL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	37210-71L01-000	SWITCH ASSY, LIGHTING & TURN	1	Rp1.729.500
2	37310-50M00-000	SWITCH ASSY, WIPER & WASHER	1	Rp1.106.500
3	37480-72M00-000	CABLE ASSY, CONTACT COIL	1	Rp1.105.500
4	DISCONTINUE SUB: 09407B25401N000	CLAMP (L:235)	0	-
5	38860-78F00-000	RELAY, REAR WIPER	1	Rp274.000
6	37270-76J01-000	SWITCH ASSY, FRONT FOG LAMP	1	Rp555.000
7	37285-75F00-000	CAP, OPTION SWITCH HOLE	0	Rp41.500
8	37285-75F30-000 SUB: 37285-75F10-000	CAP, OPTION SWITCH HOLE	0	Rp37.500
9	37285-54G00-000	CAP, OPTION SWITCH HOLE	0	Rp34.500
10	37430-59J10-000	SWITCH ASSY, HAZARD WARNING	1	Rp445.500
11	37740-61J10-000 SUB: 37740-75H21-000	SWITCH ASSY, STOP LAMP	1	Rp59.000
12	37670-65D01-000	SWITCH ASSY, FRONT DOOR	2	Rp109.000
13	37670-60G01-000	SWITCH ASSY, BACK DOOR	1	Rp158.000
14	37860-76J01-000	SWITCH ASSY, RR DEFOGGER	1	Rp555.000
15	37990-81A20-P4Z	SWITCH ASSY, POWER WINDOW (GRAY)	1	Rp2.647.000
16	37995-75F00-P4Z	SWITCH ASSY, POWER SUB (GRAY)	1	Rp606.500
17	37950-75F00-000	SWITCH ASSY, MIRROR	1	Rp410.500
18	37790-76J00-000	SWITCH ASSY,4WD SELECT	1	Rp922.500
19	37275-76J00-000	•BULB, ILLUMINATION	2	Rp107.500
20	38500-75F11-000	HORN ASSY	1	Rp789.000
21	01570-0820B-000 SUB: 01570-0820A-000	BOLT	1	Rp31.000
22	DISCONTINUE SUB: 09160-08501-000	WASHER (8.5X24X2.3)	1	-
23	DISCONTINUE SUB: 38570-65D00-000	STOPPER, HORN	1	-
24	38610-84F00-000	RELAY, TURNSIGNAL & 4WAY	1	Rp613.000
25	38665-81A01-000	BRACKET, TURNSIGNAL RELAY	1	Rp44.500
26-1	38700-84F30-000	CONTROLLER ASSY, DOOR LOCK	1	Rp1.323.500	N_KLS_EN
26-2	37190-81A70-000	CONTROLLER ASSY, DOOR LOCK & KEYLESS	1	Rp2.945.500	W_KLS_EN
27	03141-0516B-000 SUB: 03141M0512A-000	BOLT	1	Rp3.500
28	39410-50J10-5PK	SOCKET ASSY (BLACK)	1	Rp295.000
29	38885-61L40-000	CONTROLLER ASSY,4WD SHIFT	1	Rp5.532.000
30	08316-1006A-000 SUB: 08316B1006AN000	NUT	2	Rp2.000
31	38910-57MB0-000	CONTROLLER ASSY, AIR BAG	1	Rp12.338.500
32	09115-06005-000	BOLT (6X16)	3	Rp14.000
