JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICALFIG.302A STARTING MOTORFIG.304A GENERATORFIG.320A BATTERYFIG.324A SPEEDOMETERFIG.330A HEADLAMPFIG.332A FRONT FOG LAMPFIG.336A REAR LAMPFIG.340A WIRING HARNESSFIG.352A ELECTRICAL CONTROLFIG.360A LOCK SETFIG.370A FRONT WINDOW WIPERFIG.374A WINDOW WASHERFIG.376A REAR WINDOW WIPERFIG.391A RADIO

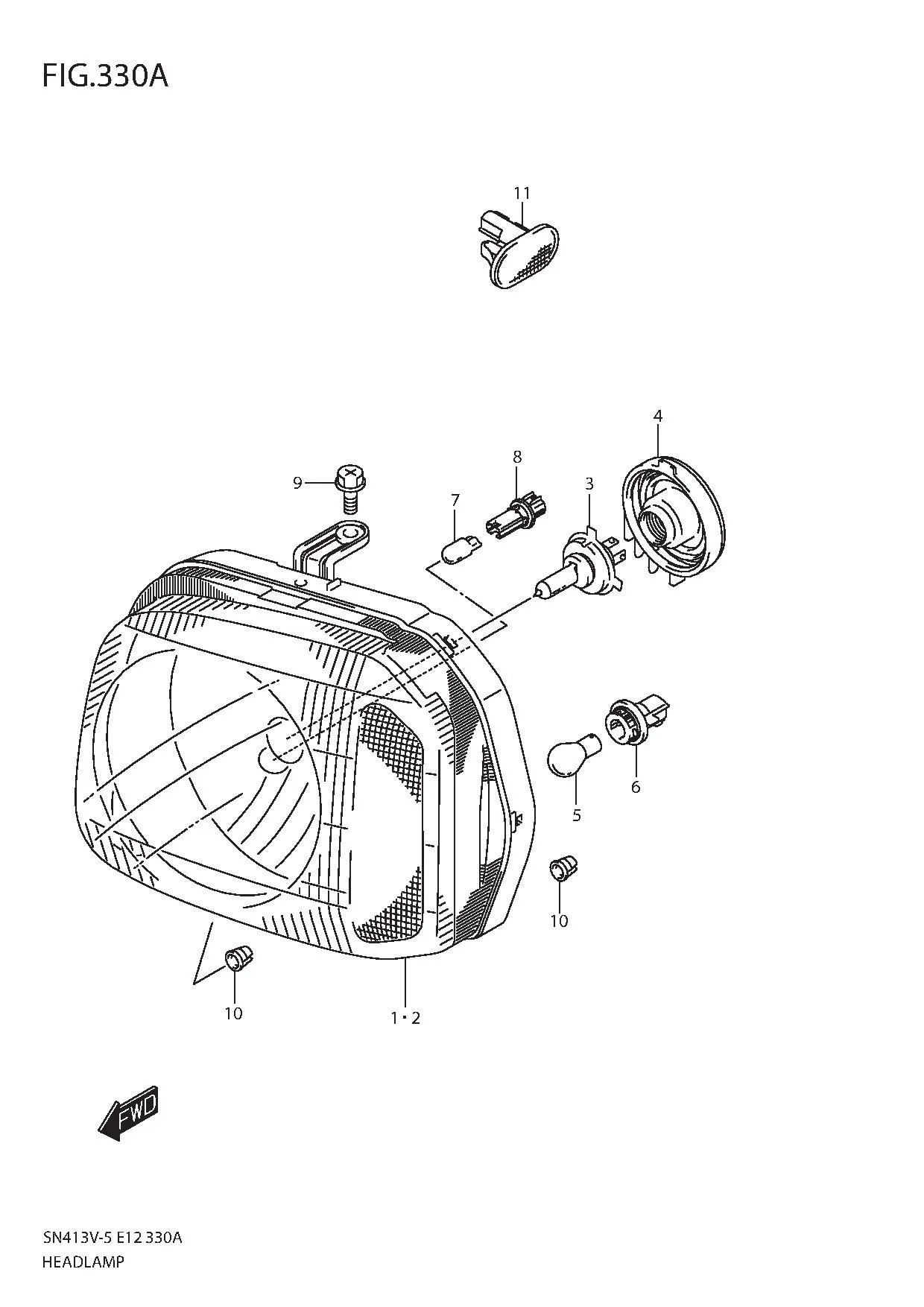

FIG.330A HEADLAMP

FIG.330A HEADLAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35120-81A00-000 UNIT, HEADLAMP RH 1 Rp2.884.000
2 35320-81A00-000 UNIT, HEADLAMP LH 1 Rp2.884.000
3 09471-12182-000
SUB: 09471B12182N000		 BULB (12V,60/55W) 2 Rp70.000
4 35125-77A00-000 COVER, SOCKET 2 Rp106.000
5 09471-12186-000
SUB: 09471B12186N000		 BULB (12V,21W) 2 Rp22.000
6 36118-77A00-000 SOCKET, TURN LAMP 2 Rp73.500
7 09471-12216-000
SUB: 09471B12216N000		 BULB (12V,5W) 2 Rp15.000
8 DISCONTINUE
SUB: 36118-77A10-000		 SOCKET, POSITION LAMP 2 -
9 09122-76006-000 SCREW (6X16) 4 Rp13.000
10 35153-60G00-000 GROMMET, LAMP 4 Rp32.500
11 36410-63J21-000 LAMP ASSY, SIDE TURN SIGNAL 2 Rp137.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
