JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICALFIG.302A STARTING MOTORFIG.304A GENERATORFIG.320A BATTERYFIG.324A SPEEDOMETERFIG.330A HEADLAMPFIG.332A FRONT FOG LAMPFIG.336A REAR LAMPFIG.340A WIRING HARNESSFIG.352A ELECTRICAL CONTROLFIG.360A LOCK SETFIG.370A FRONT WINDOW WIPERFIG.374A WINDOW WASHERFIG.376A REAR WINDOW WIPERFIG.391A RADIO

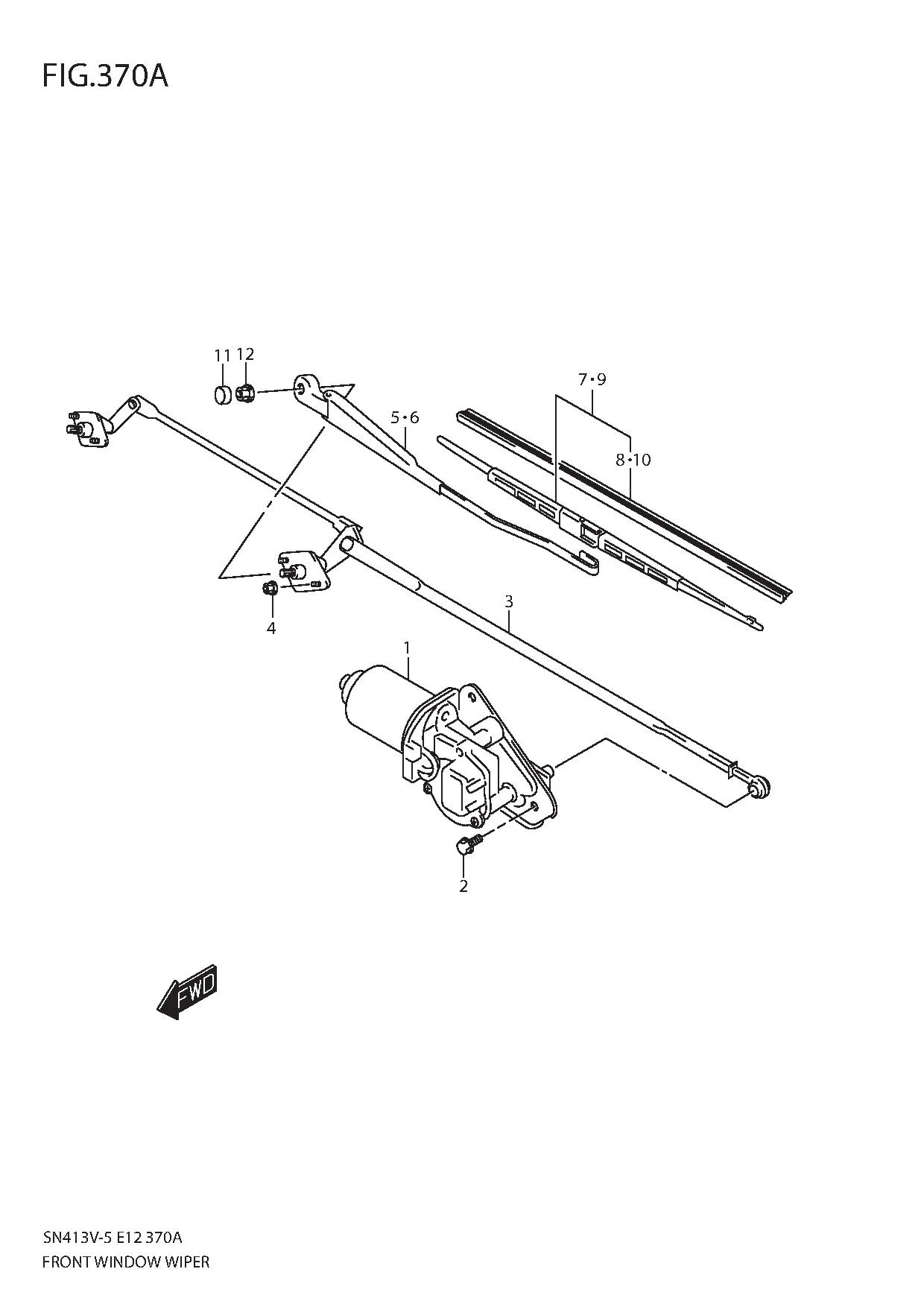

FIG.370A FRONT WINDOW WIPER

FIG.370A FRONT WINDOW WIPER
No No. Part Description Qty Price Per Pcs Remarks
1 38101-81A01-000 MOTOR & BRACKET ASSY, WIPER 1 Rp5.504.500
2 09115-06005-000 BOLT (6X16) 3 Rp14.000
3 38102-81A01-000 LINK ASSY, WIPER 1 Rp1.397.000
4 08316-1006A-000
SUB: 08316B1006AN000		 NUT 4 Rp2.000
5 38310-81A00-000 ARM ASSY, WIPER RH 1 Rp567.500
6 38310-81A10-000 ARM ASSY, WIPER LH 1 Rp572.500
7 38340-81A50-000 BLADE ASSY, WIPER RH 1 Rp268.500
8 38346-81A50-000 •BLADE, RH 1 Rp138.000
9 38340-75H00-000 BLADE ASSY, WIPER LH 1 Rp270.500
10 38346-75H00-000 •BLADE, LH 1 Rp95.000
11 38315-67L10-000
SUB: 38315-60B11-000		 CAP 2 Rp4.500
12 08310-0008A-000
SUB: 08310M0008A-000		 NUT 2 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
