JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICALFIG.302A STARTING MOTORFIG.304A GENERATORFIG.320A BATTERYFIG.324A SPEEDOMETERFIG.330A HEADLAMPFIG.332A FRONT FOG LAMPFIG.336A REAR LAMPFIG.340A WIRING HARNESSFIG.352A ELECTRICAL CONTROLFIG.360A LOCK SETFIG.370A FRONT WINDOW WIPERFIG.374A WINDOW WASHERFIG.376A REAR WINDOW WIPERFIG.391A RADIO

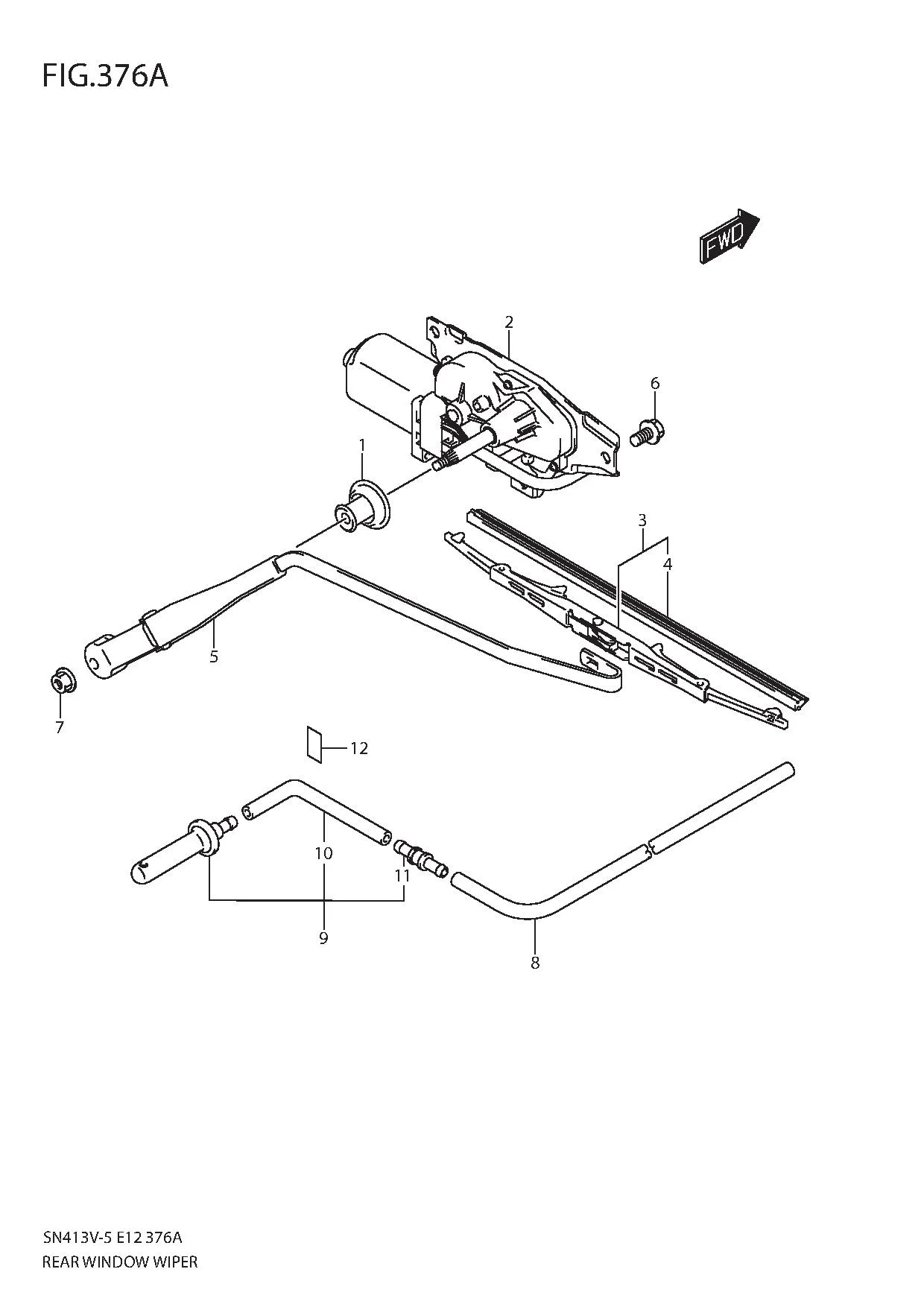

FIG.376A REAR WINDOW WIPER

FIG.376A REAR WINDOW WIPER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 38274-81A00-000		 CAP, WIPER PIVOT 1 -
2 38810-81A10-000 WIPER ASSY, REAR WINDOW 1 Rp3.530.500
3 38340-81A20-000 BLADE ASSY, REAR WIPER 1 Rp170.500
4 38346-82C00-000 •BLADE 1 Rp69.000
5 38821-81A00-000 ARM ASSY, REAR WIPER 1 Rp464.500
6 01550-0612B-000 BOLT 3 Rp16.500
7 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
8 38491-61A00-000 HOSE, WASHER (4X6X1300) 1 Rp47.500 L:1300->1080
9 38840-81A00-000 NOZZLE ASSY, REAR WASHER 1 Rp179.500
10 38491-61A00-000 •HOSE, WASHER (4X6X1300) 1 Rp47.500 L:1300->150
11 38833M79500-000
SUB: 38496-61A00-000		 •VALVE, WASHER HOSE 1 Rp8.000
12 36930M82000-000
SUB: 36930M82010-000		 COVER 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
