JIMNY 2017

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICAL FIG.302A STARTING MOTOR FIG.304A GENERATOR FIG.320A BATTERY FIG.324A SPEEDOMETER FIG.330A HEADLAMP FIG.332A FRONT FOG LAMP FIG.336A REAR LAMP FIG.340A WIRING HARNESS FIG.352A ELECTRICAL CONTROL FIG.360A LOCK SET FIG.370A FRONT WINDOW WIPER FIG.374A WINDOW WASHER FIG.376A REAR WINDOW WIPER FIG.391A RADIO

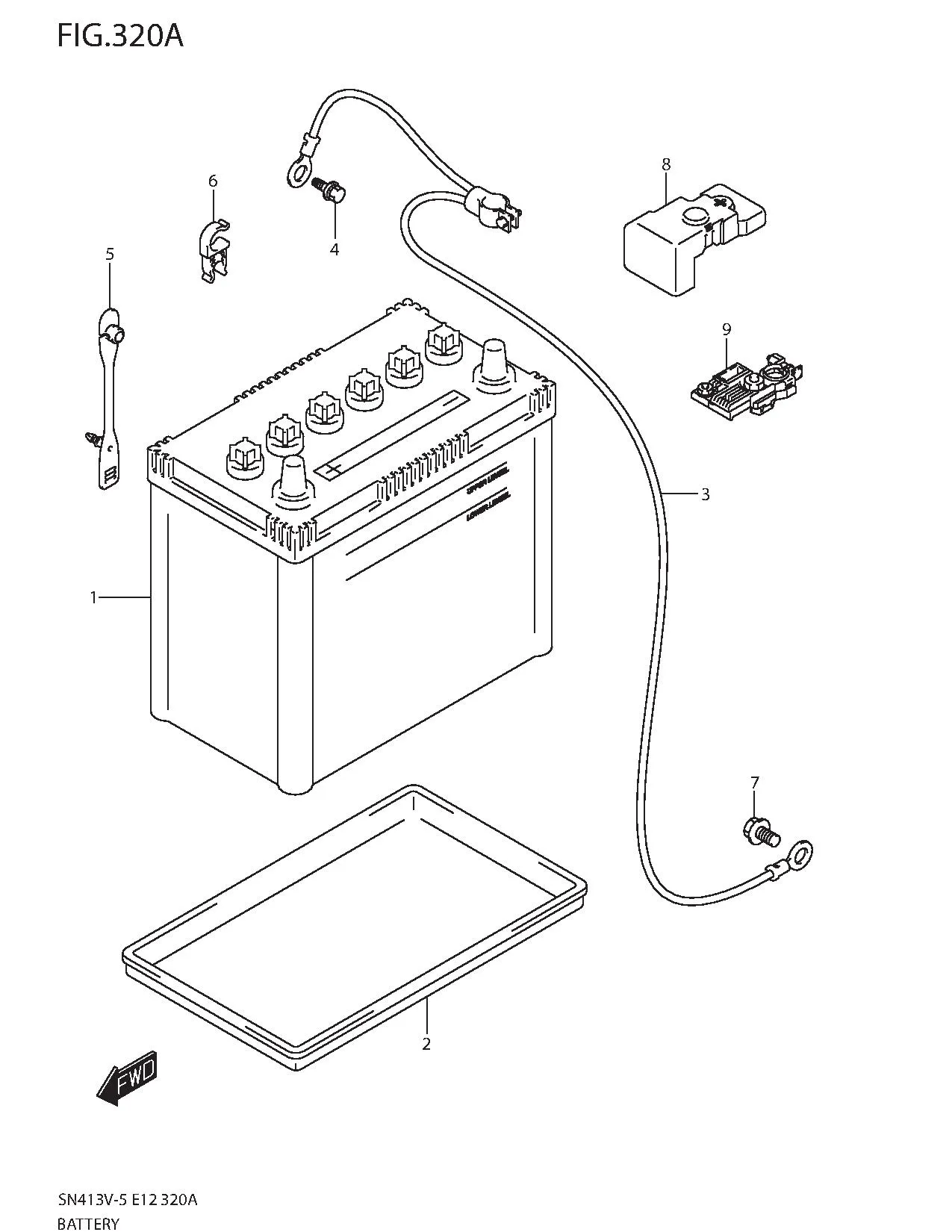

FIG.320A BATTERY

FIG.320A BATTERY

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	33610-750V1-000	BATTERY (38B19R,12V28AH/5HR)	1	Rp1.900.500
2	33660-73010-000 SUB: 33660-71L10-000	TRAY, BATTERY	1	Rp41.000
3	33850-76J01-000	CABLE, BATTERY GROUND	1	Rp413.000
4	09115-06005-000	BOLT (6X16)	1	Rp14.000
5	09407-05403-000	CLAMP (L:88)	1	Rp13.000
6	DISCONTINUE SUB: 09408-00111-000	CLAMP	1	-
7	01550-1020A-000	BOLT, GROUND	1	Rp21.000
8	36694-50J01-000	COVER, BATTERY TERMINAL	1	Rp98.000
9	36739-50J00-000	FUSE (80A)	1	Rp131.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
