JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICALFIG.302A STARTING MOTORFIG.304A GENERATORFIG.320A BATTERYFIG.324A SPEEDOMETERFIG.330A HEADLAMPFIG.332A FRONT FOG LAMPFIG.336A REAR LAMPFIG.340A WIRING HARNESSFIG.352A ELECTRICAL CONTROLFIG.360A LOCK SETFIG.370A FRONT WINDOW WIPERFIG.374A WINDOW WASHERFIG.376A REAR WINDOW WIPERFIG.391A RADIO

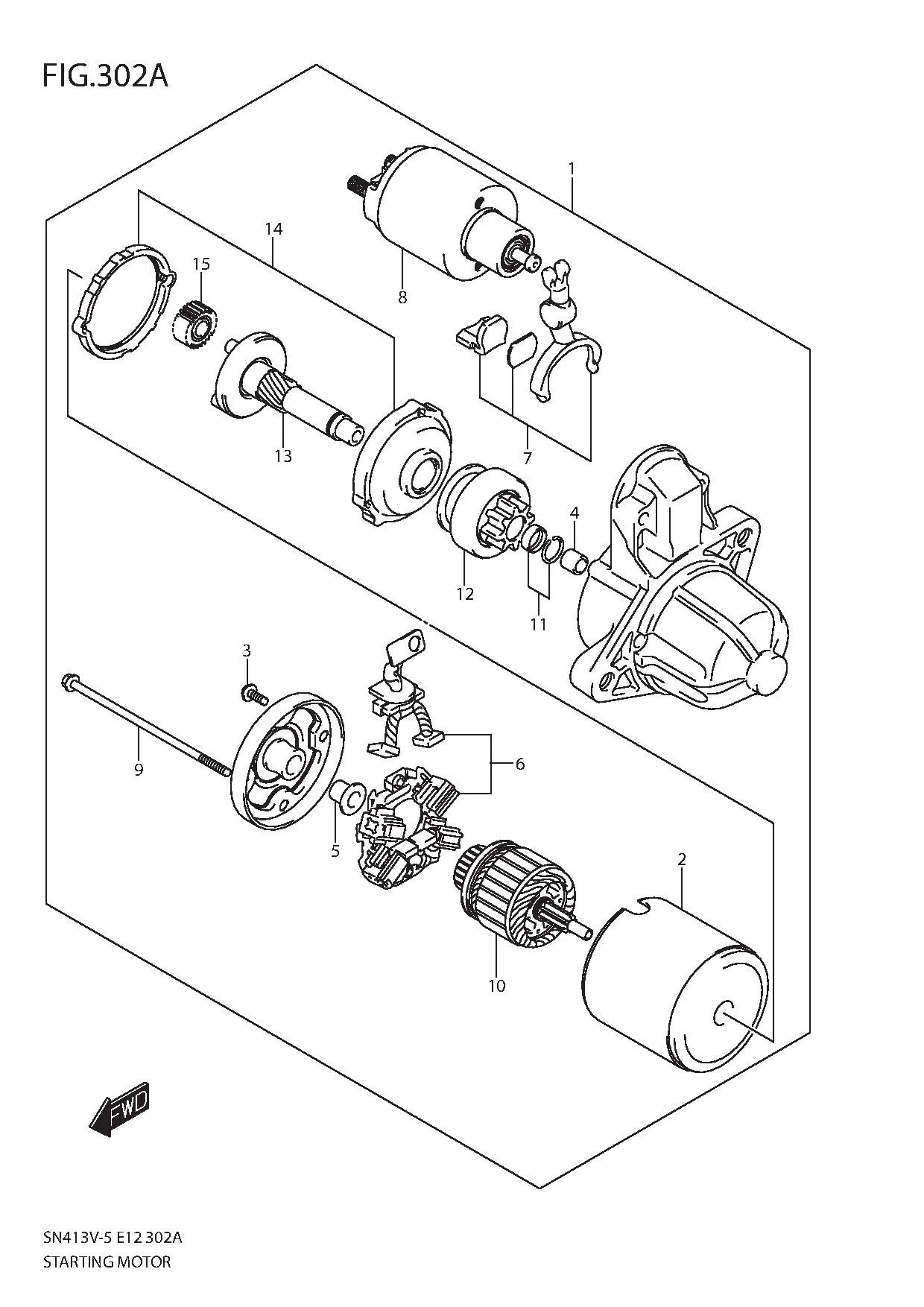

FIG.302A STARTING MOTOR

FIG.302A STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 31100B63J00N000		 MOTOR ASSY, STARTING 1 -
2 DISCONTINUE
SUB: 31110-63J00-000		 •YOKE ASSY 1 -
3 31136-79030-000 •SCREW SET 1 Rp81.000
4 31152-63J00-000 •BEARING, FRONT 1 Rp133.500
5 31172-64B60-000 •BEARING 1 Rp97.000
6 31173-63J00-000 •CONN BRH ASSY 1 Rp674.000
7 31191-63J00-000
SUB: 31191B63J00N000		 •LEVER SET 1 Rp24.500
8 31220-63J00-000 •SWITCH ASSY 1 Rp1.571.500
9 DISCONTINUE
SUB: 31261-75F10-000		 •BOLT 2 -
10 31311-63J00-000 •ARMATURWE 1 Rp3.466.500
11 31313-86030-000
SUB: 31313B86030N000		 •STOPPER SET 1 Rp24.500
12 31320-63J00-000
SUB: 31320B63J00N000		 •CLUTCH, OVER RUNNING 1 Rp224.000
13 31341-63J00-000 •SHAFT ASSY, GEAR 1 Rp1.724.000
14 31343-63J00-000 •INTERNAL GEAR ASSY 1 Rp348.500
15 31344-63J00-000 •GEAR ASSY 3 Rp348.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
