JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICALFIG.302A STARTING MOTORFIG.304A GENERATORFIG.320A BATTERYFIG.324A SPEEDOMETERFIG.330A HEADLAMPFIG.332A FRONT FOG LAMPFIG.336A REAR LAMPFIG.340A WIRING HARNESSFIG.352A ELECTRICAL CONTROLFIG.360A LOCK SETFIG.370A FRONT WINDOW WIPERFIG.374A WINDOW WASHERFIG.376A REAR WINDOW WIPERFIG.391A RADIO

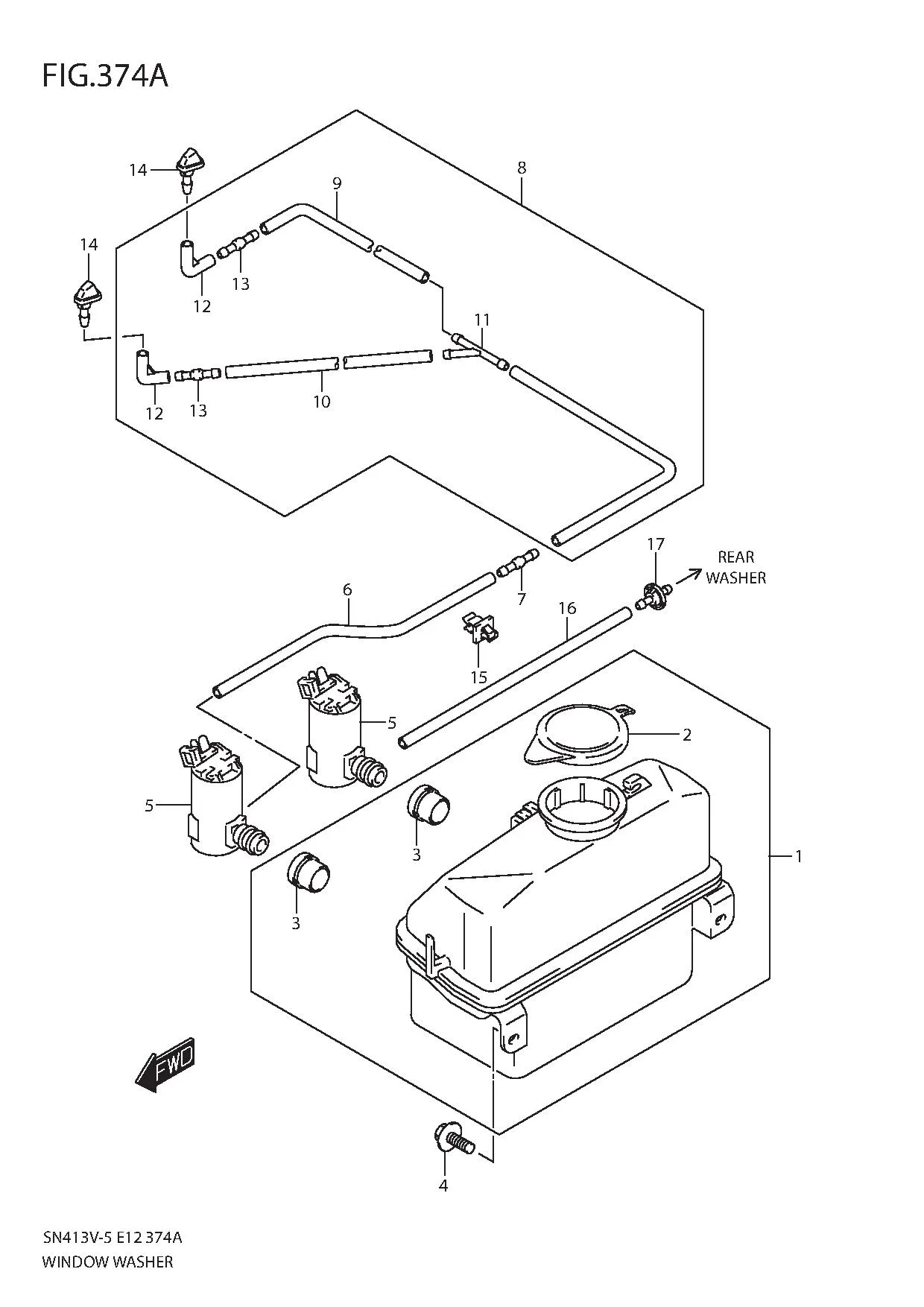

FIG.374A WINDOW WASHER

FIG.374A WINDOW WASHER
No No. Part Description Qty Price Per Pcs Remarks
1 38450-81A00-000 TANK ASSY, WASHER 1 Rp644.000
2 38452-81A00-000 •CAP, WASHER TANK 1 Rp29.000
3 38453M75000-000 •GROMMET 2 Rp4.500
4 09122-76003-000 SCREW (6X16) 2 Rp15.000
5 38410-66113-000 PUMP ASSY, WASHER 2 Rp865.000
6 38491-61A00-000 HOSE, WASHER (4X6X1300) 1 Rp47.500 L:1300->250
7 38496-56B00-000 CONNECTOR 1 Rp33.500
8 38490-57M02-000 HOSE ASSY, WASHER 1 Rp188.000
9 38459-50J00-000 •HOSE, WASHER (4X7X810) 1 Rp56.500 L:810->580
10 38459-50J00-000 •HOSE, WASHER (4X7X810) 1 Rp56.500 L:810->125
11 38496-60G00-000 •CONNECTOR,3 WAY 1 Rp29.000
12 38496-67H00-000 •JOINT, ELBOW 2 Rp33.500
13 38496-56B00-000
SUB: 38496-86010-000		 •CONNECTOR 2 Rp33.500
14 38480-57M00-000 NOZZLE, WASHER 2 Rp106.000
15 09403-07307-5PK CLAMP (BLACK) 1 Rp18.500
16 38491-61A00-000 HOSE, WASHER (4X6X1300) 1 Rp47.500 L:1300->630
17 38496-81A01-000 JOINT 1 Rp52.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
