JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICALFIG.302A STARTING MOTORFIG.304A GENERATORFIG.320A BATTERYFIG.324A SPEEDOMETERFIG.330A HEADLAMPFIG.332A FRONT FOG LAMPFIG.336A REAR LAMPFIG.340A WIRING HARNESSFIG.352A ELECTRICAL CONTROLFIG.360A LOCK SETFIG.370A FRONT WINDOW WIPERFIG.374A WINDOW WASHERFIG.376A REAR WINDOW WIPERFIG.391A RADIO

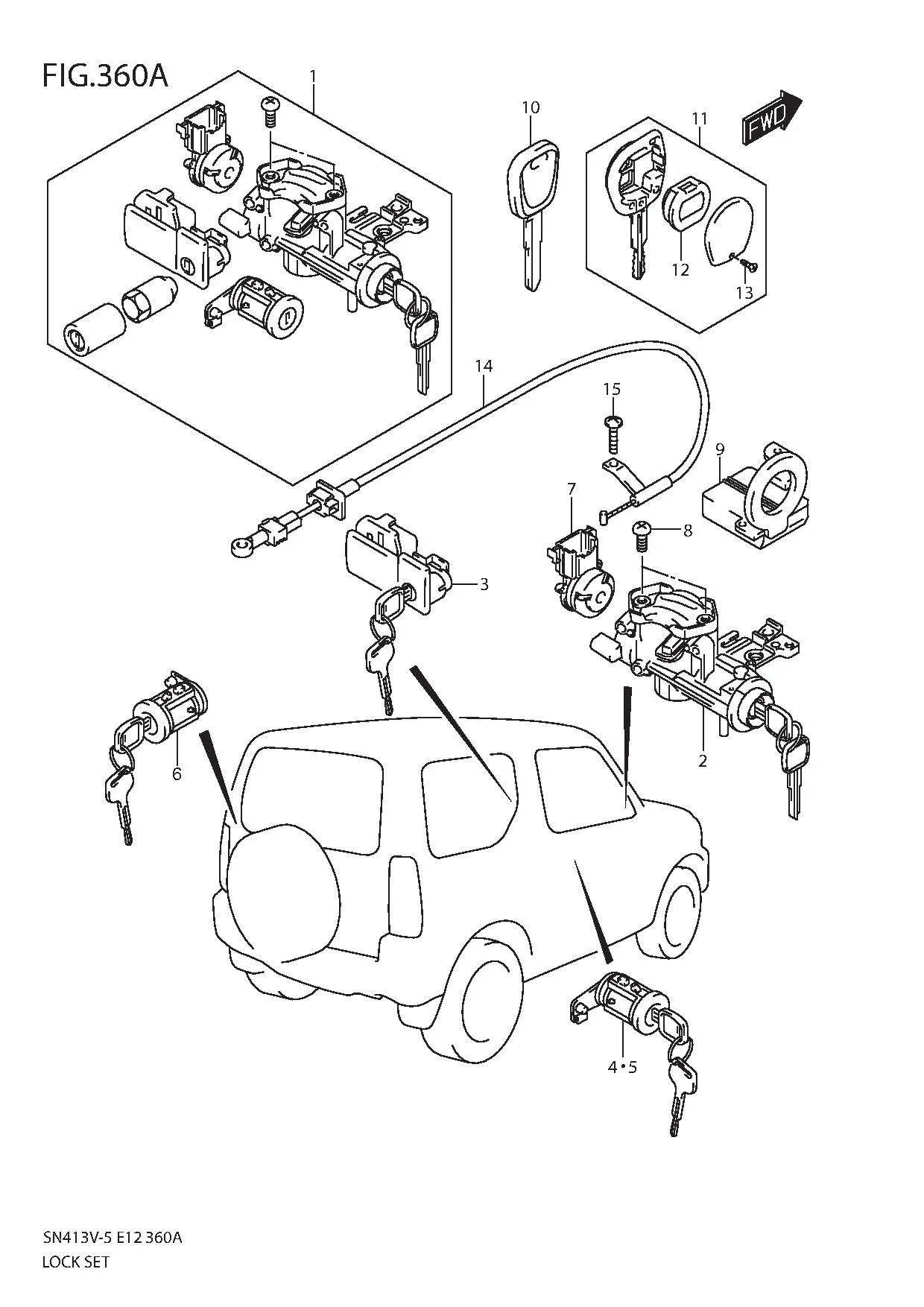

FIG.360A LOCK SET

FIG.360A LOCK SET
No No. Part Description Qty Price Per Pcs Remarks
1-1 37107-81870-P4Z LOCK SET 1 Rp4.306.500 N_KLS_EN
1-2 37108-81832-P4Z
SUB: 37108-81830-P4Z		 LOCK SET 1 Rp8.626.500 W_KLS_EN
2 37109-81810-000 LOCK ASSY, STEERING 1 Rp5.022.500
3 73430-76811-P4Z LOCK, GLOVE BOX (GRAY) 1 Rp893.000
4 82270-76870-000 CYLINDER, FRONT DOOR LOCK RH 1 Rp612.000
5 82280-76870-000 CYLINDER, FRONT DOOR LOCK LH 1 Rp612.000
6 82501-76810-000 CYLINDER, BACK DOOR LOCK 1 Rp643.500
7 37111-58J00-000 SWITCH 1 Rp559.500
8 37152-84G00-000 BOLT 2 Rp35.500
9 33970M80G10-000
SUB: 33970M80G01-000		 CONTROLLER ASSY, IMMOBILIZER 1 Rp2.599.000
10 37145-57J50-000 KEY, BLANK (IMMOBILIZER) 1 Rp768.000
11 37145-55J81-000
SUB: 37145-55JV1-000		 KEY, BLANK 1 Rp1.891.000
12 37182-81AV1-000 •SWITCH ASSY, TRANSMITTER 1 Rp961.500 W_KLS_EN
13 37186-81A00-000 •SCREW 1 Rp23.000 W_KLS_EN
14 28551-76J70-000 CABLE, KEY INTERLOCK 1 Rp432.000
15 09125-05113-000 SCREW (5X12) 1 Rp27.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
