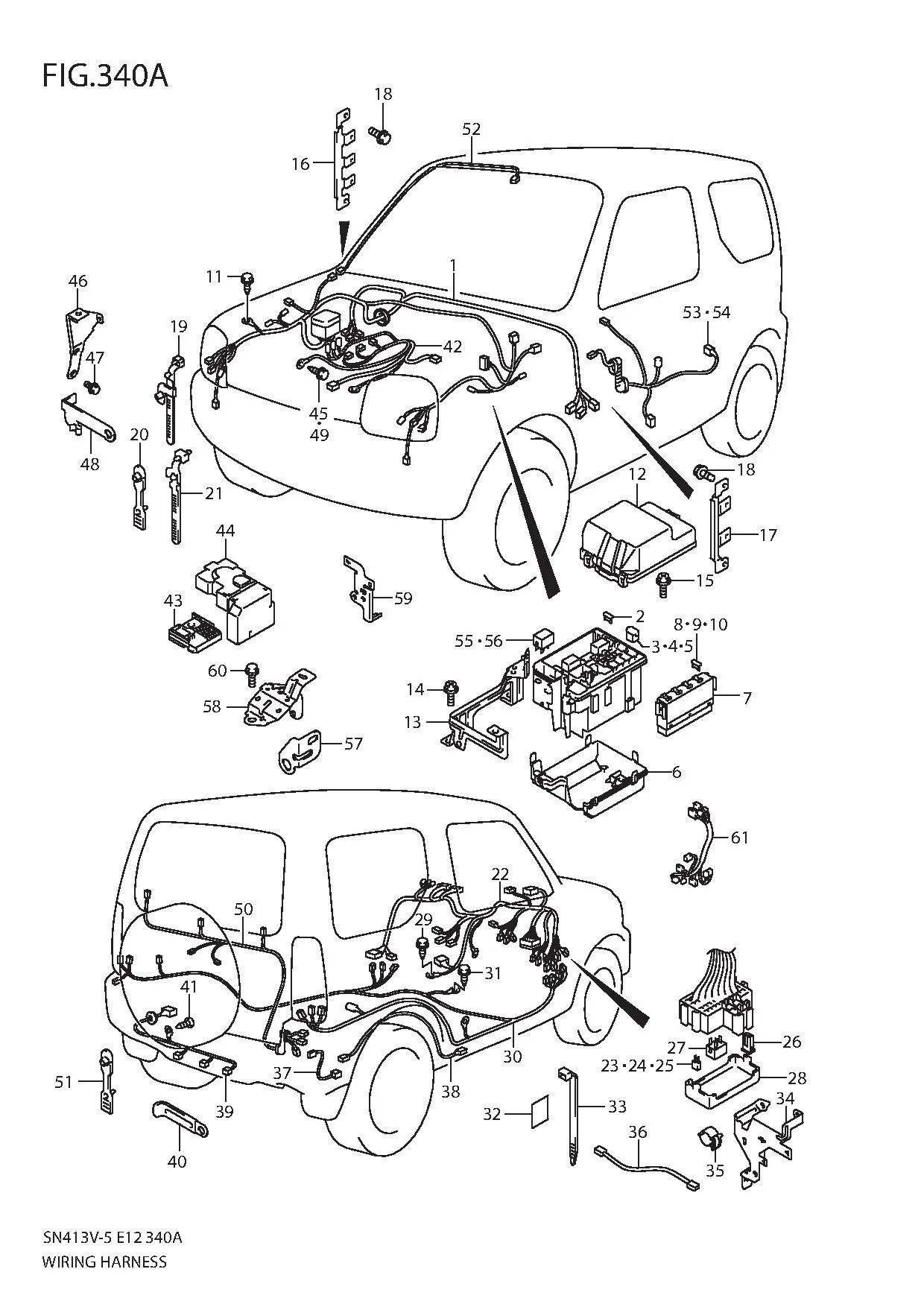

FIG.340A WIRING HARNESS

No	No. Part	Description	Qty	Price Per Pcs
1	36910-57MK0-000	HARNESS ASSY, MAIN	1	Rp19.728.000
2	09481-15504-000	•FUSE (15A)	0	Rp13.000
3	09481-30403-000	•FUSE (30A)	1	Rp41.000
4	09481-40403-000	•FUSE (40A)	2	Rp51.500
5	09481-50403-000	•FUSE (50A)	2	Rp51.000
6	36739-76J00-000	•COVER, FUSE BOX LOWER	1	Rp138.000
7	36742-76J00-000	•POWER INTEGRATION	1	Rp801.000
8	09481-15504-000	•FUSE (15A)	0	Rp13.000
9	09481-20504-000	•FUSE (20A)	3	Rp14.500
10	09481-30504-000	•FUSE (30A)	2	Rp15.000
11	09115-06005-000	BOLT (6X16)	1	Rp14.000
12	36738-76JA0-000	COVER, FUSE BOX UPPER	1	Rp164.000
13	36737-76J00-000	BRACKET, RELAY BOX	1	Rp236.500
14	01550-0612B-000	BOLT	2	Rp16.500
15	02162-0616A-000	BOLT	2	Rp3.000
16	36614-76J00-000	BRACKET, HARNESS CONNECTOR RH	1	Rp62.000
17	36614-76J10-000	BRACKET, HARNESS CONNECTOR LH	1	Rp62.000
18	01550-0612B-000	BOLT	4	Rp16.500
19	DISCONTINUE SUB: 36990-56B00-000	CLAMP	0	-
20	09407-05403-000	CLAMP (L:88)	0	Rp13.000
21	09407-12404-000	CLAMP (L:140)	1	Rp19.500
22	36920-57M70-000	HARNESS ASSY, INSTRUMENT PANEL	1	Rp9.957.500
23	09481-10504-000	•FUSE (10A)	0	Rp12.500
24	09481-15504-000	•FUSE (15A)	0	Rp13.000
25	09481-20504-000	•FUSE (20A)	0	Rp14.500
26	09481-30403-000	•FUSE (30A)	1	Rp41.000
27	38860-76F01-000 SUB: 38860B76F01N000	•RELAY, HORN	1	Rp47.000
28	36717-76J11-000	•COVER, FUSE BOX	1	Rp93.500
29	01550-0612B-000	SCREW	1	Rp16.500
30	36603-57MC0-000	HARNESS ASSY, FLOOR	1	Rp6.320.500
31	09115-06005-000	BOLT (6X16)	1	Rp14.000
32	36930M82000-000 SUB: 36930M82010-000	COVER, FLOOR HARNESS	2	Rp6.500
33	09407-18402-000 SUB: 09407B18402N000	CLAMP (L:165)	1	Rp8.000
34	36651-76J10-000	BRACKET, HARNESS CONNECTOR	1	Rp115.500
35	09403-20307-000	CLAMP	1	Rp15.000
36	36658-76J00-000	WIRE,4WD MOTOR	1	Rp510.000
37	36640-81A00-000	HARNESS ASSY, REAR	1	Rp294.500
38	36840-61L10-000	WIRE, FRAME	1	Rp1.370.000
39	36843-81A71-000	WIRE, BUMPER	1	Rp950.000
40	DISCONTINUE SUB: 09404B06433N000	CLAMP (L:80)	2	-
41	03541-0512B-000 SUB: 03541B0512BN000	SCREW	5	Rp4.000
42	36650-76JH2-000	HARNESS ASSY, ENGINE	1	Rp8.862.000
43	36739-50J00-000	•FUSE, BATTERY	1	Rp131.500
44	36694-50J01-000	COVER, BATTERY TERMINAL	1	Rp98.000
45	01550-0816A-000 SUB: 01550B0816AN000	BOLT	1	Rp6.000
46	36995-81A30-000	BRACKET, INJECTION	1	Rp91.500
47	DISCONTINUE SUB: 01550B0612AN000	BOLT	1	-
48	36995-81A20-000	CLAMP, OIL PRESSURE SWITCH	1	Rp58.500
49	DISCONTINUE SUB: 01550B0612AN000	BOLT	1	-
50	36845-81A02-000	WIRE, BACK DOOR	1	Rp1.391.500
51	09407-05403-000	CLAMP (L:88)	0	Rp13.000
52	36820-76J00-000	WIRE, ROOM LAMP	1	Rp392.500
53	36756-76JE0-000	WIRE, DOOR MAIN	1	Rp1.310.000
