ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSION FIG.408A FRONT STABILIZER FIG.410A FRONT DRIVE SHAFT FIG.418A FRONT SUSPENSION FRAME FIG.430A REAR SUSPENSION FIG.449B ROAD WHEEL/TIRE (W_ALM_WL)FIG.451B STEERING WHEEL (W_AUDIO SWITCH)FIG.453A STEERING COLUMN FIG.480A STEERING UNIT FIG.490A PEDAL/PEDAL BRACKET FIG.500A BRAKE MASTER CYLINDER FIG.503A BRAKE PIPING FIG.510A ANTI LOCK BRAKE SYSTEM (W_ABS)FIG.520A FRONT WHEEL BRAKE FIG.530A REAR WHEEL BRAKE FIG.542A PARKING BRAKE

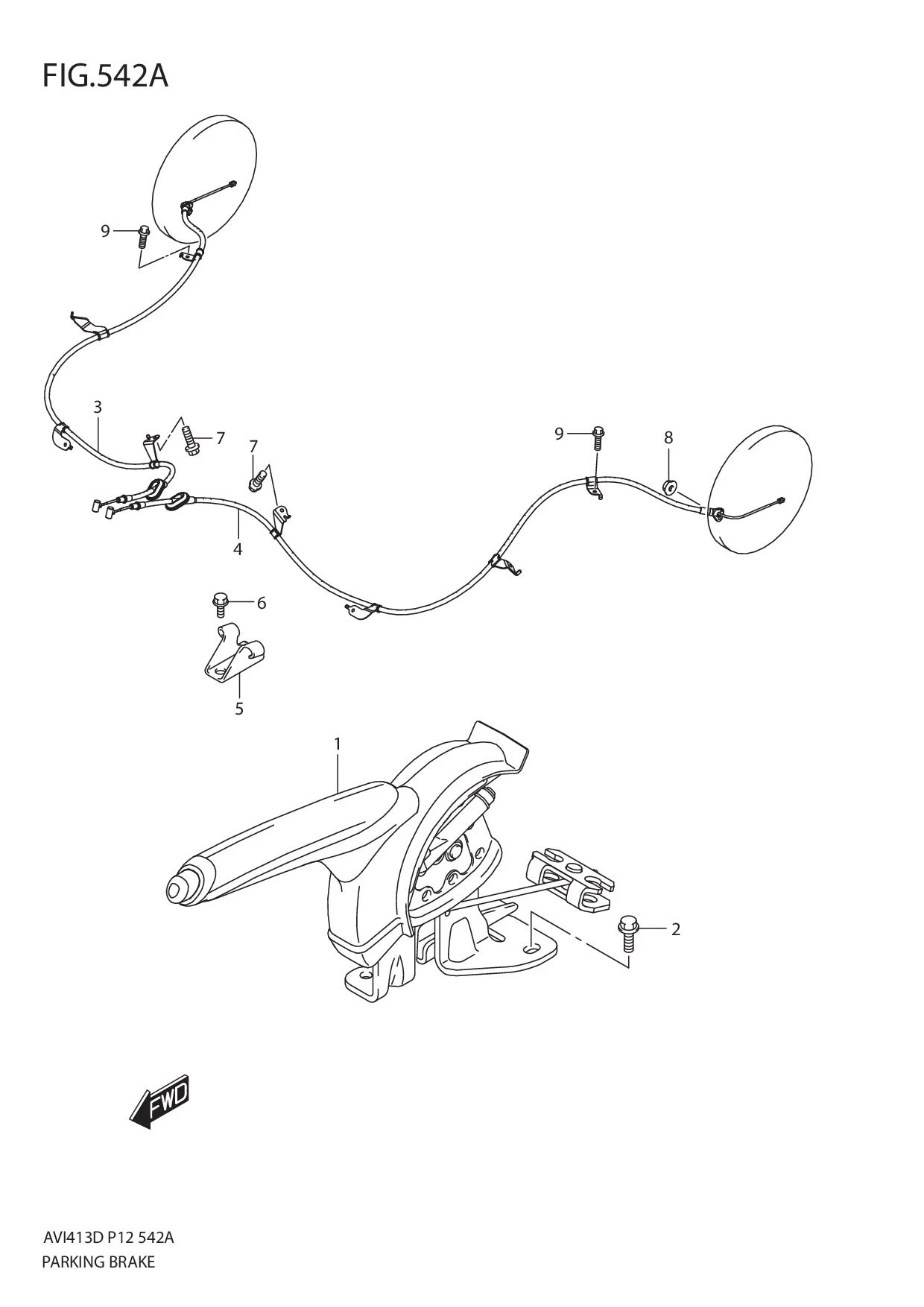

FIG.542A PARKING BRAKE

FIG.542A PARKING BRAKE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	54100-77M00-V6N SUB: 54100B77M00NV6N	LEVER ASSY,PARKING BRAKE (BEIGE)	1	Rp360.000	GL,GLX
2	01550-0816A-000 SUB: 01550B0816AN000	BOLT	2	Rp6.000
3	54401-77M00-000 SUB: 54401B77M00N000	CABLE,PARKING BRAKE RH	1	Rp165.500
4	54402-77M00-000 SUB: 54402B77M00N000	CABLE,PARKING BRAKE LH	1	Rp165.500
5	54495-77M00-000 SUB: 54495B77M00N000	BRAKE,PARKING CABLE	1	Rp23.500
6	01550-0816A-000 SUB: 01550B0816AN000	BOLT	2	Rp6.000
7	02162-0612A-000	SCREW	6	Rp11.000
8	08316-1006A-000	NUT	2	Rp2.000
9	02162-0616A-000	SCREW	2	Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
