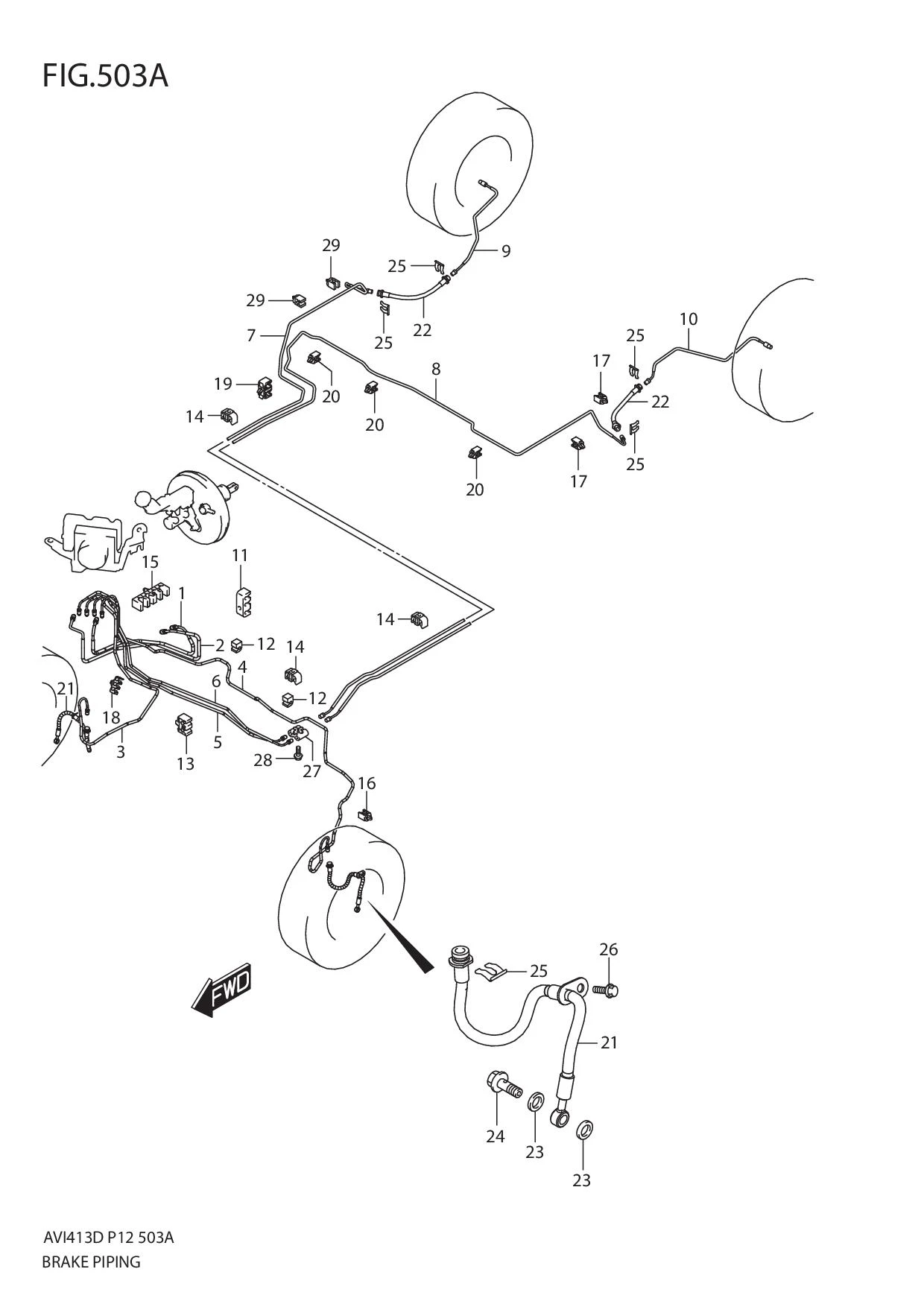

FIG.503A BRAKE PIPING

FIG.503A BRAKE PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 51410M79M01-000 PIPE,MA PRI TO HU 1 Rp65.500
2 51420M79M01-000 PIPE,MA SEC TO HU 1 Rp68.000
3 51430M79M00-000 PIPE,HU TO FR BRAKE HOSE RH 1 Rp80.000
4 51440M79M01-000 PIPE,HU TO FR BRAKE HOSE LH 1 Rp145.500
5 51450M79M00-000 PIPE,HU TO JOINT RH 1 Rp96.500
6 51460M79M00-000 PIPE,HU TO JOINT LH 1 Rp96.500
7 51470M60M01-000 PIPE,JOINT TO RR BK HOSE RH 1 Rp118.500
8 51480M60M01-000 PIPE,JOINT TO RR BK HOSE LH 1 Rp164.500
9 51510M60M01-000 PIPE,RR BK HOSE TO RR W/C RH 1 Rp48.500
10 51520M60M01-000 PIPE,RR BK HOSE TO RR W/C LH 1 Rp48.500
11 51751M74L00-000 CLAMP,BRAKE PIPE 3 1 Rp13.500
12 DISCONTINUE
SUB: 51752M70F00-000		 CLAMP,BRAKE PIPE DASH 1 2 -
13 51751M75J00-000 CLAMP,BRAKE PIPE SIDE MEMBER 1 Rp10.500
14 51751M75J00-000 CLAMP,BRAKE PIPE MAIN FL 3 Rp10.500
15 51753M74L00-000 CLAMP,BRAKE PIPE 4 1 Rp8.000
16 51761M60M20-000 CLAMP,BRAKE PIPE SIDE MEMBER 1 Rp5.500
17 51761M60M00-000 CLAMP,BRAKE PIPE RR SIDE 2 Rp5.500
18 51761-77M20-000
SUB: 51761B77M20N000		 CLAMP,BRAKE PIPE SIDE MEMBER 1 Rp6.500
19 51761M55K00-000 CLAMP,BRAKE PIPE REAR FL 1 Rp13.500
20 51761M60M00-000 CLAMP,BRAKE PIPE REAR FL 3 Rp5.500
21 51550M60M01-000 HOSE,FR BRAKE FLEXIBLE 2 Rp257.500
22 51570M55K00-000 HOSE,RR BRAKE FLEXIBLE 2 Rp103.500
23 51562M55K00-000 WASHER 4 Rp8.500
24 51561M55K00-000 BOLT,UNION 2 Rp8.500
25 09383M13004-000 E-RING 6 Rp7.000
26 01551-0816C-000 BOLT 2 Rp13.500
27 51630M70F00-000 JOINT,BRAKE 4 WAY 1 Rp122.000
28 02162-0625A-000 BOLT 1 Rp3.500
29 51761M60M20-000 CLAMP,BRAKE PIPE RR SIDE 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
