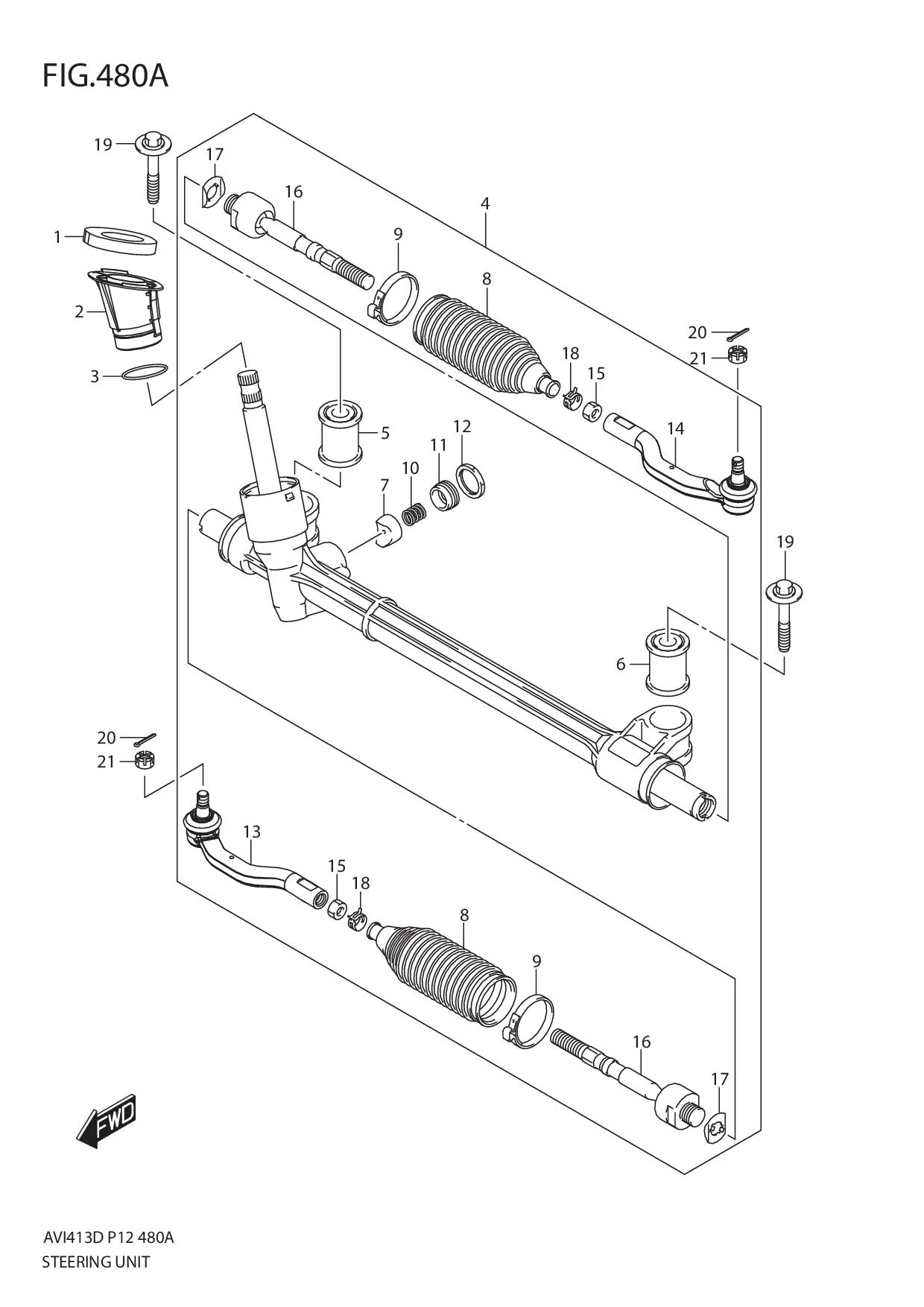

FIG.480A STEERING UNIT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	48451-68L00-000	PACKING,STEERING GEAR	1	Rp65.000
2	48452-68L00-000	COVER,STEERING GEAR RH	1	Rp91.500
3	09280-46002-000	O RING (D:2.4,ID:45.7)	1	Rp72.500
4-1	48500M74L13-000 SUB: 48500M74L03-000	BOX ASSY,STEERING GEAR	1	Rp9.154.500	I.D.48500M74L03
4-2	48500M74L13-000 SUB: 48500M74L10-000	BOX ASSY,STEERING GEAR	1	Rp9.154.500	I.D.48500M74L10
5-1	48525M74L00-000	•MOUNT,RH	1	Rp106.500	I.D.48500M74L03
5-2	48525M74L00-000 SUB: 48525M74L20-000	•MOUNT,RH	1	Rp106.500	I.D.48500M74L10
6-1	48525M74L70-000 SUB: 48525M74L50-000	•MOUNT,LH	1	Rp104.500	I.D.48500M74L03
6-2	48525M74L70-000	•MOUNT,LH	1	Rp104.500	I.D.48500M74L10
7-1	48534M74L00-000	•YOKE	1	Rp283.000	I.D.48500M74L03
7-2	48534M79M00-000 SUB: 48534M74L10-000	•YOKE	1	Rp121.500	I.D.48500M74L10
8-1	48571M74L00-000	•BELLOWS	2	Rp351.000	I.D.48500M74L03
8-2	48571M74L10-000	•BELLOWS	2	Rp54.000	I.D.48500M74L10
9-1	48575M74L00-000	•CLAMP	2	Rp57.000	I.D.48500M74L03
9-2	48575M74L10-000	•CLAMP	2	Rp15.000	I.D.48500M74L10
10-1	48591M74L00-000	•SPRING	1	Rp9.500	I.D.48500M74L03
10-2	48591M74L10-000	•SPRING	1	Rp20.500	I.D.48500M74L10
11-2	48592M74L10-000	•PLUG	1	Rp37.000	I.D.48500M74L10
11-1	48592M74L00-000	•PLUG	1	Rp54.000	I.D.48500M74L03
12-1	48593M74L00-000	•NUT	1	Rp30.000	I.D.48500M74L03
12-2	48593M74L10-000	•NUT	1	Rp18.500	I.D.48500M74L10
13-1	48810M74L00-000	•END,STEERING TIE ROD RH	1	Rp428.000	I.D.48500M74L03
13-2	48810M74L10-000	•END,STEERING TIE ROD RH	1	Rp223.500	I.D.48500M74L10
14-1	48820M74L00-000	•END,STEERING TIE ROD LH	1	Rp428.000	I.D.48500M74L03
14-2	48820M74L10-000	•END,STEERING TIE ROD LH	1	Rp223.500	I.D.48500M74L10
15-1	48817M74L00-000	•NUT	2	Rp18.500	I.D.48500M74L03
15-2	48817M74L10-000	•NUT	2	Rp5.500	I.D.48500M74L10
16-1	48830M74L00-000	•TIE ROD	2	Rp290.500	I.D.48500M74L03
16-2	48830M74L10-000	•TIE ROD	2	Rp176.000	I.D.48500M74L10
17-1	48841M74L00-000	•WASHER	2	Rp17.500	I.D.48500M74L03
17-2	48841M79M00-000 SUB: 48841M74L10-000	•WASHER	2	Rp6.500	I.D.48500M74L10
18-1	48871M74L00-000	•CLIP	2	Rp19.000	I.D.48500M74L03
18-2	48871M74L10-000	•CLIP	2	Rp11.500	I.D.48500M74L10
19	09116-12010-000	BOLT (12X77)	2	Rp60.000
20	04111-3020A-000	PIN	2	Rp2.500
21	08314-40123-000 SUB: 08314-40123L000	NUT	2	Rp4.500
