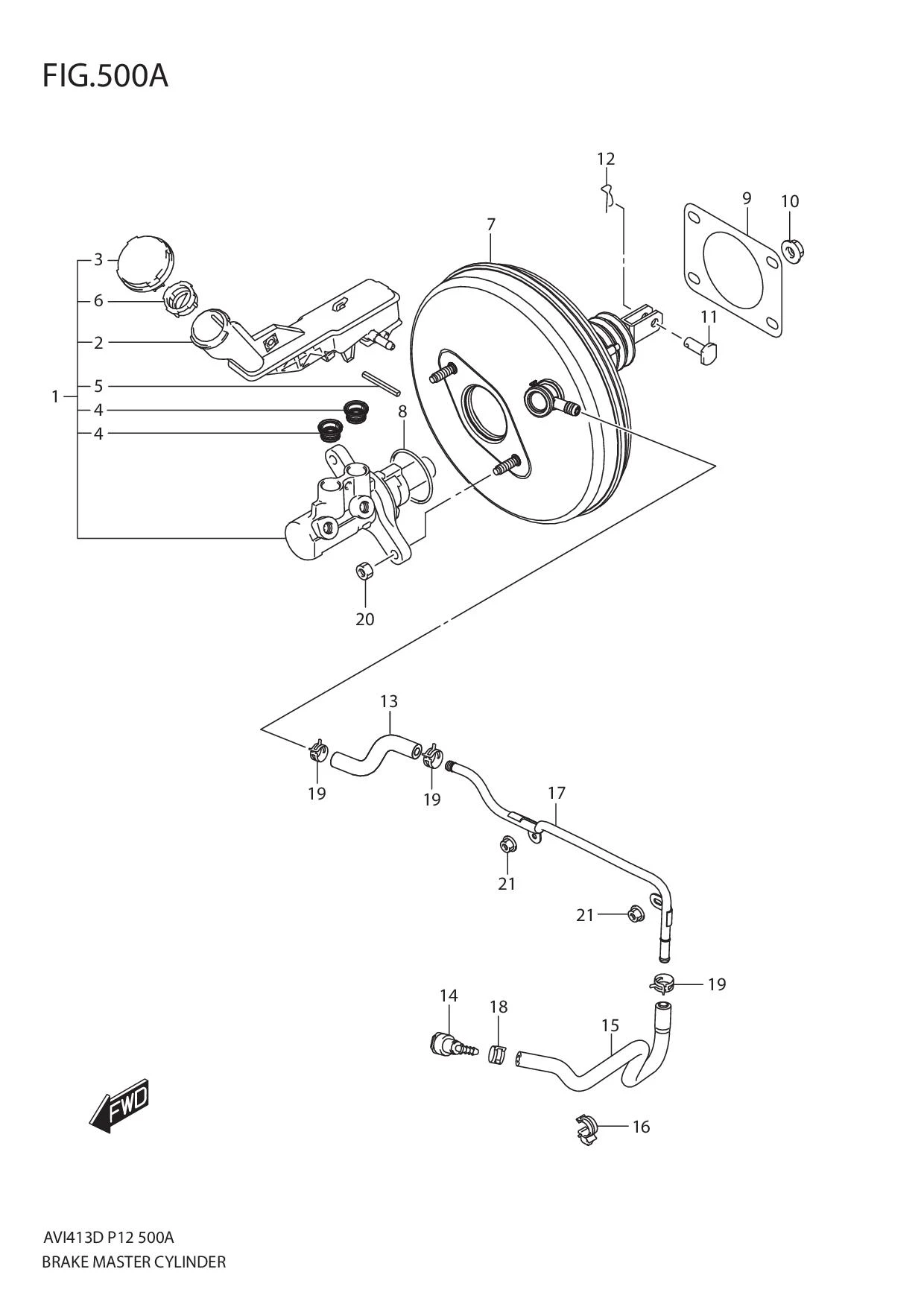

FIG.500A BRAKE MASTER CYLINDER

FIG.500A BRAKE MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 51100M60M20-000 CYLINDER ASSY,BRAKE MASTER 1 Rp2.193.000
2 51200M60M20-000 •RESERVOIR S/ASSY,OIL 1 Rp426.500
3 51220M60M00-000 •CAP,RESERVOIR 1 Rp41.000
4 51232M74L00-000 •GROMMET,RSVR CONNECTOR 2 Rp37.500
5 51233M65J00-000 •SPRING PIN 1 Rp29.500
6 51240M67LA0-000 •FILTER 1 Rp51.500
7 51300M74LA0-000 BOOSTER ASSY,BRAKE MASTER 1 Rp2.075.000
8 51311M68K00-000 O RING 1 Rp10.500
9 51132M79G10-000
SUB: 51132M79G00-000		 PACKING,BRAKE MASTER CYLINDER 1 Rp5.500
10 09159-08127-000
SUB: 09159M08153-000		 NUT 4 Rp11.000
11 51120M60M00-000 PIN,BRAKE MASTER CYLINDER 1 Rp10.500
12 09385M08L01-000 CLIP 1 Rp9.000
13 51011M74L10-000 HOSE,VACUUM BSTR TO PUMP 1 Rp24.000
14 51013M83E00-000 CONNECTOR,BRAKE VACUUM 1 Rp70.000
15 51021M60M11-000 HOSE,VACUUM PIPE TO PUMP 1 Rp45.000
16 51051M75J00-000 CLAMP 1 Rp6.500
17 51870M74L00-000 PIPE,BRAKE VACUUM 1 Rp64.000
18 09401M14411-000 CLAMP 1 Rp6.500
19 09401-15404-000
SUB: 09401M15411-000		 CLAMP 3 Rp14.500
20 08316-1006A-000 NUT 2 Rp2.000
21 08361-1508A-000 NUT 2 Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
