ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSION FIG.408A FRONT STABILIZER FIG.410A FRONT DRIVE SHAFT FIG.418A FRONT SUSPENSION FRAME FIG.430A REAR SUSPENSION FIG.449B ROAD WHEEL/TIRE (W_ALM_WL)FIG.451B STEERING WHEEL (W_AUDIO SWITCH)FIG.453A STEERING COLUMN FIG.480A STEERING UNIT FIG.490A PEDAL/PEDAL BRACKET FIG.500A BRAKE MASTER CYLINDER FIG.503A BRAKE PIPING FIG.510A ANTI LOCK BRAKE SYSTEM (W_ABS)FIG.520A FRONT WHEEL BRAKE FIG.530A REAR WHEEL BRAKE FIG.542A PARKING BRAKE

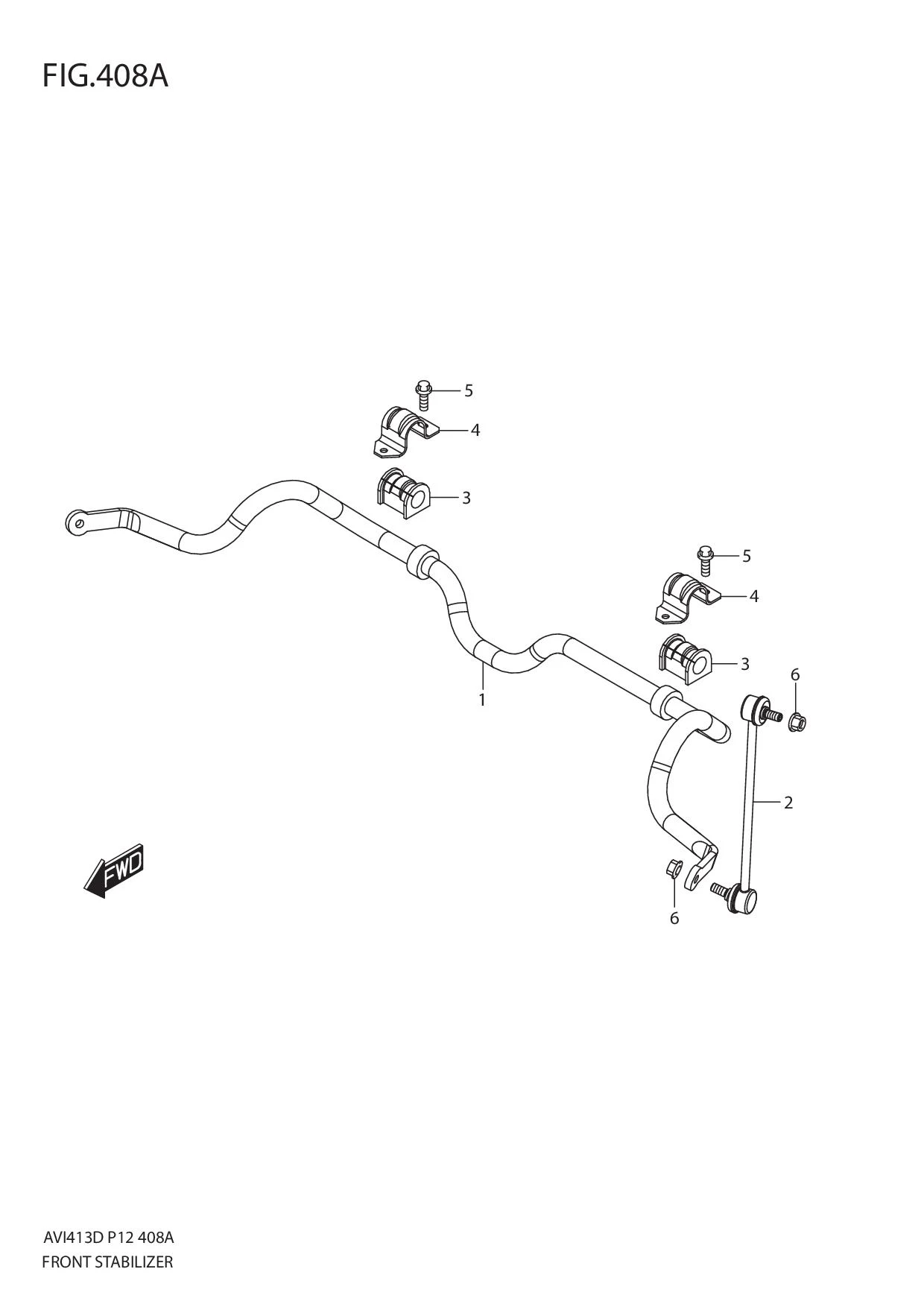

FIG.408A FRONT STABILIZER

FIG.408A FRONT STABILIZER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	42311-58M00-000 SUB: 42311B58M00N000	BAR,FRONT STABILIZER	1	Rp826.000
2	42420-77M01-000 SUB: 42420-77M00-000	JOINT,FR STABILIZER BAR	2	Rp344.500
3	42431-77M00-000 SUB: 42431B77M00N000	MOUNT,FRONT STABILIZER BAR	2	Rp20.000
4	42441-77M00-000 SUB: 42441B77M00N000	BRACKET,FR STABILIZER MOUNT	2	Rp47.500
5	09117-08101-000	BOLT FR STABILIZER MOUNT	4	Rp26.500
6	08316-1010A-000 SUB: 08316B1010AN000	NUT	4	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
